MACHINE# 12607

SPECIFICATIONS:

Capacity: ........................................... 3/4" - 7" O.D.
Maximum Wall Thickness: ..................................... 1-1/2"
Maximum Solid Bar Diameter: ..................................... 3"
Maximum Cutting Length: ........................................ 20'
Spindle Speeds: ....................................... 59 - 912 RPM
Motor: ................................................ 7.5 HP, 3/60

Overall Dimensions (Approx.):
- Machine: ..................................... 128" x 90" x 90" H
- Bar Feed: .................................... 305" x 83" x 65" H

Weight (Est.): .......................................... 4,725 Lbs.

Equipped With:

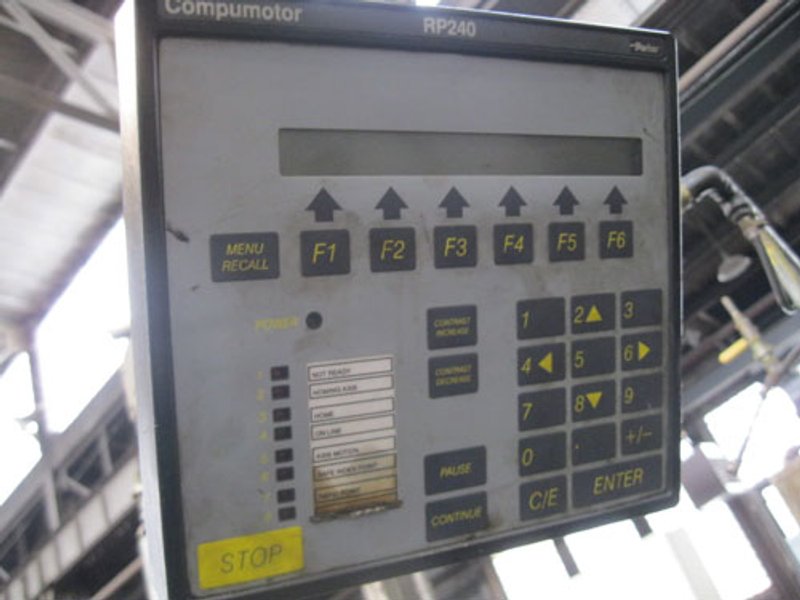

Parker-Hannifin "CompuMotor" RP240 Controller
Automatic Bar Feed
Micrometer Stock Stop
Double Cross Slides
Double Air Cylinders
Large Quantity of Collets and Guide Tubes
Coolant Pump and Piping

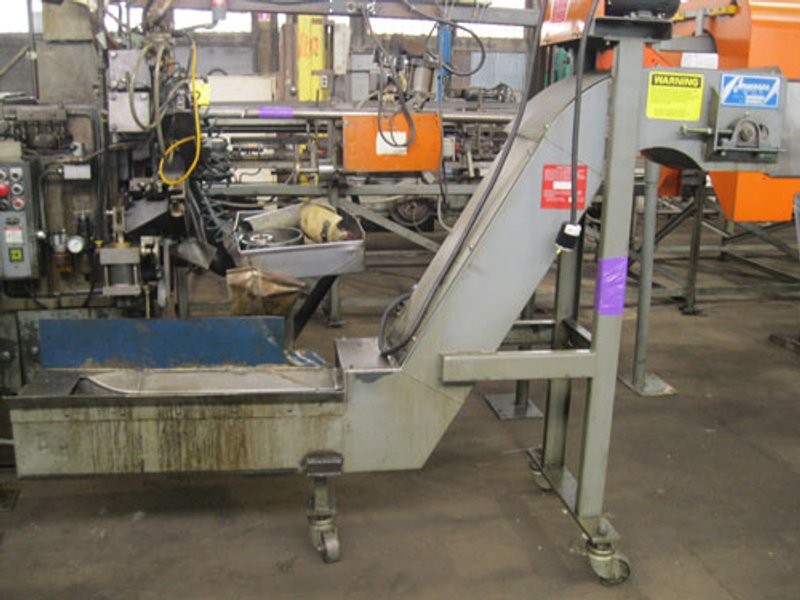

Jorgenson Chip Conveyor
Pushbutton Controls for: On; Test; Start; E-Stop; Stop
Selector Switches for: Feeder On/Off; Chamfer On/Off; 24" Over/Under
Compumotor 6000 Series Software Reference Guide

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
