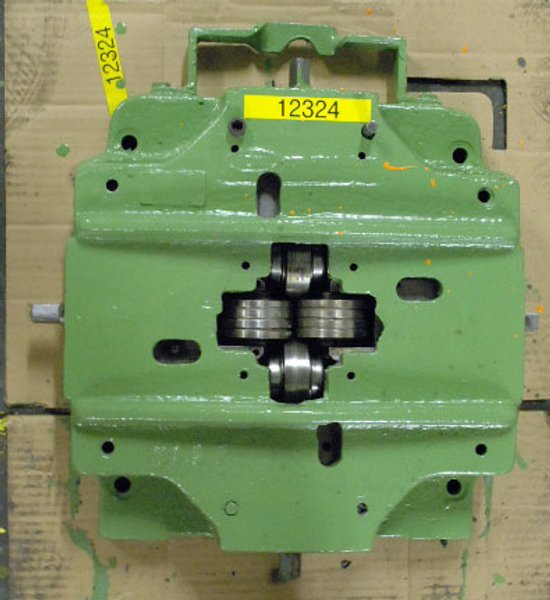

MACHINE #12324

SPECIFICATIONS

-MANUFACTURER: FENN MANUFACTURING CO.

-MODEL: 3P

-TYPE: HIGH SPEED PLAIN TYPE

-CAPACITY: FENN DOES NOT LIST A CAPACITY FOR THEIR "P"
TYPE TURKSHEADS BECAUSE THEY ARE GENERALLY USED
FOR SHAPES. CAPACITY LISTED BELOW IS APPROXIMATED
FOR MILD STEEL FOR REFERENCE PURPOSES ONLY.

-APPROXIMATE MAX SQUARE: .080" (2.03mm)

-MAXIMUM ROLL OPENING: 1/2" X 1 1/8" (12.7mm X 28.6mm)

-ROLL SIZE (CATALOG DIMENSIONS)
-VERTICAL: 2 1/2" (63.5mm) DIA X 1 1/8" (28.6mm) WIDE
-HORIZONTAL: 2 1/2" (63.5mm) DIA X 9/16" (14.3mm) WIDE


-ACTUAL APPROXIMATE ROLL SIZES IN MACHINE:
-VERTICAL: 2 1/4" (57.2mm) DIA X 1 1/8" (28.6mm) WIDE
-HORIZONTAL: 2" (50.8mm) DIA X 3/4" (19.1mm) WIDE


APPROX WEIGHT: 160 POUNDS (72.7 Kg)

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
