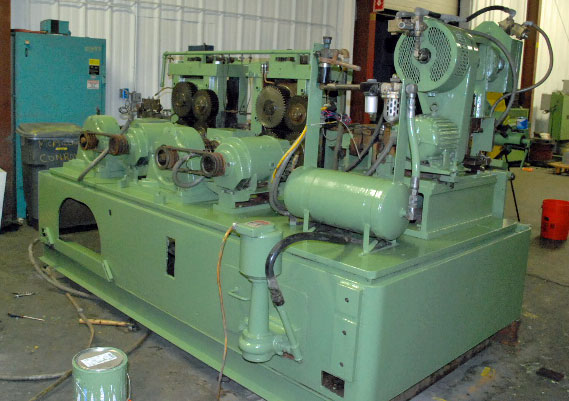

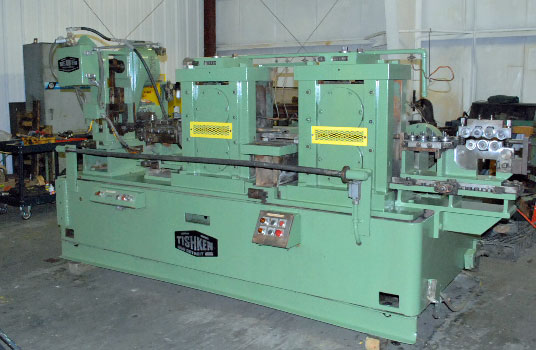

MACHINE# 12450

GENERAL SPECIFICATIONS:
MANUFACTURER: TISHKEN MANUFACTURING
MODEL: STR-FLS-2
TYPE MILL: 2 STAND TANDEM WIRE FLATTENING,
STRAIGHTENING AND CUT-OFF LINE

CAPACITY: #8 OR #9 GAUGE SPRING WIRE
(.162" - .148") MAX. RANGE
ROLL SIZE: 11" DIAMETER x 4-1/2" FACE WIDTH

OVERALL DIMENSIONS
(MILL): 11' L-R x 6' F-B x 6' H
(CONTROLS): 4'6" L-R x 2'4" F-B x 7'6" H
(TABLE): 10'8" L-R x 1'6" F-B x 4' H

EQUIPPED WITH:

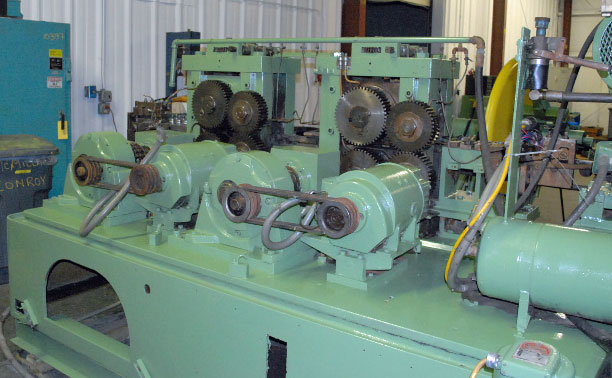

BELT DRIVEN INDIVIDUALLY DRIVEN STANDS

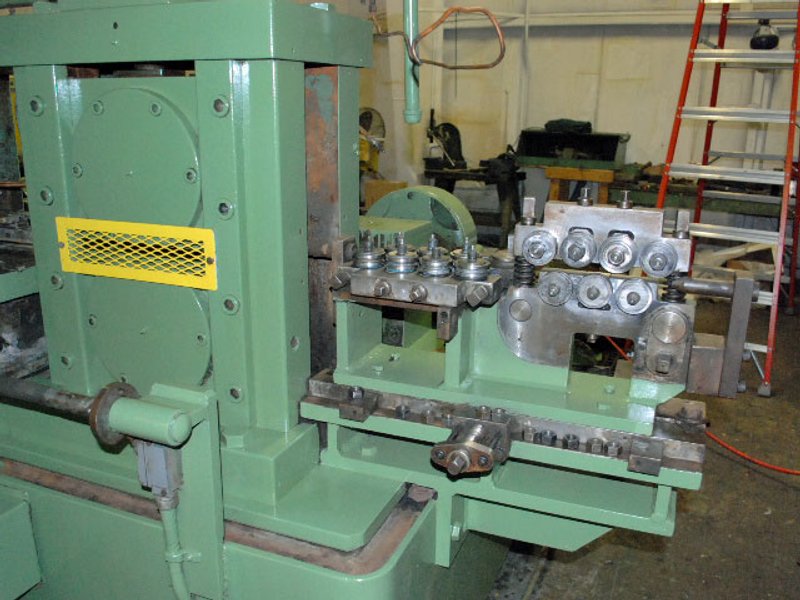

ENTRY 2 PLANE STRAIGHTENER, 4 OVER 3 ROLLS EACH PLANE
EDGE GUIDES
FIRST SET PINCH ROLLS WITH 5 ROLL STRAIGHTENER
SECOND SET EXIT PINCH ROLLS WITH 4 ROLL VERTICAL STRAIGHTENER
TISHKEN #PT-CO-1A AIR CLUTCH AUTOMATIC CUTOFF, S/N 18402-12-82
GUSHER COOLANT PUMP 1/4 HP, 220/440 VOLTS
MANUAL ROLL ADJUSTMENT
10 FT. RUNOUT TABLE
INDIVIDUAL VARIABLE SPEED, ALL CONTROLS RELIANCE

MOTOR GENERATOR SET:
- INPUT VOLTAGE 208/220/440 FULL LOAD AMPS 53.8 - 52/26
- OUTPUT VOLTAGE 240 DC, FULL LOAD AMPS 55
- (2) DC MOTORS: 5 HP, 240 V DC, 1750/2600 RPM WITH CONTROLS

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
