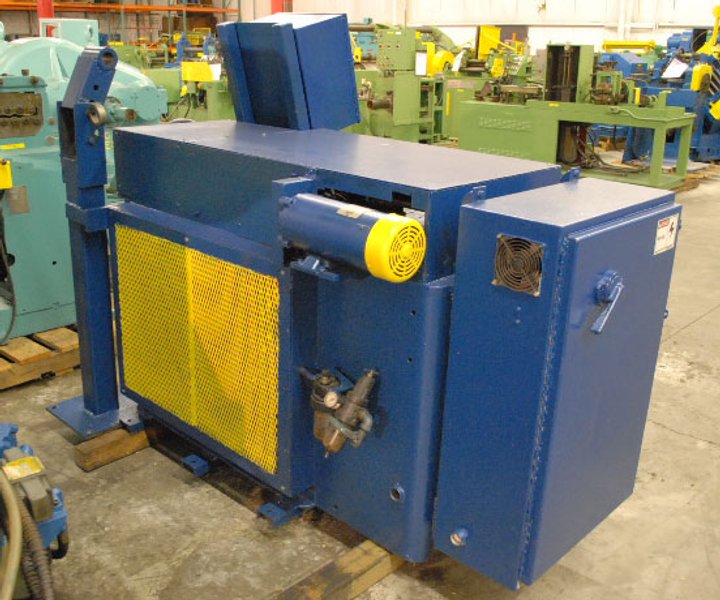

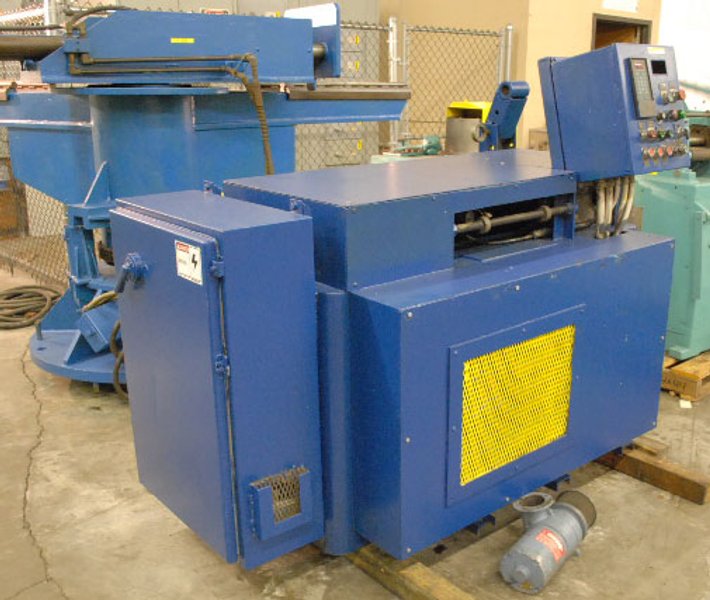

MACHINE #12334

SPECIFICATIONS

-MANUFACTURER: STANAT

-TYPE: TRAVERSIING TAKE UP REEL

-CAPACITY: APPROXIMATELY 1,000 LBS (454.5Kg)

-SPEED: VARIABLE UP TO APPROXIMATELY 500 FPM
(BASED ON DIAMETER OF DRIVING FLANGE)

-DRIVE MOTOR: 15 HP 1775 RPM VECTOR DUTY AC MOTOR
230/460 VOLT 3 PHASE 60 HERTZ

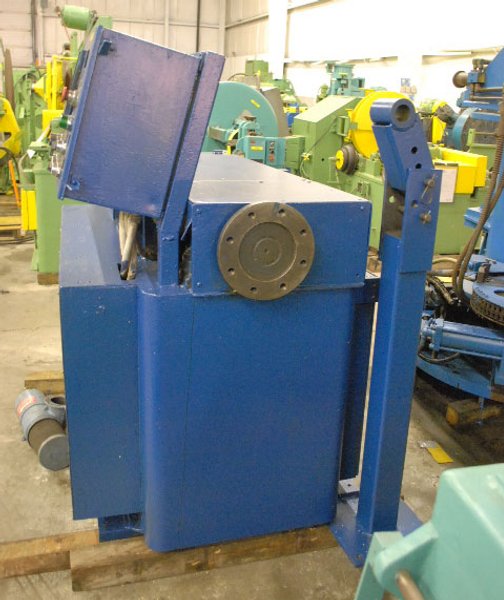

-DRIVING FLANGE SIZE: 10" (254mm) DIAMETER

NOTE: MACHINE INCLUDES MOUNTING BRACKET FOR GUIDE ROLL SETUP BUT CUSTOMER IS
TO SUPPLY GUIDE ROLL UNIT.

-TRAVERSE

-TYPE: BALL SCREW WITH LIMIT SWITCH TRIPS

-TRAVERSE STROKE: APPROXIMATELY 12" (305mm)

-TRAVERSE DRIVE MOTOR: 1 HP 1750 RPM 90 VOLT DC MOTOR

NOTE: CUSTOMER TO SUPPLY DRIVE FOR TRAVERSE DC DRIVE
MOTOR.

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
