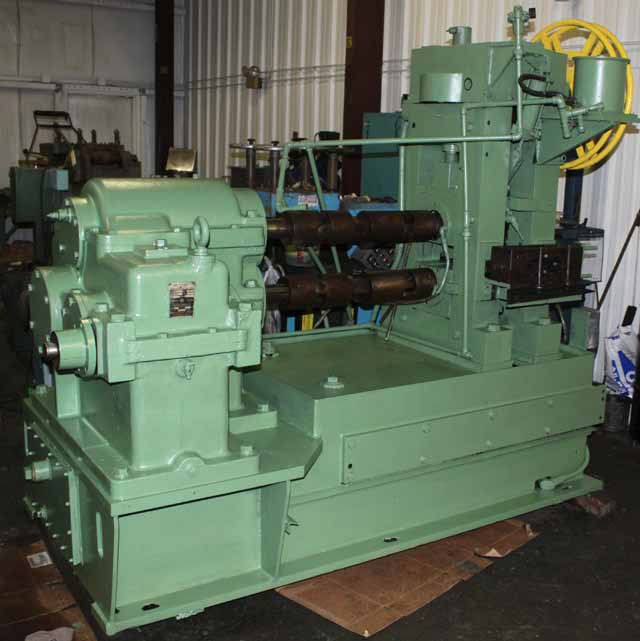

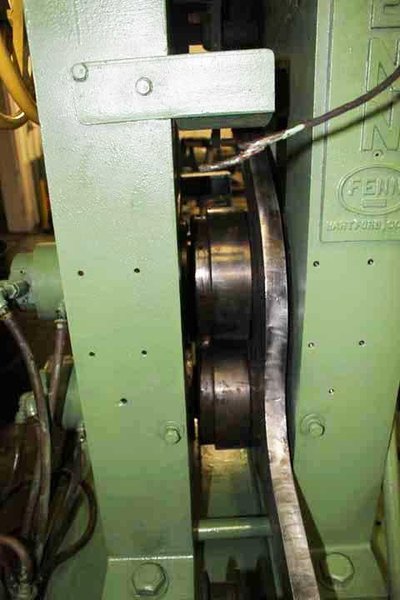

10" x 2", FENN 2 HI WIRE FLATTENING MILL, 75 HP DC, CARBIDE SHELL ROLLS (12009)

 10" (204mm) x 2 1/2" (63mm) FENN 2-HI WIRE FLATTENING MILL (12009)
 MACHINE #12009

 SPECIFICATIONS

  -MANUFACTURER:              FENN MANUFACTURING COMPANY (USA)
  -TYPE:                      2 HI WIRE FLATTENING ROLLING MILL
  -ROLLS
   -DIAMETER:                 10" (254mm)
   -ROLL FACE:                2-1/2" (63.5mm) WIDE CARBIDE SHELL INSERTS
                             MOUNTED ON 5" (127MM) WIDE STEEL ROLLS
 -ROLLS ARE WATER-COOLED
 -HOUSING COLUMN SIZE:        6"(152mm) X 6"(152mm)
 -WINDOW WIDTH:               10-5/8"(270mm)
  -BEARINGS                   FENN TYPE ROLLER BEARINGS
  -BEARING LUBE               FORCED OIL

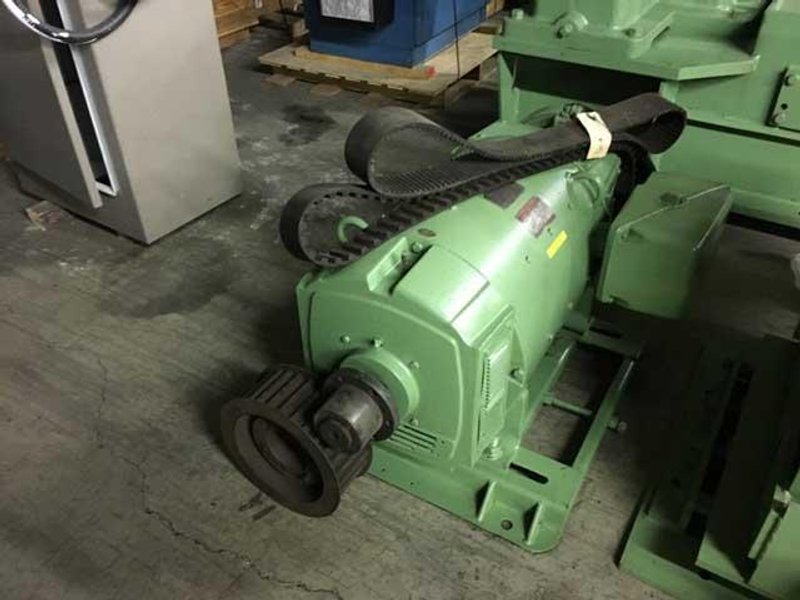

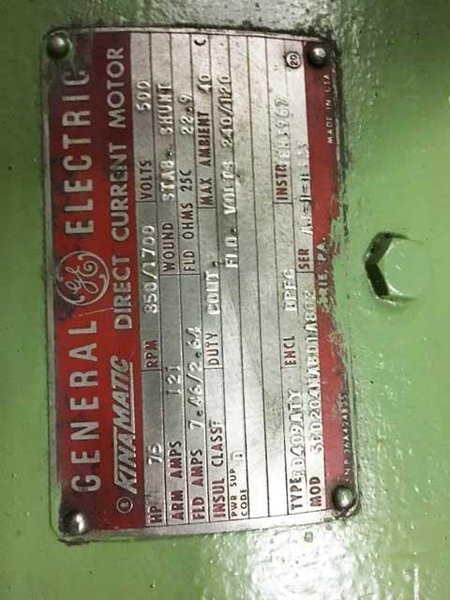

  -DRIVE MOTOR                75 HP DC General Electric KINAMATIC Direct
                              current Motor, 850/1700 RPM, 500 Volts

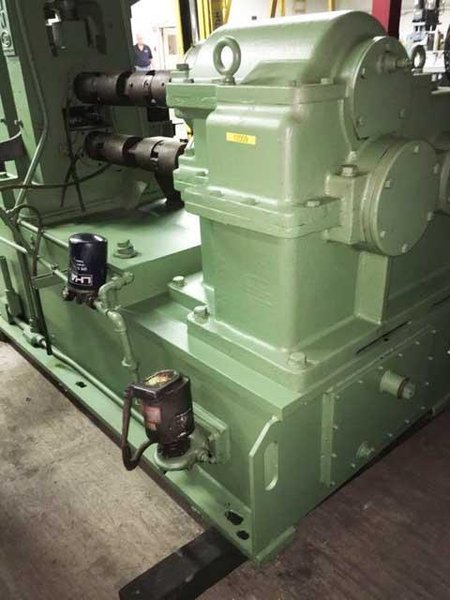

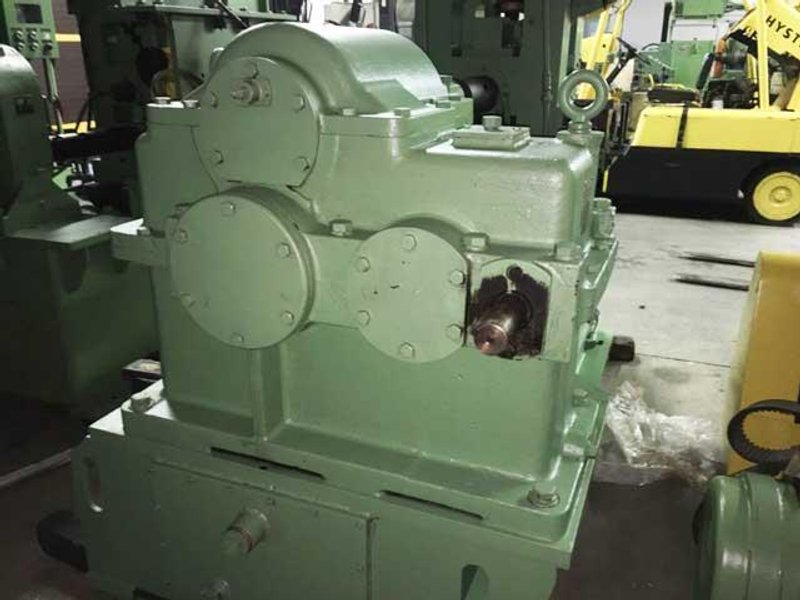

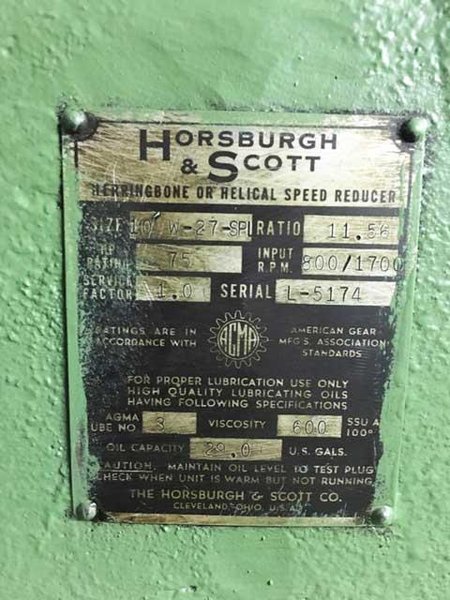

  -REDUCER                    PINION STAND/REDUCER
                              HORSBURGH & SCOTT SIZE 10 W-27-SPL, RATIO 11.56
                              HP RATING 75, SERVICE FACTOR 1.0, INPUT RPM
                              800/1700

  -SCREWDOWNS                 DUAL HANDWHEEL

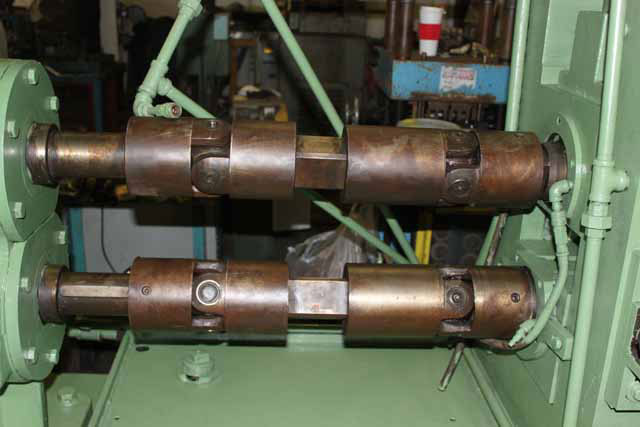

  -DRIVE JOINTS               SQUARE TYPE UNIVERSAL JOINTS

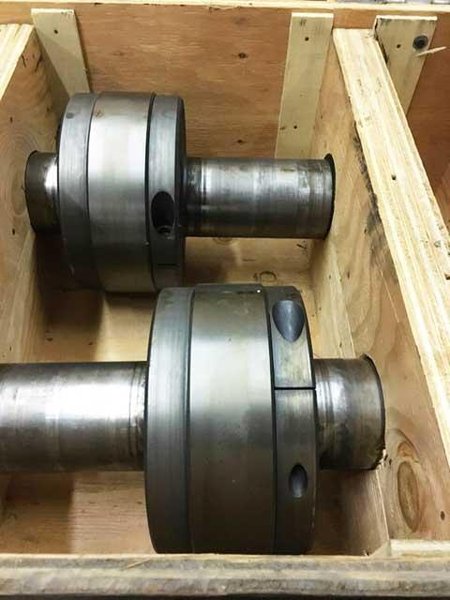

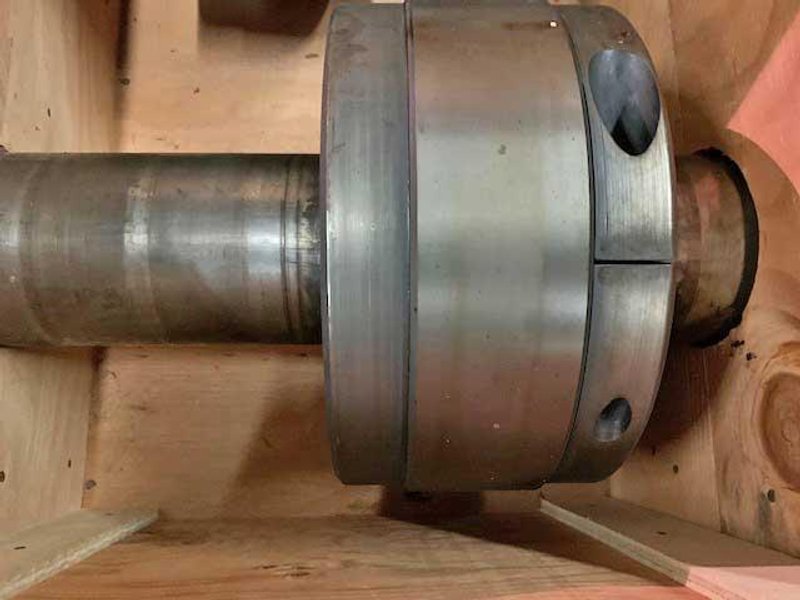

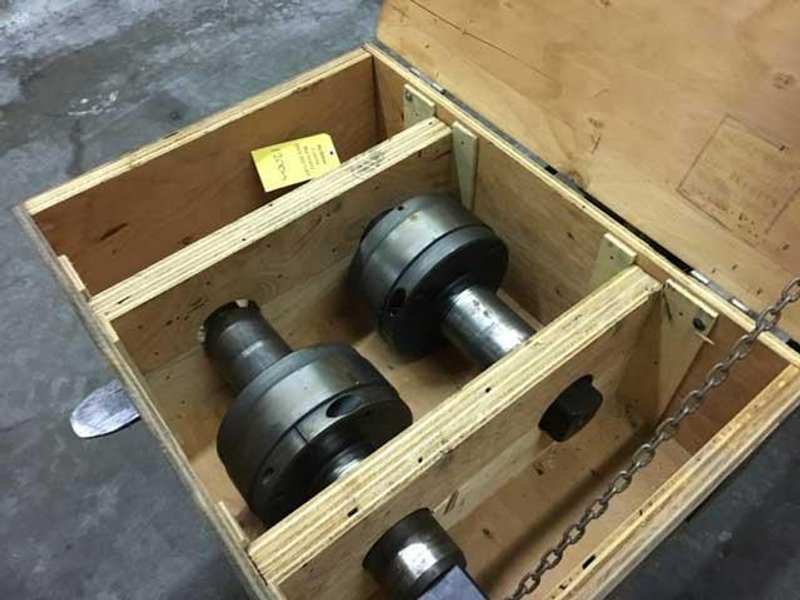

  -INCLUDES ONE SPARE SET OF SHELL CARBIDE ROLLS

 PURCHASER TO SUPPLY NEW ELECTRIC CONTROLS

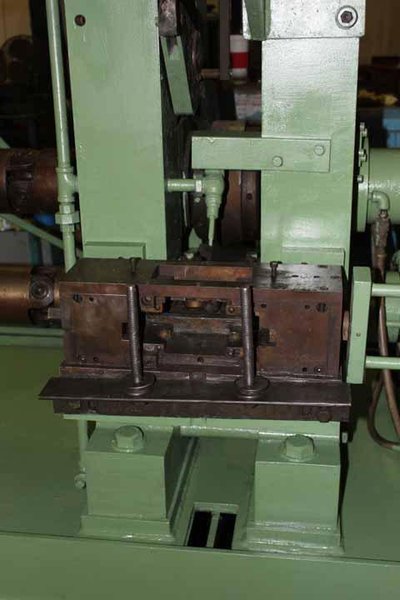

 NOTE: THE MILL IS EQUIPPED WITH AN EDGER BOX ON THE ENTRY SIDE BUT NO EDGER
 ROLLS OR ROLL BOX ASSEMBLIES. THIS MILL WAS ORIGINALLY PART OF A 3 STAND WIRE

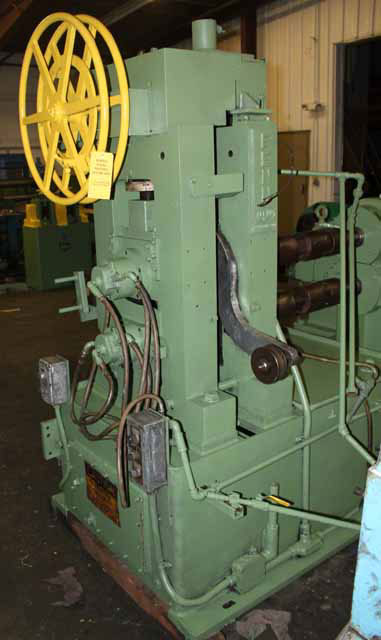

 FLATTENING LINE AND AS SUCH IT HAS A DANCER ARM MOUNTED TO THE MILL HOUSING
 THAT COULD BE USED AGAIN FOR A DANCER ROLL IF NEEDED.

 DIMENSIONS:

 -WIDTH:                      90" (2286mm)
 -DEPTH:                      102" (2590mm)
 -HEIGHT:                     90" (2286mm)

 **Temporary Specifications are Subject to Revisions**

 **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

  **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
