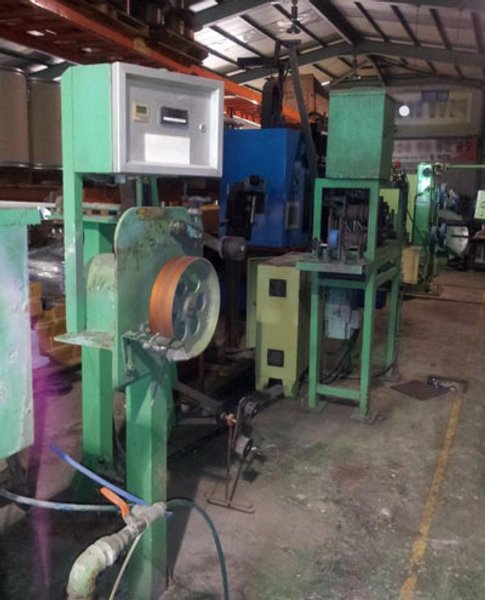

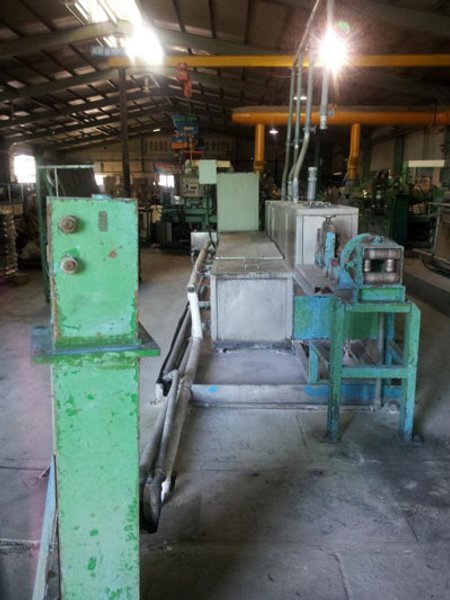

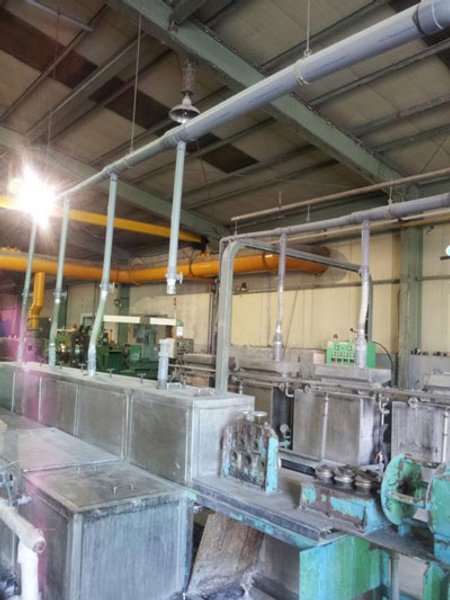

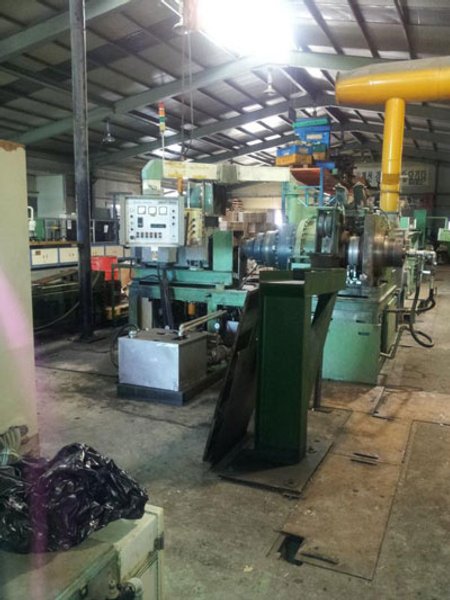

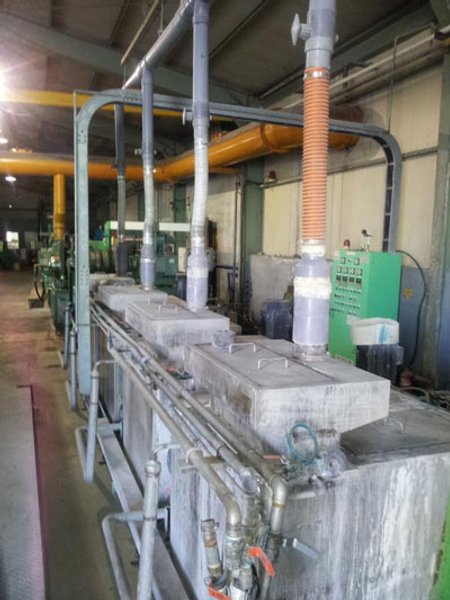

MACHINE# 12386 This Line was used to produce fin tubes in the air conditioning unit of automobiles. Products can also be used in coolant tubes in the home air conditioning units, copper channels, etc. The Line consists of: Aluminum rod pay-off Rod straightening machine Rod washing unit with alcalic (2 chambers) and water (2 chambers) Rod extrusion press Metalicon equipment (Zn coating) Water cooling and air dryer Accumulator Rewinder Air filler (protection for wound products on reel) Automatic tube cutting machines (Optional) Technical data: Washing unit Talk volume: Chamber 1 - 511L, Chamber 2,3,4 - 600L Washing type: High pressure spray type 10 ~ 15kg/cm2) NaOH: 20% Washing water PH: Less than 10 Extrusion press Manufacturer: Confex (UK, 1997) Motor ABB 140kW Wheel diameter 308mm SKD-61 Reduction ratio: 66.33:1 Brevini RPM 1161 ~ 2000] Oil pump 9L/Min Hydraulic line SC-Pump 0-500 475 ~ 500 bar Mechanical and technical specifications sheet Extrusion wheel diameter: 310mm(OD) Extrusion wheel material: AISI H13 tool steel Extrusion wheel speed: 0/18/30 rev/min Main drive motor type: DC infinitely variable Main drive motor power: 140KW Main drive motor speed: 0/1161/2000 rev/min Main drive motor armature: 420 volts Main drive motor: ABB 225L Main drive gear box type: 3 stage planetary Main drive gear box reduction ratio:66:1 nominal, 66.38:1 actual Main drive gear box lubrication: recirculating oil Gear box lubrication flow: 6 L/min Max continuous torque at wheel: 74 kNm Input coupling: Fenaflex coupling Main shaft preload (at 19000 psi/1310 bar):4 MN Top clamp preload (at 7250 psi/500 bar):0.61 MN Rear clamp preload (at 7250 psi/500 bar):2.26 MN Low pressure hydraulic system: 1000 psi/70 bar, flame resistant fluid Low pressure hydraulic flow rate: 7.5 L/min max Low pressure hydraulic fitted power:2.2 kW High pressure hydraulic system: 9140 psi / 630 bar max High pressure hydraulic pumps: air/hydraulic intensifiers Main bearing: Cylindrical roller type, full compliment Main bearing capacity(dynamic): 2.36 MN Main bearing lubrication: Recirculating oil Main bearing lubrication flow: 14 L/min Main bearing lubrication pressure:80 psi / 5.5 bar max Machine coolant: Recirculating water with corrosion inhibitor Machine coolant recirculating flow rate:75 L/min @ 6M head Feed stock diameter: Diameter 9.5mm rod (aluminum) Recommended product speed: 60 meters/min for multiport sections Maximum product size: Within 50mm diameter circle Air services (control): 80 psi/5.5 bar 1.0 m3/min peak Demand during shoe loading Electrical supply: 380 V 3 phase 60 Hz Rewinder New in 1997 Motor 3.3kW 1760 RPM Load: 300Kg max Also Available at an Additional Cost: Tube cutting machine (Optional - 8 ea) Manufacturer: Dae Myeong TMC (Korea, 2002) Each set of equipment consists of: Uncoiler unit Power feeder unit Straightener unit Digiscale unit Cut off unit Tube box unit **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER** |
