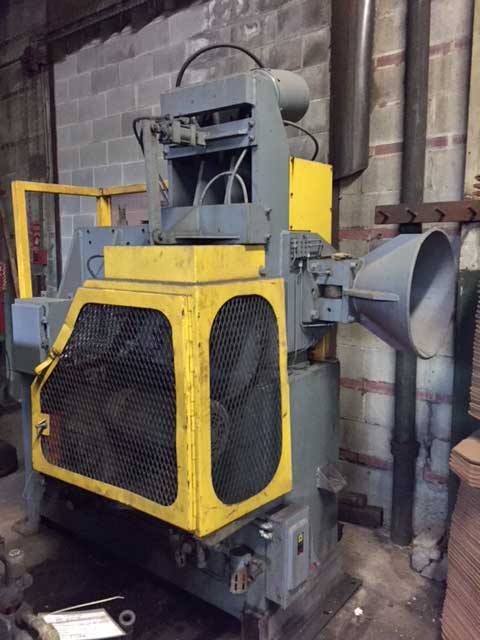

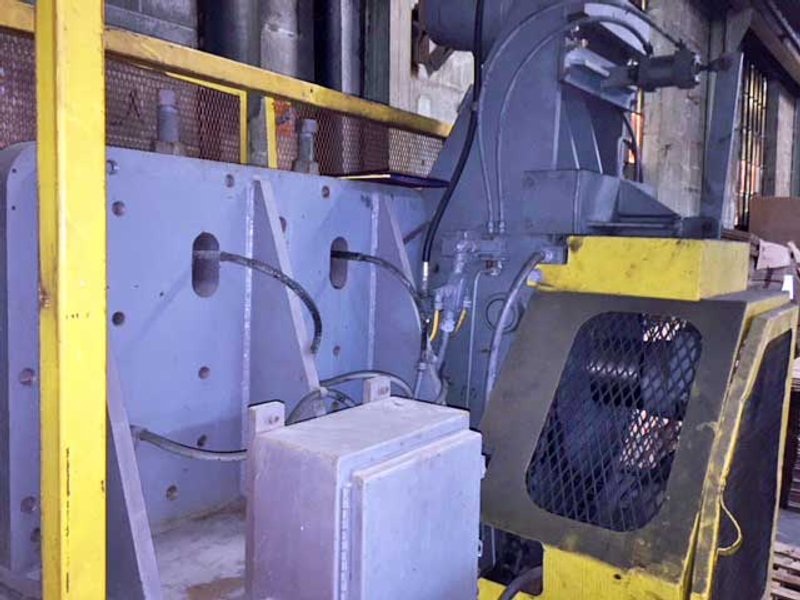

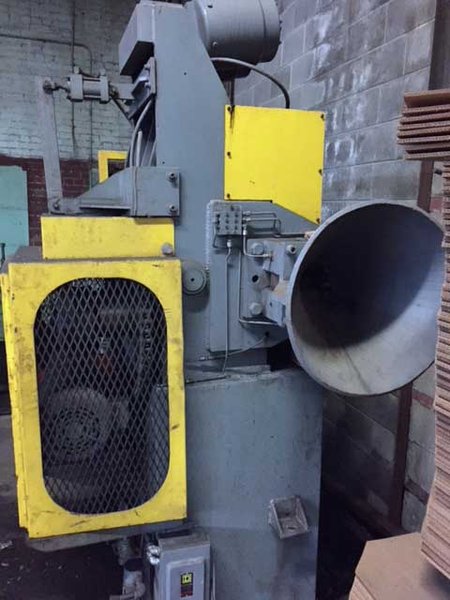

1 5/8"(41mm) FASTENER ENGR SB-1625 5 ROLL IN LINE WIRE/ROD
PRE-STR (13295)

MACHINE# 13295

SPECIFICATIONS:

MANUFACTURER:            FASTENER ENGINEERS, INC. (U.S.A.)
TYPE:                    5 ROLL IN LINE WIRE/ROD PRE-STRAIGHTENER
MODEL No.:               SB1625

CAPACITY:
 MAXIMUM DIAMETER ROD:   1 5/8" (41.275mm)
 MINIMUM DIAMETER ROD:   1" (25.4mm)
SINGLE PLANE

ENTRY PINCH ROLLS:
 ROLL DIAMETER:          12" (305mm)
 No. OF PINCH ROLLS:     2
 AXIS:                   HORIZONTAL
 No. OF ROLLS DRIVEN:    2
 ENTRY GUIDE BOX

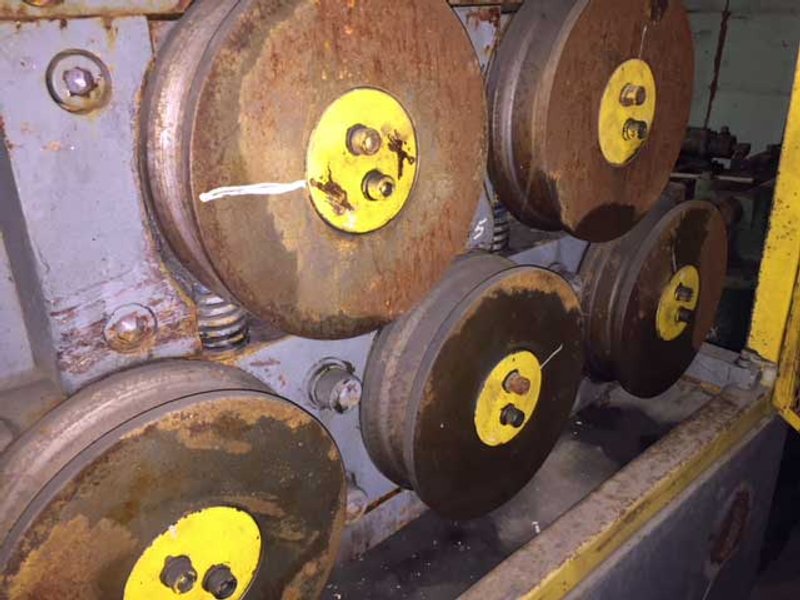

STRAIGHTENER ROLLS:
 ROLL DIAMETER:          11" (280mm)
 ROLL FACE WIDTH:        3" (76mm)
 No. OF ROLLS:           5 (2 OVER 3)
 AXIS:                   HORIZONTAL
 FEED ROLL DRIVE MOTOR:  5 HP
 DIRECTION OF TRAVEL:    LEFT TO RIGHT

PNEUMATIC ACTUATED REVERSE CLUTCH
FEED ROLL OVERRUNNING CLUTCH

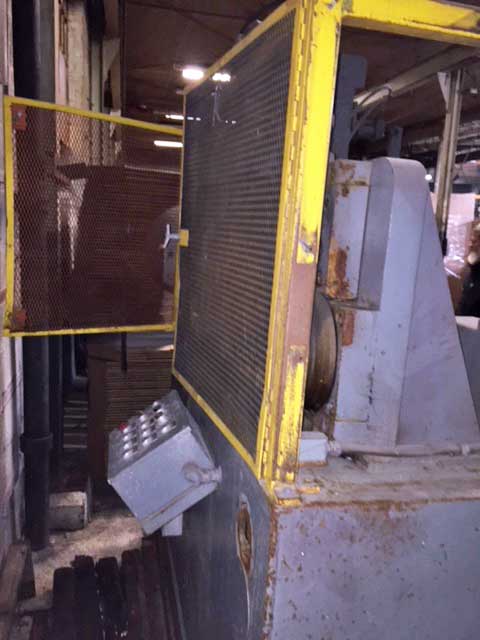

SAFETY GUARDS
HEAVY DUTY PRE-LUBRICATED SEALED BEARINGS
STRAIGHTENER ROLLS ARE INDIVIDUALLY ADJUSTABLE AND CAN ACCOMMODATE 1" TO

1-5/8" ROD WITHOUT A ROLL CHANGE.

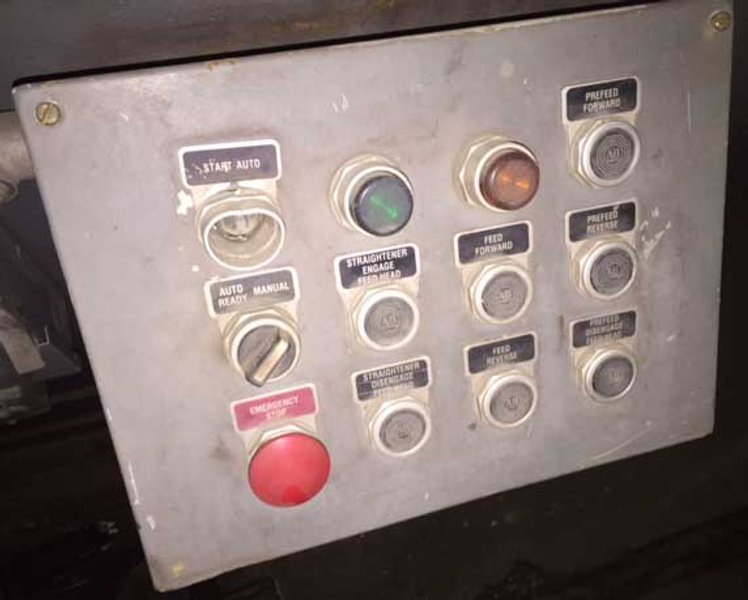

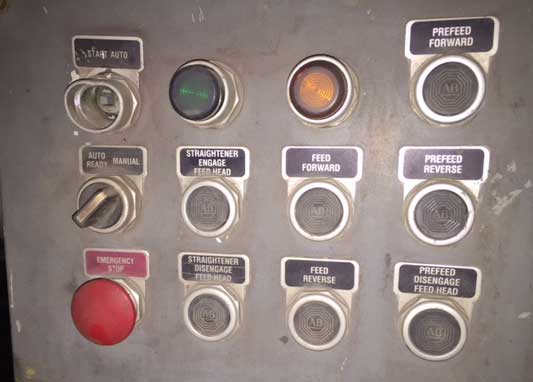

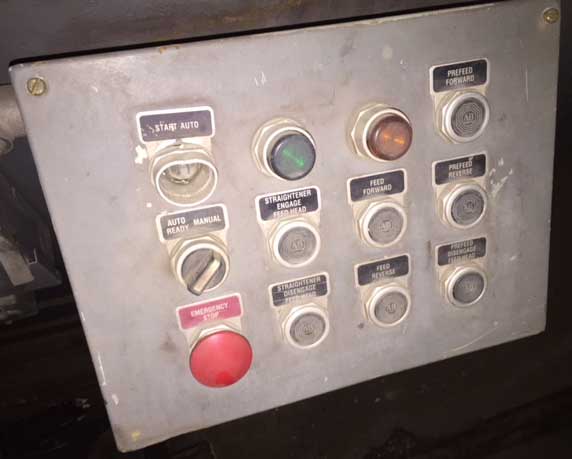

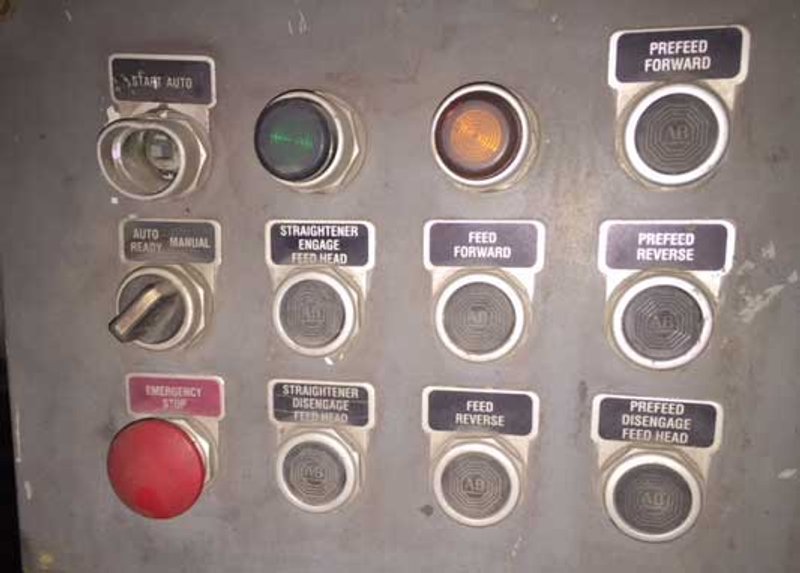

OPERATOR STATION WITH:
 FEED FORWARD-REVERSE
 PREFEED FORWARD-REVERSE
 DISENGAGE PREFEED HEAD
 STRAIGHTENER ENGAGE-DISENGAGE
 AUTOMATIC OR MANUAL
 EMERGENCY STOP

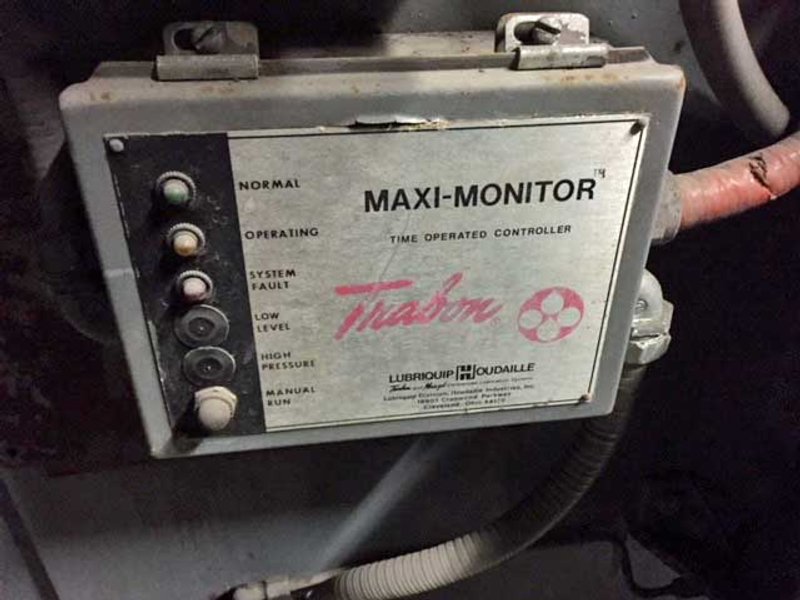

AUTOMATIC TIMED GREASE LUBRICATION OF ALL BEARINGS USING A TRABON LUBRIQUIP

MAXI-MONITOR CONTROLLER.

 ** TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS **

 ** ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
