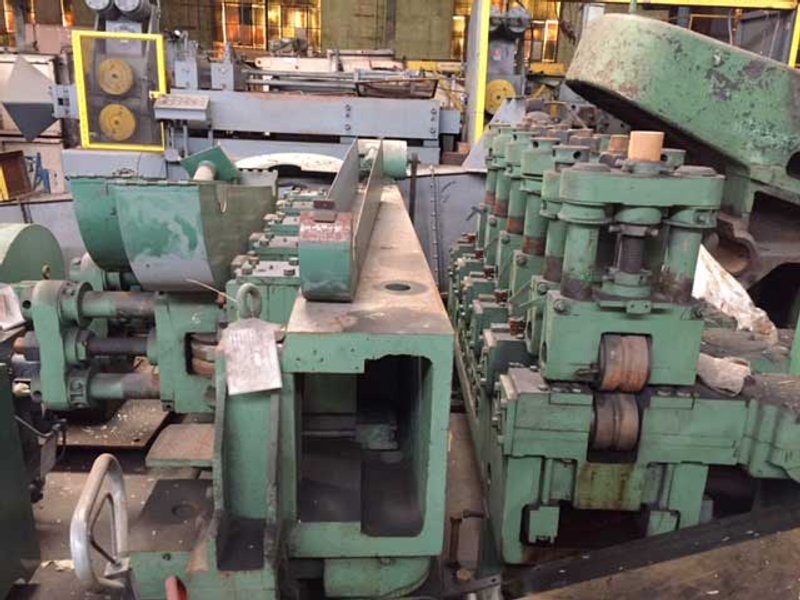

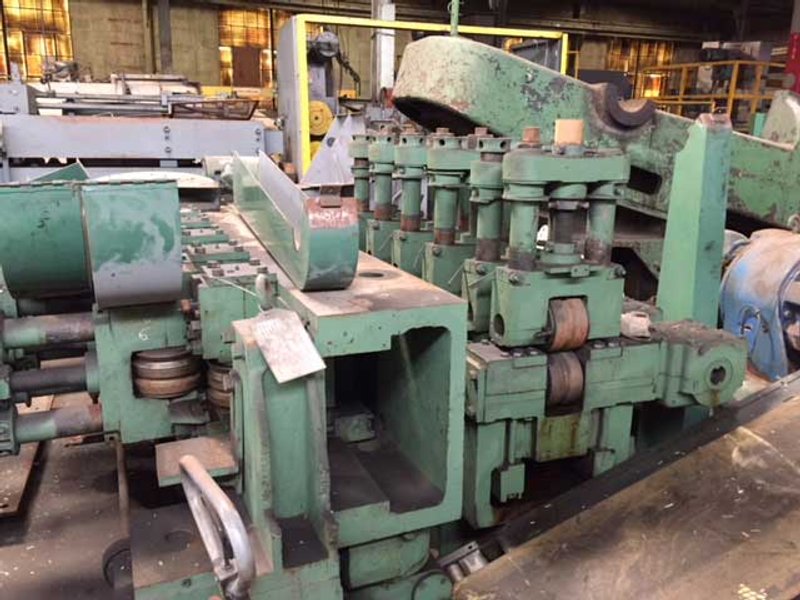

4" (100mm) X 1" (25.4mm) MEDART TPVC12-2 SHAPE STRAIGHTENER (13280)

MACHINE# 13280

SPECIFICATIONS:

MANUFACTURER:          MEDART MACHINE CO. (U.S.A.)
TYPE:                  STRAIGHTENER FOR SQUARES, HEXES, AND FLATS
SIZE:                  1
TYPE:                  TPVC12-2
CAPACITIES:
 SQUARE:               1/4" - 1 1/2" (6.35mm - 38mm)
 HEX:                  1/4" - 1 1/2" (6.35mm - 38mm)
 FLAT (MAXIMUM):       1" x 4" (25mm x 101mm)

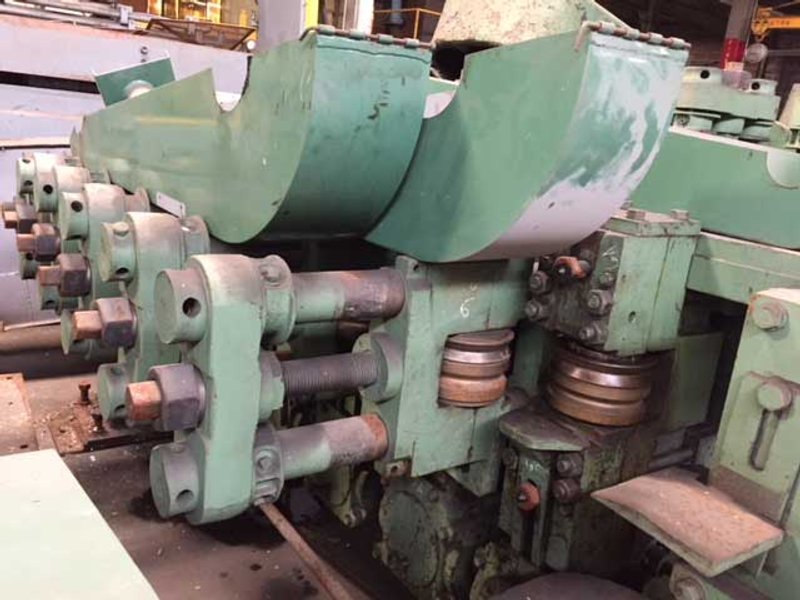

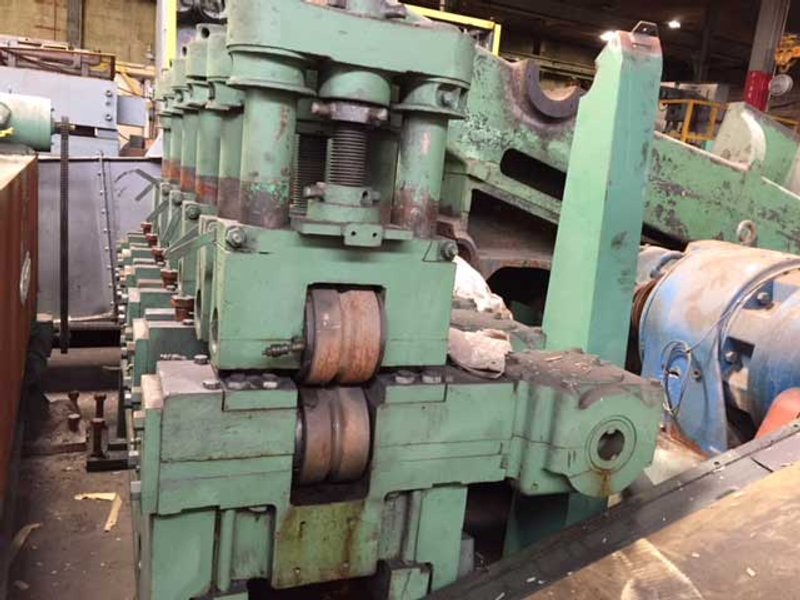

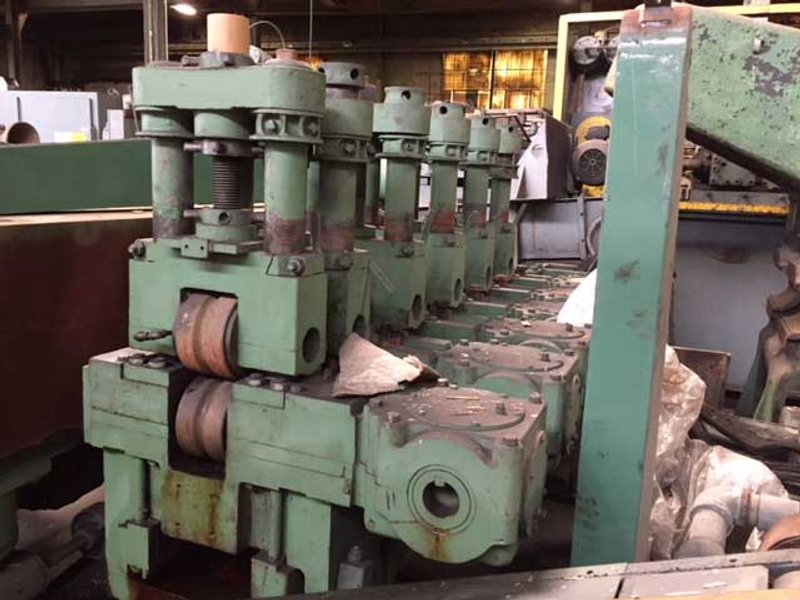

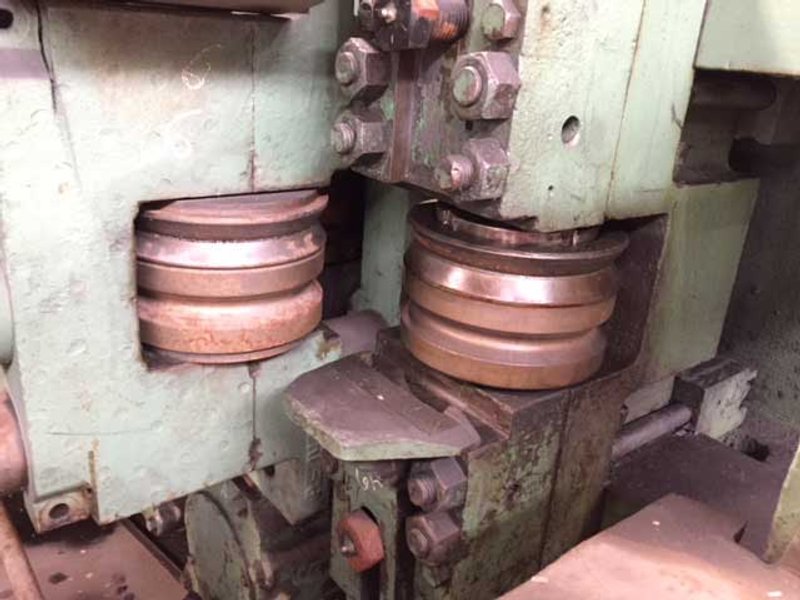

No. OF ROLLS PER SET:  24 (12 VERTICAL x 12 HORIZONTAL)

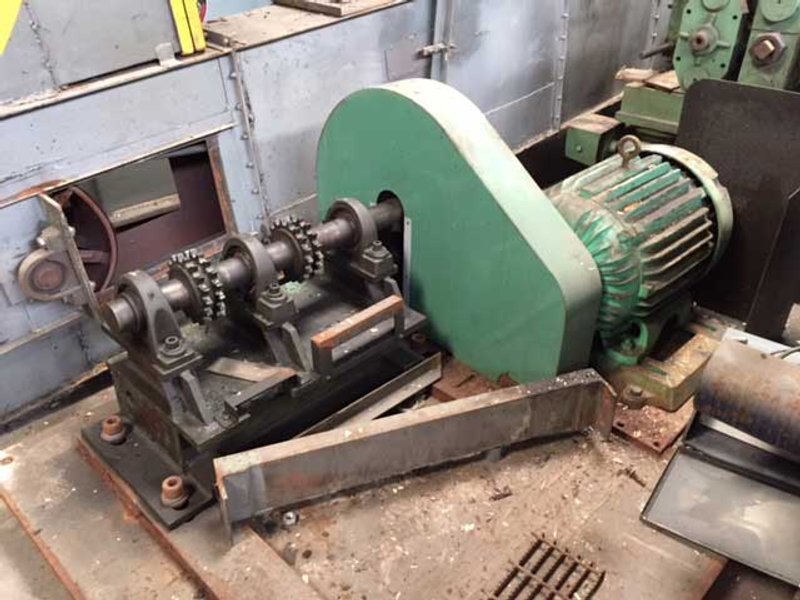

DRIVE MOTOR:
 25 HP, 1200 RPM, 440 VOLT, 3 PH., 60 HZ, ALLIS CHALMERS

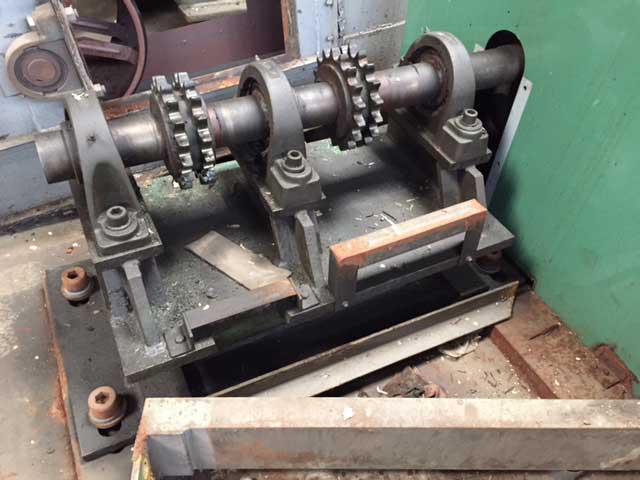

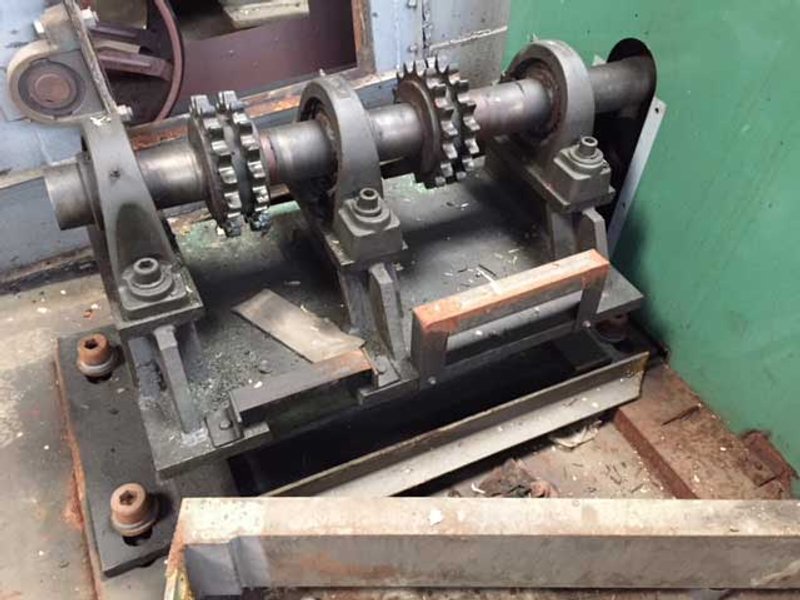

CHAIN DRIVE

FLOOR SPACE:
 LENGTH:               10' 2" (3.1m)
 WIDTH:                10' 6" (3.2m)
 HEIGHT:                5' 8" (1.7m)
WEIGHT:                36,800 LBS. (16,700 KG)

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
