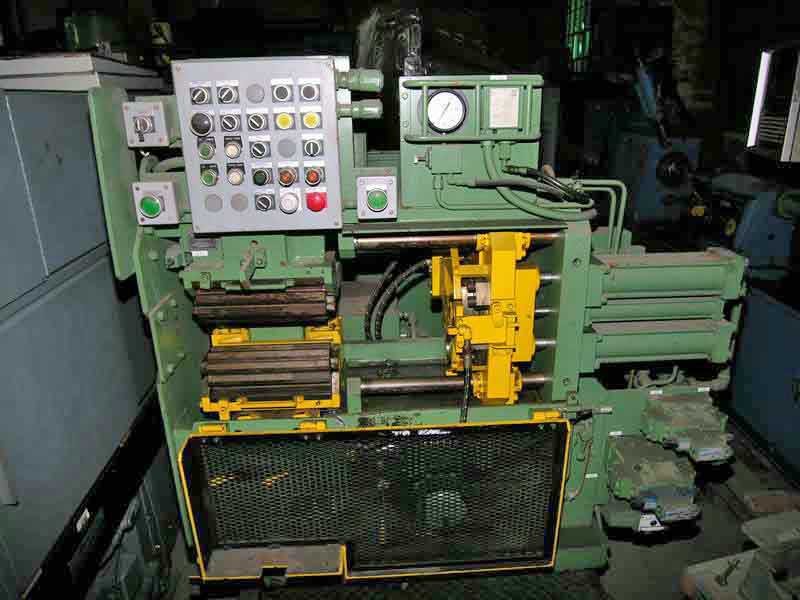

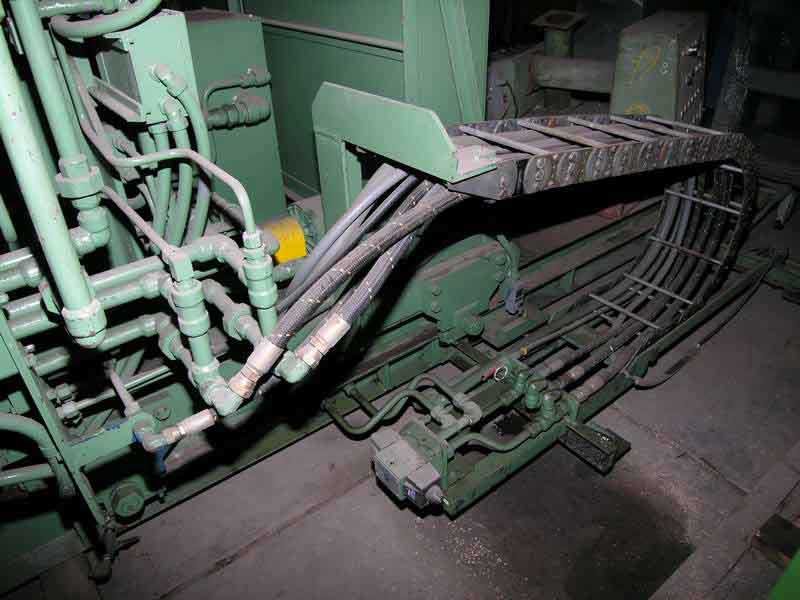

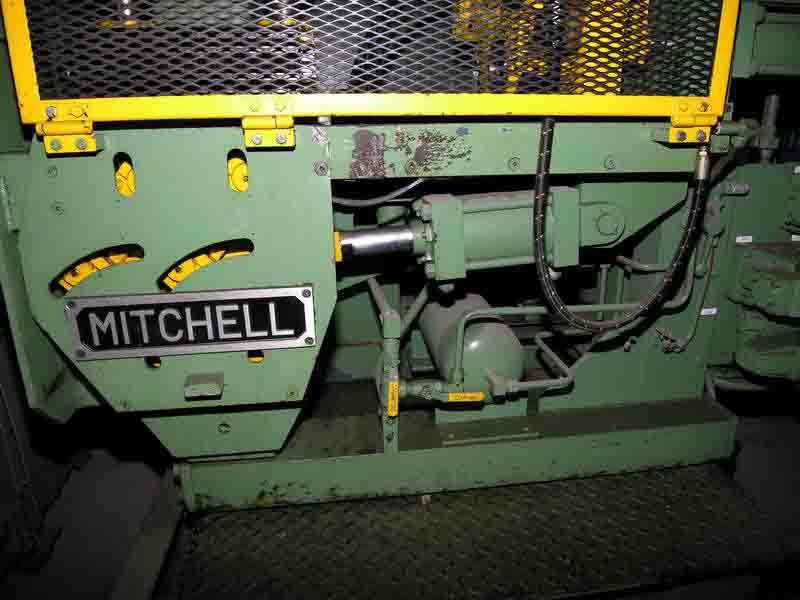

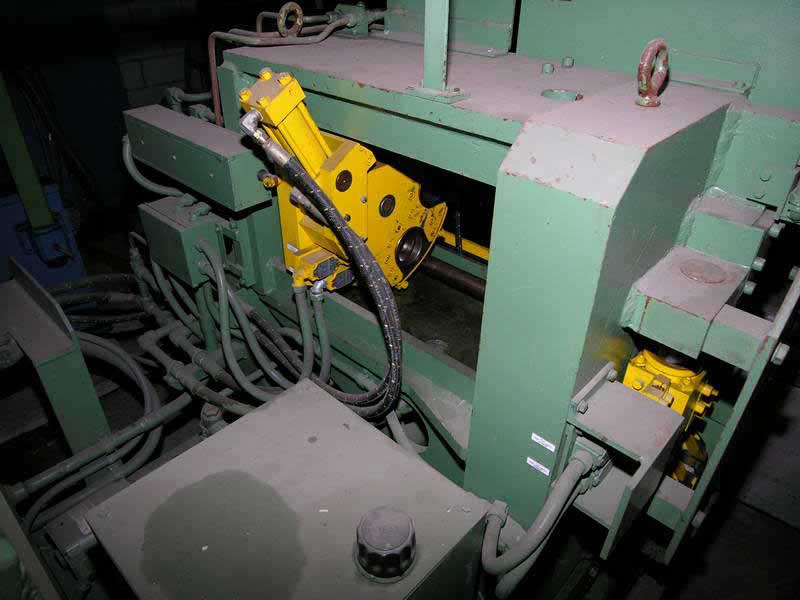

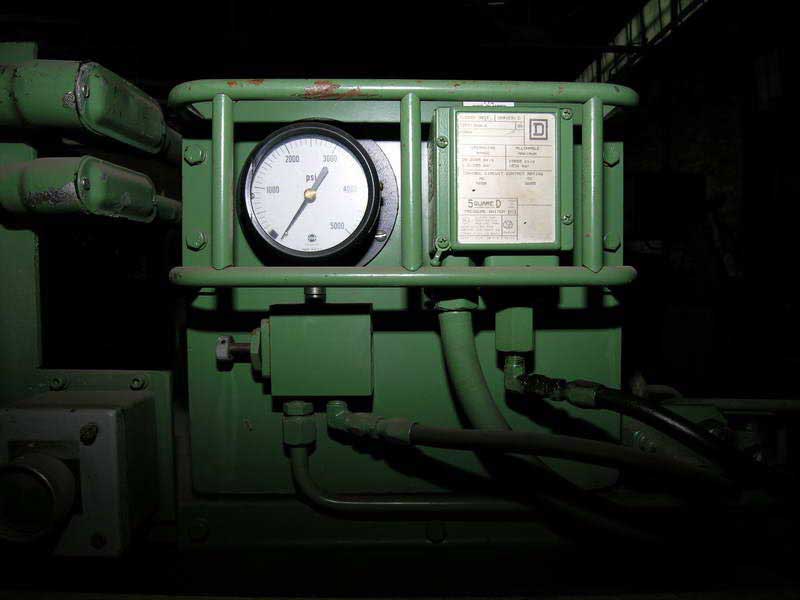

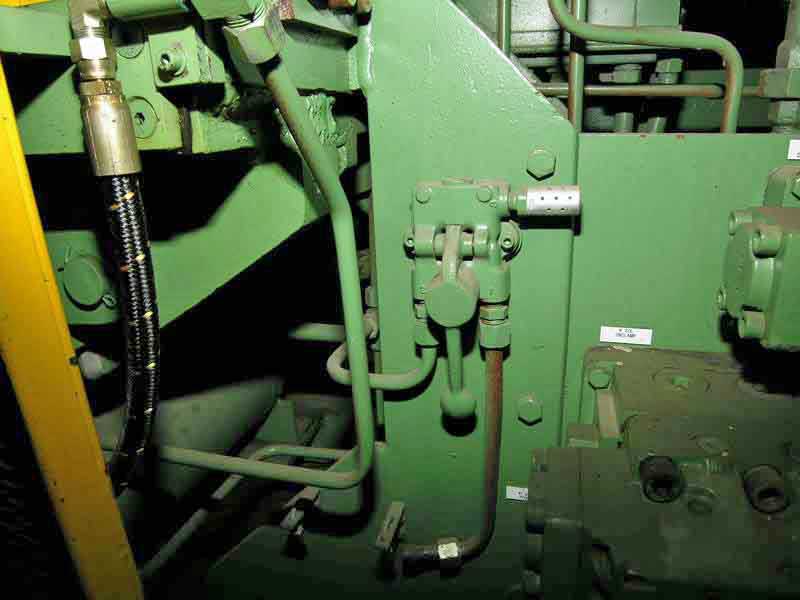

1 1/16" MITCHELL HYDRA-PUSH 2 DIE HYD COILED ROD PUSH POINTER (13114)

MACHINE# 13114

Originally built for Nelson Steel & Wire. It was used to point coiled rod

coming off of a horizontal payoff going to a vertical bullblock. Pointer

slides into alignment between payoff and drawer to point the coil then

slides back out of the way.

Specifications:

Manufacturer: Mitchell
Type: Hydra-Push 2-Die Hydraulic Coiled Rod Push Pointer
Year of Manufacture: 1978, Rebuilt in 1998

Capacity:
   Rated - 33,000 Lbs. @ 1989 PSI
 Maximum - 41,480 Lbs. @ 2500 PSI

Automatic Cycle: (1) or (2) Die Reduction in Point Mode or Nibble Mode:
 Die #1:  Up to 4 Nibble Strokes
 Die #2:  Up to 4 Nibble Strokes

Pointing Speeds:
 Advance - 212 IPM @ 2000 PSI
 Return  - 271 IPM @ 1000 PSI

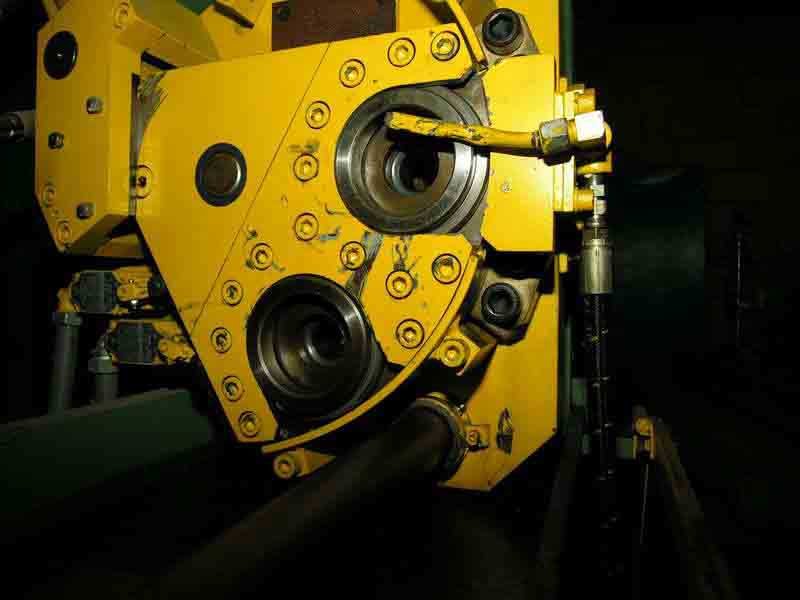

Die Holder: 2-Hole Rotary with 4.010" O.D. w/3" I.D. Round x 2-9/32" Deep

Cavities, with 1-1/2" Dia. Relief Hole Behind Die

Point Length: Automatic By (3) Position Selector Switch
Maximum Travel of Dies:  12"
Length of Gripper Jaws:  13"
Die Index Mechanism:  Hydraulic Cylinder
Clamping Mechanism:  Hydraulic Cylinder & Double Toggle
Traverse Mechanism:  Hydraulic Motor
Tube Gripper Jaws: Octagonal - Quick Rotate Type (8 Sided)
Current Grip Sizes: .625", .687", .750", .812", .875", .937", 1", 1.062"
Current Est. Pointing Dies for Taking 1-1/16" Down to 7/8" in Two (2) Hits.

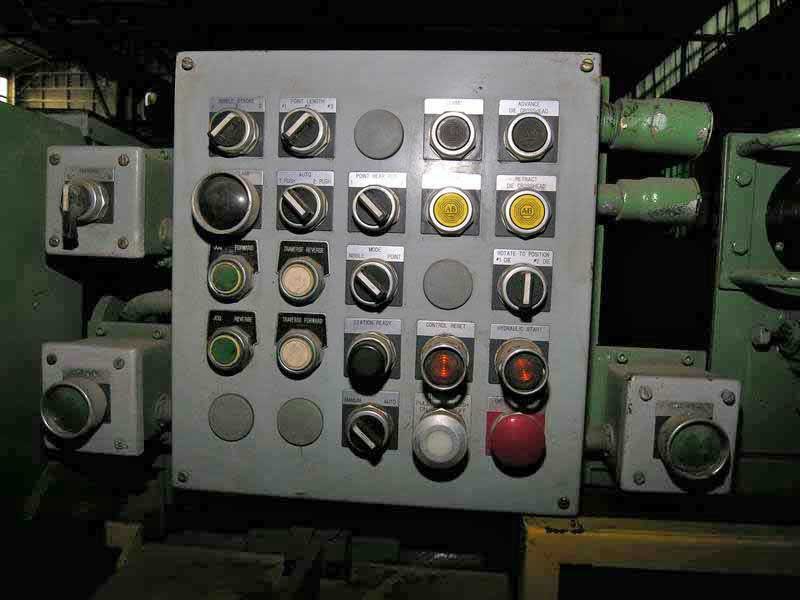

EQUIPPED WITH: Push-Button & Controls; Vickers Pumps & Valves.

MOTOR DATA:
 Hydraulic -  20 HP Reliance, 230/460/60/3-1160 RPM

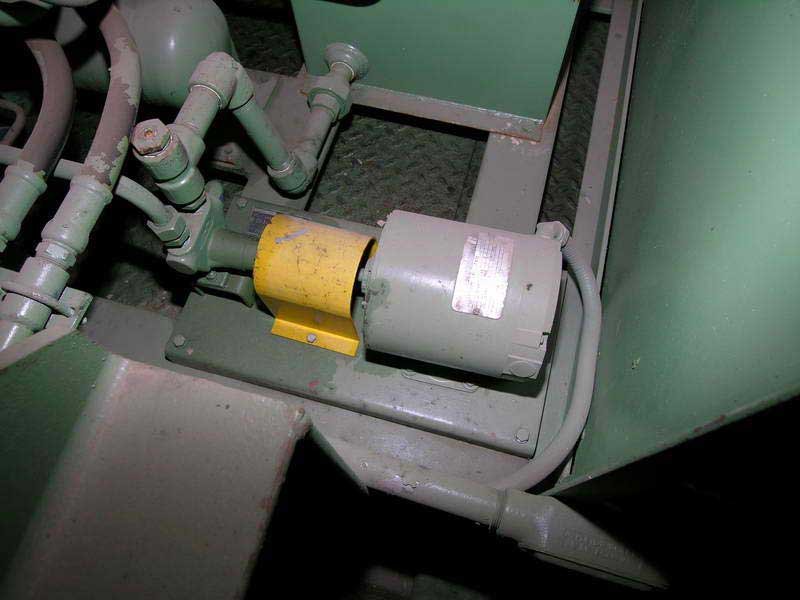

   Coolant - 1/2 HP Reliance, 230/460/60/3-1140 RPM

O.A. DIMENSIONS: 6' W x 11'4" L x 6'2" High
WEIGHT: 6,900 Lbs. - Approx.

NOTE: Machines appears to be nearly unused since 1998 rebuild.
 * Missing: Hydraulic Tank, Motor and Pump, Also Missing PLC Ctr.
 * Included: Photos, Complete Manuals, Prints, and Schematics

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
