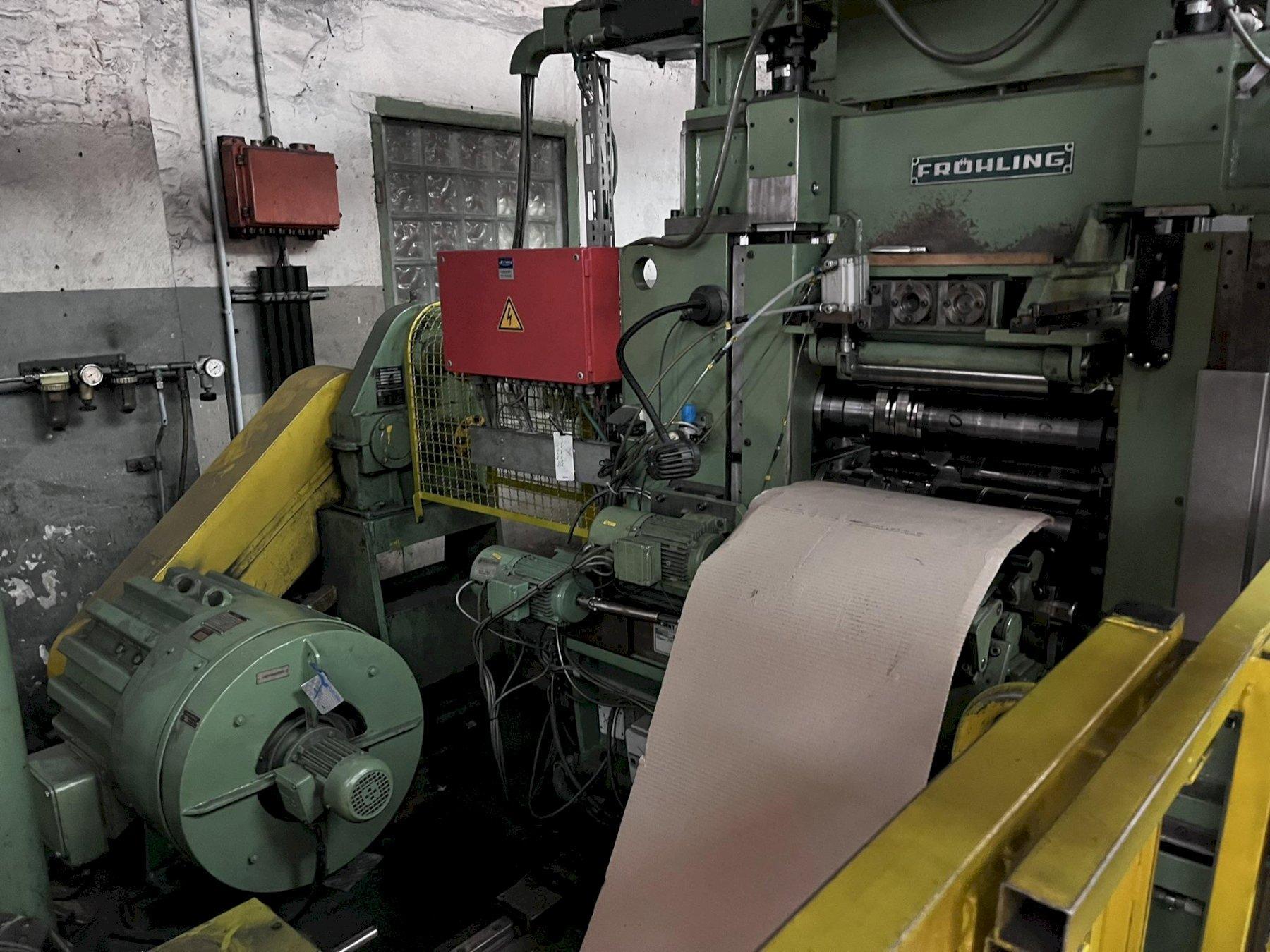

MACHINE # 12021

MANUFACTURER,,,,,,,,,,,,,,,,,,,,,,,FROHLING GMBH

MATERIAL STRENGTH................. 30 TO 100 KP/mm2
COIL THICKNESS.................... 0.05mm TO 0.3mm
COIL WIDTH........................ 250mm (270mm MAX)
NUMBER OF CUTS.................... 21 AT 0.1mm TH
AND LINE SPEED 200m/min
LINE SPEED........................ 10-100-200m/min
MAX 200m/min WIDTH
0.05 - 0.15mm TH
FEED UP SPEED..................... 13 m/min
COIL WEIGHT....................... 1250KP (NORMAL)
2000KP (MAX)
LINE DIRECTION.................... LEFT TO RIGHT
INSTALLED......................... 1975

EQUIPMENT:

UNCOILER.......................... MANDREL TYPE
HYDRAULIC EXPANSION
MANDREL DIAMETER................ 300 AND 400mm*
EXPANSION 270/320mm
*WITH SEGMENTS
COIL O.D........................ 950mm, 5Kg/mm WIDTH
EXCEPTIONAL: 1180mm, 8Kg/mm WIDTH
COIL WEIGHT..................... 2000Kp MAX
1250Kp NORMAL
TENSION MAX..................... 75Kp.

GUIDE ROLL STAND

BRIDLE ROLL STAND

SLITTING HEAD
DISTANCE BETWEEN FRAME.......... 400mm
DIAMETER OF KNIVES.............. 160mm(NOMINAL)
SHAFT DIAMETER.................. 80mm
THICKNESS OF KNIVES............. 5mm (MIN)
HYDRAULIC MOTOR DRIVE
ACCURACY OF CUT................. +/- 0.01mm FOR 0.1mm THICKNESS

LOOP PIT

ENTRY GUIDE TO RECOILER

RECOILER......................... 2 SPEED GEARBOX EXPANSION
MANDREL DIAMETER............... 70mm BY PNEUMATIC
100, 175, 250 MECHANIC EXPANSION
COIL O.D....................... 950mm MAX, WIDTH
250mm I.D. + COIL
WEIGHT 800Kp.
400mm MAX WITH 175 I.D. MAX WIDTH 150mm

STRIP TENSION AT UNCOILER...... 75Kp. MAX
STRIP TENSION AT RECOILER...... POS. 1 0-100 m/min
MAX 150Kp
POS. 2 0-200m/min
MAX 75Kp

OVERARM SEPARATOR

SELF CONTAINED:
HYDRAULIC MOTOR/PUMP/RESERVOIR SYSTEM
(2) 11HP MOTORS
(2) 7.5HP MOTORS
(1) 2HP MOTOR

LARGE ASSORTMENT OF TOOLING

**MACHINE IS SOLD AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
