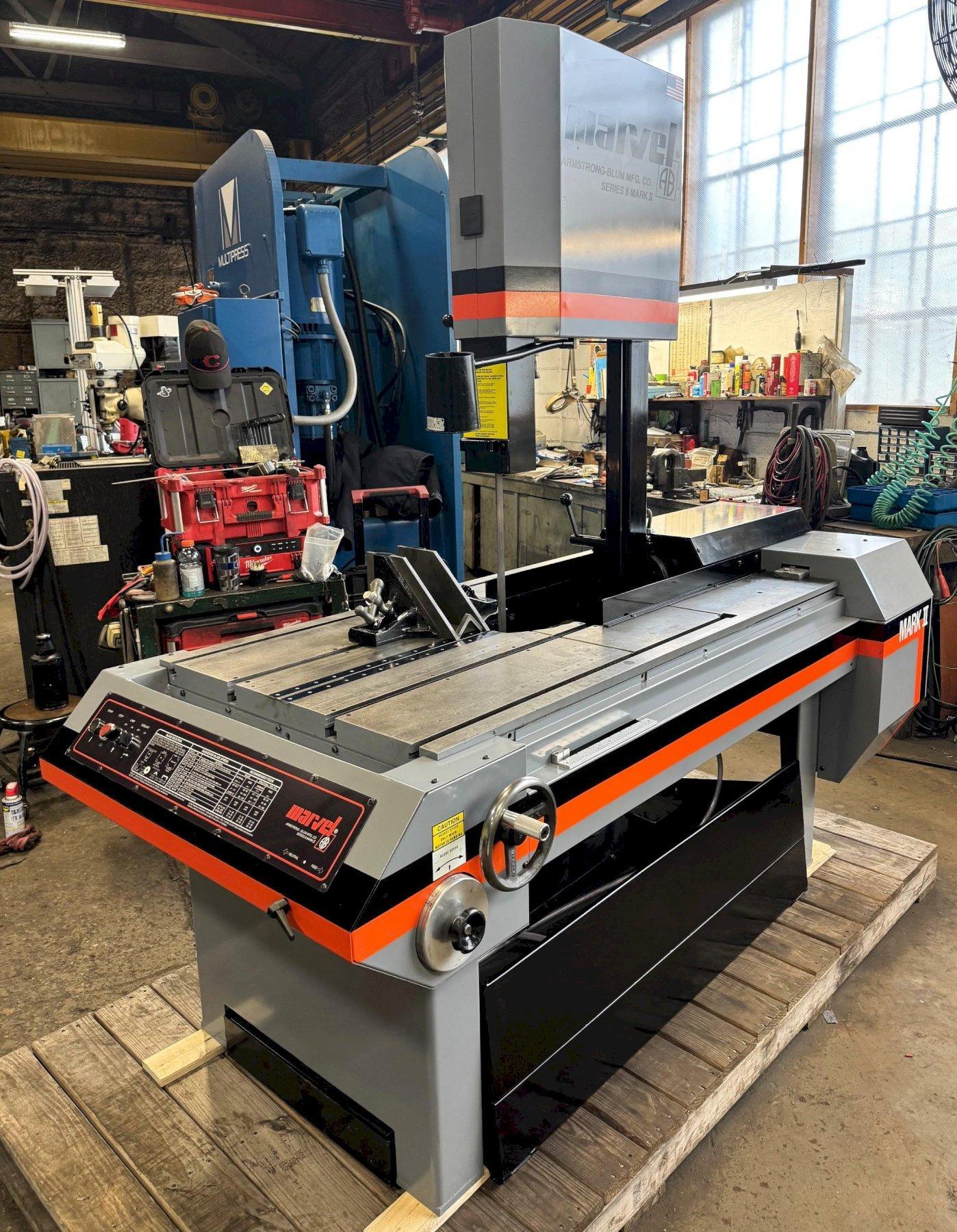

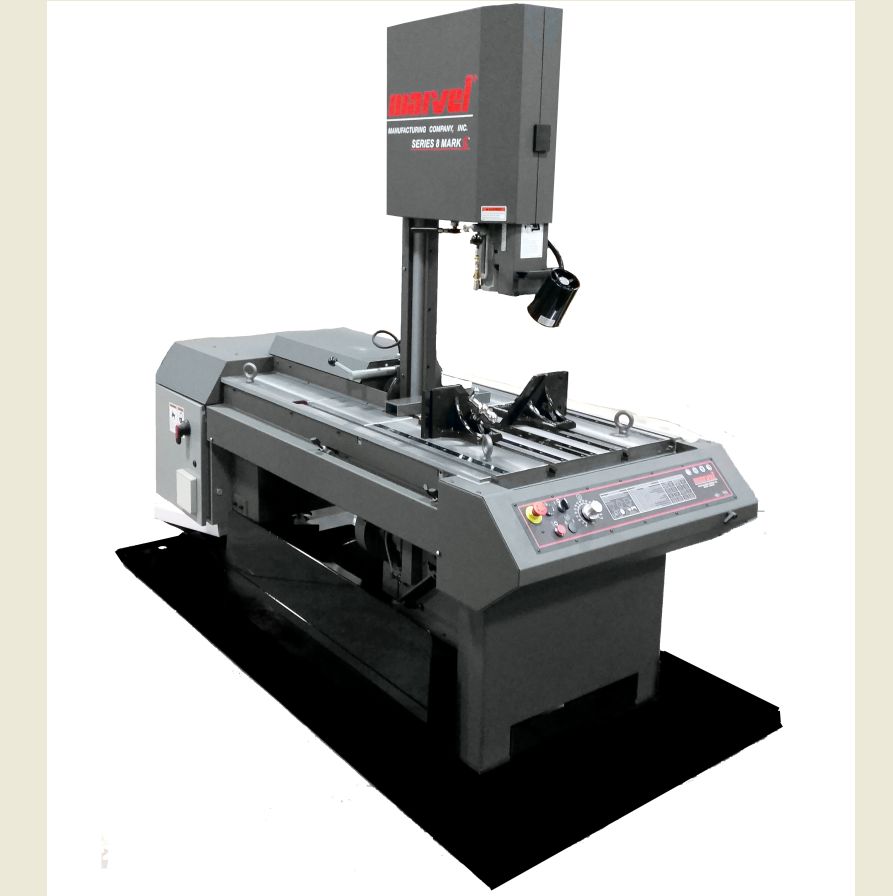

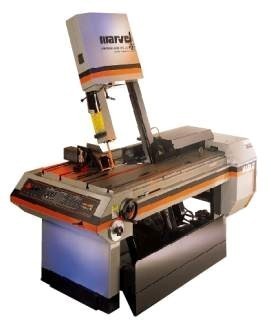

MARVEL TILT FRAME VERTICAL BAND SAW

MODEL: Series 8 Mark II

GENERAL SPECIFICATIONS

*Tilting Column For Straight and Miter Cutting
*Miter Cutting: Column and Blade Tilt Up To 45 Degrees Right and Left of
*Vertical. Work Always Stationary. Built-In Protractor.
Horizontal Capacity: 18"
Vertical Capacity: 22"
Vertical Capacity at 45 Degrees: 12-3/4"
Blade Size: 14'6" x 1" x .035"
Blade Speed Range: 50 to 450 FPM, Infinitely Variable With Inverter Drive
Feed Force: 0 to 140 Lbs., Infinitely Variable
Wheel Diameter: 19"
Table Height: 34.5"
T-Slotted Work Table: 33" x 24.25"
Maximum Vise Opening: 21"

EQUIPPED WITH

5 HP Drive Motor
Coolant System: Built-In With Flood System.
1/8 HP Coolant Pump
Flushing Hose
Quick-Action Vise: Jaws Can Be Shifted To Either Right Or Left Side Of Blade
 Jaws Are 6" High, 12" Wide
Power Chip Brush
Automatic Stops: Adjustable Stops Can Be Pre-Set To Stop Advance and Return Of
 Blade, and Also To Stop Motor At Any Location Within The 18" Travel Of The
 Blade
Front Mounted Speed Control: Allows Blade Speed To Be Adjusted From Operator's
 Control Station

Approximate Weight: 2600 Lbs.

F.O.B. Oshkosh, Wisconsin

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
