The purpose of a Remote Pumping Unit is to relocate the
pump/motor away from the day tank or
sub-base tank for several reasons, including:
Distance between main storage tank and the day/sub-base tank.
The suction of all pumpsmis limited to 18' of vertical lift or
200' of horizontal run.
Discharge Pressure - Up to 100 psi for all pumps; and,
is limited to 18' of vertical lift or 200' of horizontal run.
Discharge Pressure - Up to 100 psi for all pumps; and,
Convenience - fuel supply or return pump/motor(s), in any
configuration or size, may be
relocated to a Remote Pumping Unit.

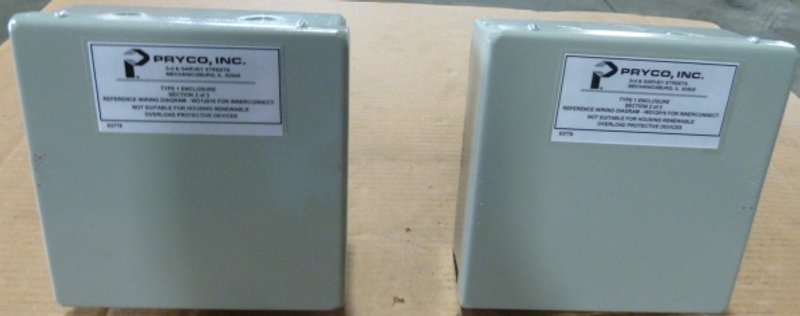

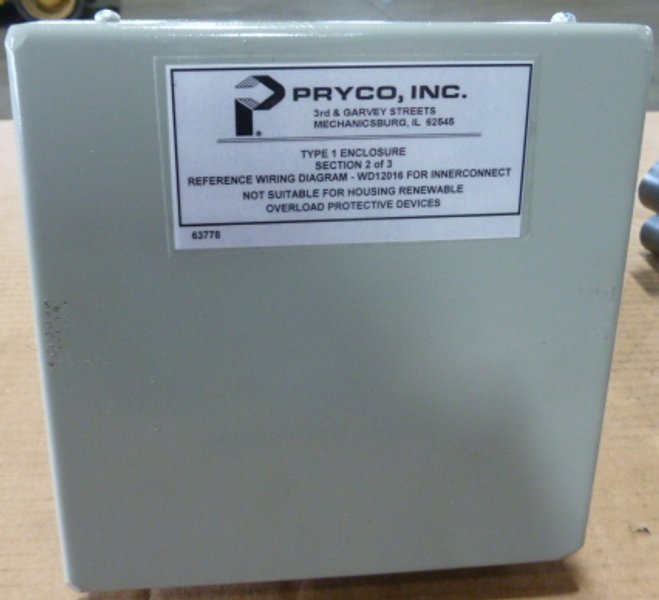

The remote unit frames are constructed of heavy gauge steel with
a removable cover for a
NEMA 3R enclosure rating.
The standard "single" unit, Option #397-12A, is equipped with our
standard pump and motor (a
2GPM bronze pump and a 1/3HP, 115VAC, 1PH, 60HZ, thermal
protected motor). The
standard "duplex" unit, Option #397-12B, has a second pump/motor
set.
