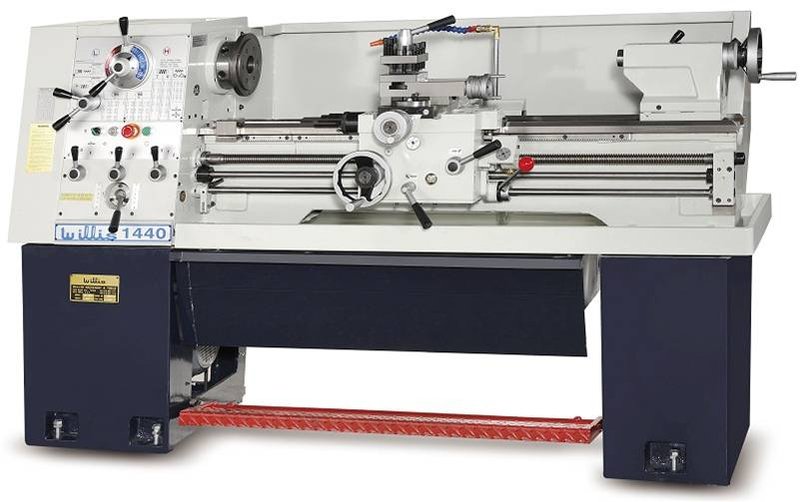

14"/22" x 40" Willis Gap Bed Lathe, 70-2000 RPM, Inch/mm, 5 HP, New

(NEW) WILLIS GAP BED ENGINE LATHE

MODEL: 1440

FACTORY SPECIFICATIONS

Swing Over Bed: 14-1/4"
Swing In Gap: 22"
Distance Between Centers: 40"
Spindle Speeds: (8) 70 - 2000 RPM
Spindle Bore: 1-5/8"
Spindle Nose: D1-5
Threads, Inch: (36) 4 - 72 TPI
Threads, Metric: (27) .4 - 7 mm
Longitudinal Feeds: .0012" - .016"
Cross Feeds: .0004" - .0053"
Cross Slide Travel: 8-1/4"
Compound Travel: 3-3/4"
Tailstock Quill Travel: 5-3/4"

EQUIPPED WITH

5 HP Spindle Motor
Hardened and Ground Bed Ways
Hardened and Ground Headstock Gears and Shafts
Inch/Metric Dual Dials
Foot Brake
Flood Coolant
Full Length Splashguard
Pull-Out Chip Pan
Four Way Tool Post
Instruction and Parts Manual, Service Tools

Approximate Weight: 2000 Lbs.

F.O.B. Toledo, Ohio

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND OR MODIFICATION
