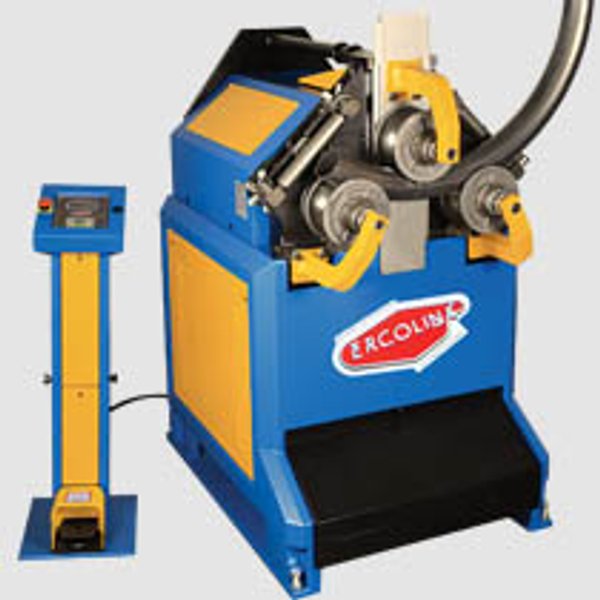

(NEW) ERCOLINA ANGLE BENDING ROLL

MODEL: CE50H3

FACTORY SPECIFICATIONS

ALL CAPACITIES BASED ON MILD GRADE MATERIAL; HEAVY WALL AND HIGH TENSILE MATERIALS REDUCE MACHINE CAPACITY

Vertical or Horizontal Operating Position
Capacity, Angle, Maximum: 2-3/8" x 2-3/8" x 1/4"
Capacity, Pipe, Maximum: 2-1/2" Schedule 40
Capacity, Tube, Maximum: 3" - .095" Wall
Roll Shaft Diameter: 50mm
Center Roll Positioning: 10 Tons, Hydraulic
Shaft Speed: 9 RPM
Universal Tooling (Included): 7" O.D.
Programming: NC - Touchpad
Number Of Programs: 8
Distance Between Shafts: 11-7/8"
Operating Voltage: 220V or 480V, 3 Phase

FEATURES

*Universal Tooling Set
*Forged Roll Shafts Precision Ground and Fitted For Maximum Performance and Minimal     Deflection
*Roll Shafts Supported With Conical Steel Bearings On Each Side Of A Frame
*Heavy Duty Structure and Rigid Components For High Section Modulus Ratings
*Reinforced Engineered Mainframe Design Proven To Outperform Competitive Models
*In-Line Direct Drive Roll Shaft System 2-Roll Driven
*Threaded Roll Shafts With Micrometric Flange Adjustment Helps Eliminate Spacer Usage
*Touchpad Controls With Digital Center Roll Positioning
*Control Tower With Low Voltage Controls and Foot Pedal
*Hydraulic Machine With Memory Storage Has Eight (8) Individual Programs and Unlimited Passes

Overall Dimensions: 45" x 29" x 52"
Approximate Weight: 1100 Lbs.

F.O.B. Davenport, Iowa

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
