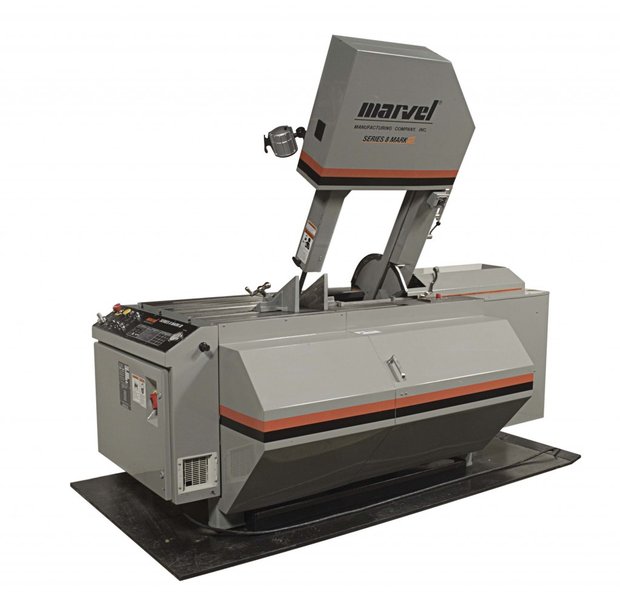

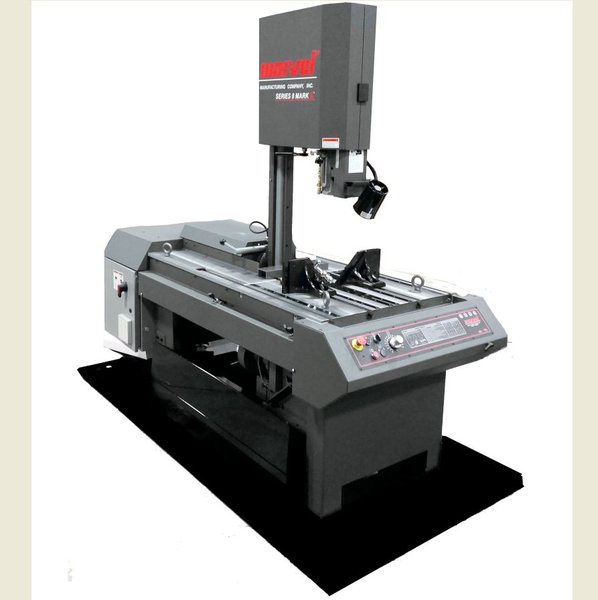

(NEW) MARVEL TILT FRAME VERTICAL BAND SAW
MODEL: Series 8 Mark III FACTORY SPECIFICATIONS *Tilting Column For Straight and Miter Cutting *Miter Cutting: Column and Blade Tilt Up To 60 Degrees Right and Left of Vertical *Work Always Stationary. Built-In Protractor. Capacity, Blade At 90 Degrees: 18" Horizontal, 22" Vertical Capacity, Blade At 45 Degrees Right: 18" Horizontal, 14-1/2" Vertical Capacity, Blade At 45 Degrees Left: 18" Horizontal, 13" Vertical Capacity, Blade At 60 Degrees Right: 18" Horizontal, 9.7" Vertical Capacity, Blade At 60 Degrees Left: 18" Horizontal, 7.3" Vertical Capacity, Column In 3 Degree Forward Cant Position: 17.5" Horizontal, 22" Vertical Blade Speed Range: 50 to 450 FPM, Infinitely Variable With Inverter Drive Feed Range: 0 - 250 Lbs., Infinitely Variable Wheel Diameter: 19" Table Height: 34.5" T-Slotted Work Table: 33" x 24.25" Maximum Vise Opening: 18" EQUIPPED WITH 5 HP Drive Motor Automatic Column Return Coolant System: Built-In With Flood System. 1/8 HP Coolant Pump Flushing Hose Quick-Action Vise: Jaws Can Be Shifted To Either Right Or Left Side Of Blade Jaws Are 6" High, 12" Wide Power Chip Brush Automatic Stops: Adjustable Stops Can Be Pre-Set To Stop Advance and Return Of Blade, and Also To Stop Motor At Any Location Within The 18" Travel Of The Blade Front Mounted Speed Control: Allows Blade Speed To Be Adjusted From Operator's Control Station Controls: IEC Fused Disconnect Switch and Magnetic Starters, With Overload and Low-Voltage Protection. Disconnect Is NFPA79 Compliant. DC Power Supply Provides Low Voltage Control (24 Volts) To All Push Buttons At Operator's Control Panel and Machine Lighting Circuits. PLC Control and Components Mounted In Moisture Proof NEMA 12 Compartment. Electrical Panel Is UL Labeled. Approximate Weight: 3100 Lbs. F.O.B. Oshkosh, Wisconsin FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION |
