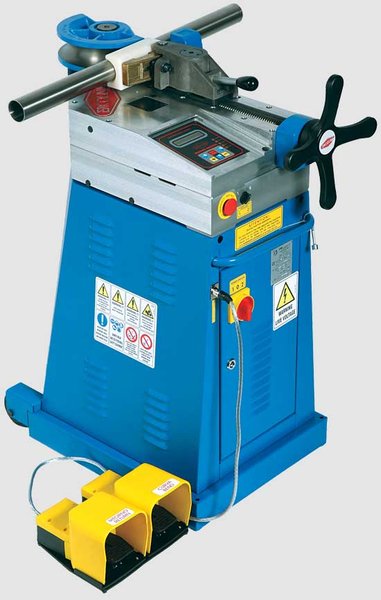

(NEW) ERCOLINA ROTARY DRAW BENDER

MODEL: TB60

FACTORY SPECIFICATIONS

BENDING CAPACITIES
Tube, Minimum: 1/4"
Tube, Maximum: 2-1/2"
Pipe, Maximum: 2" Schedule 40
Centerline Radius, Minimum: 2 x Profile Diameter
Centerline Radius, Maximum: 15"
Degree Of Bend: 0-210 Degrees
*All capacities based on A53 grade A 48,00 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.
SPECIFICATIONS
Bending Speed: 1.7 or 3.4 RPM
Programming: NC With Touchpad, (30) Programs, (9) Bends Per Program
Voltage: 220 or 440 Volt, 3 Phase

EQUIPPED WITH

Foot Pedal: Allows For Hands-Free Operation
Touch Screen Programming
Digital Display Of Bend Angle
Electronically Monitored Counterbending Die Vise Position For Accuracy and Repeatability
Quick-Change Tooling System
Material Springback Compensation

Approximate Weight: 450 Lbs.

F.O.B. Davenport, IA

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
