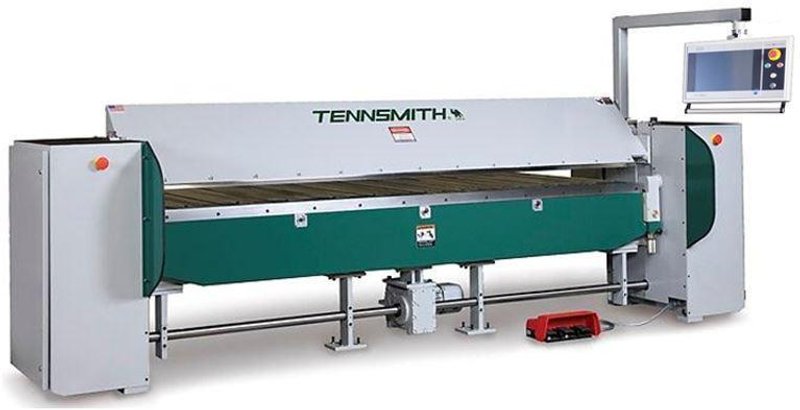

New Tennsmith CNC Folder, Model# SBS159-16-60

New Tennsmith CNC Folder Model SBS 159-16 with SYNERGY Control and 61" Back Gauge

Specifications:

Bending Capacity (Mild Steel)     16ga / 1,6mm

Bending Capacity (Stainless)        20ga / 1,0mm

Bending Length 159 in / 4040mm

Bending Bars      1 " (25mm) bending bar x 159" (4040mm)

                         7/16" (11mm) bending bar x 159" (4040mm)

Crowning of the Folding Beam    7-Point 0”- 0.030” Adjustment

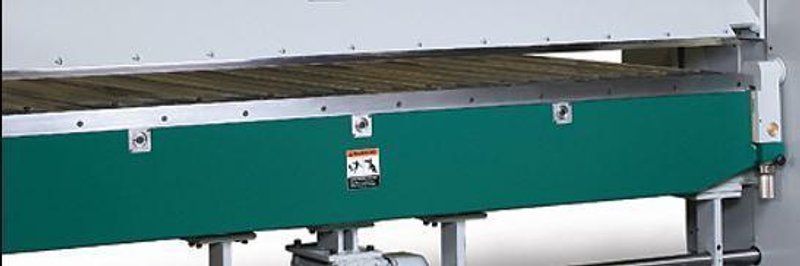

Folding Beam Adjustment            1 in / 25mm

Clamping Beam Opening Height 7 in / 178mm

Clamping Beam Tooling 30 Degrees

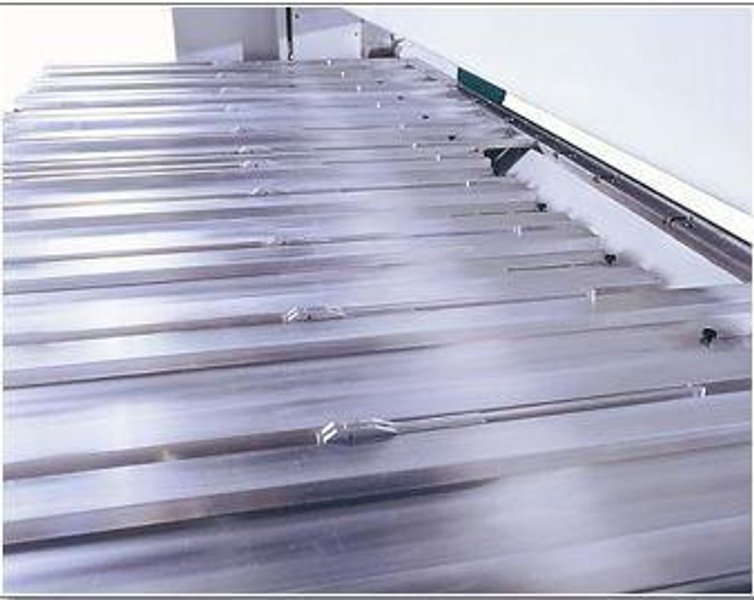

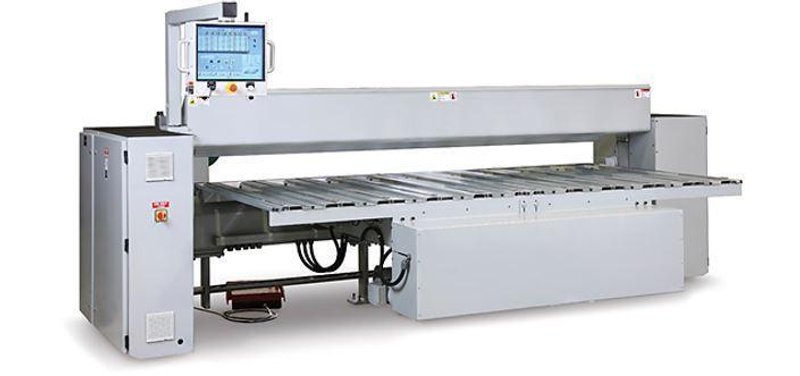

Back gauge Depth (SBS159-60)   61 in / 1550mm

Working Height 34 in / 864mm

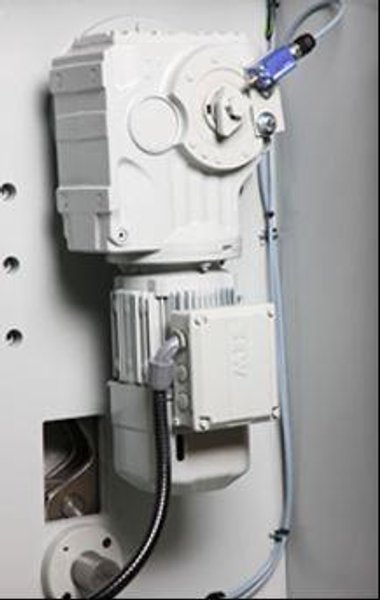

Back Gauge Motor           3/4 hp

Clamping Beam Motor   2 hp / 1.5 kw

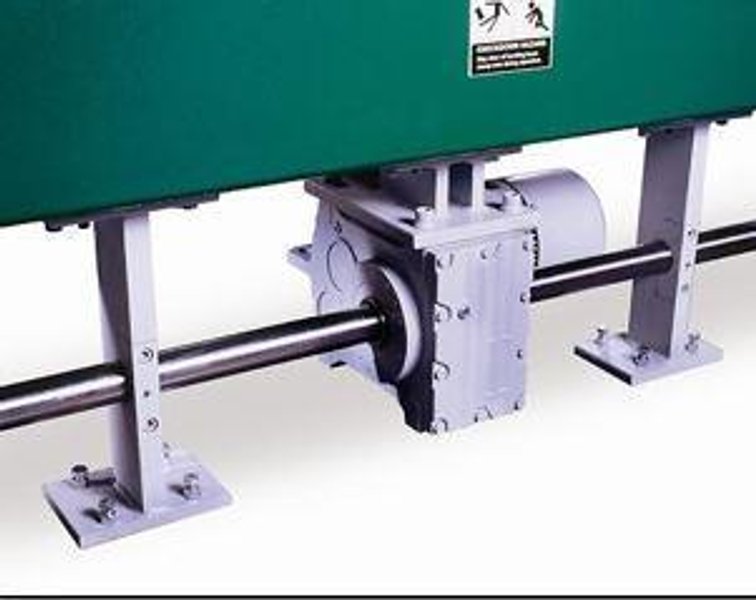

Bending Beam Motor     2 + 2hp / 3 kw

Machine Dimensions      210 x 96 x 72 in / 5334 x 2438 x 1829 mm

Shipping Weight               9,985 lbs.

Speeds:

Clamping Beam Speed   2.5” per second

Folding Beam Speed       80 degrees per second

Back gauge Speed (0.375” to 41”)              5 seconds

Electrics:

Machines are standard with 220 Volt or 440 Volt 3 Phase 60 Hz electrics

FOB: Tennessee

Note: Above is quotes with 61" back gauge travel -
Machine is offered with 41" back gauge travel as well - $128,500

Additional options are available - depends on requirements

Let us know how we can assist.
