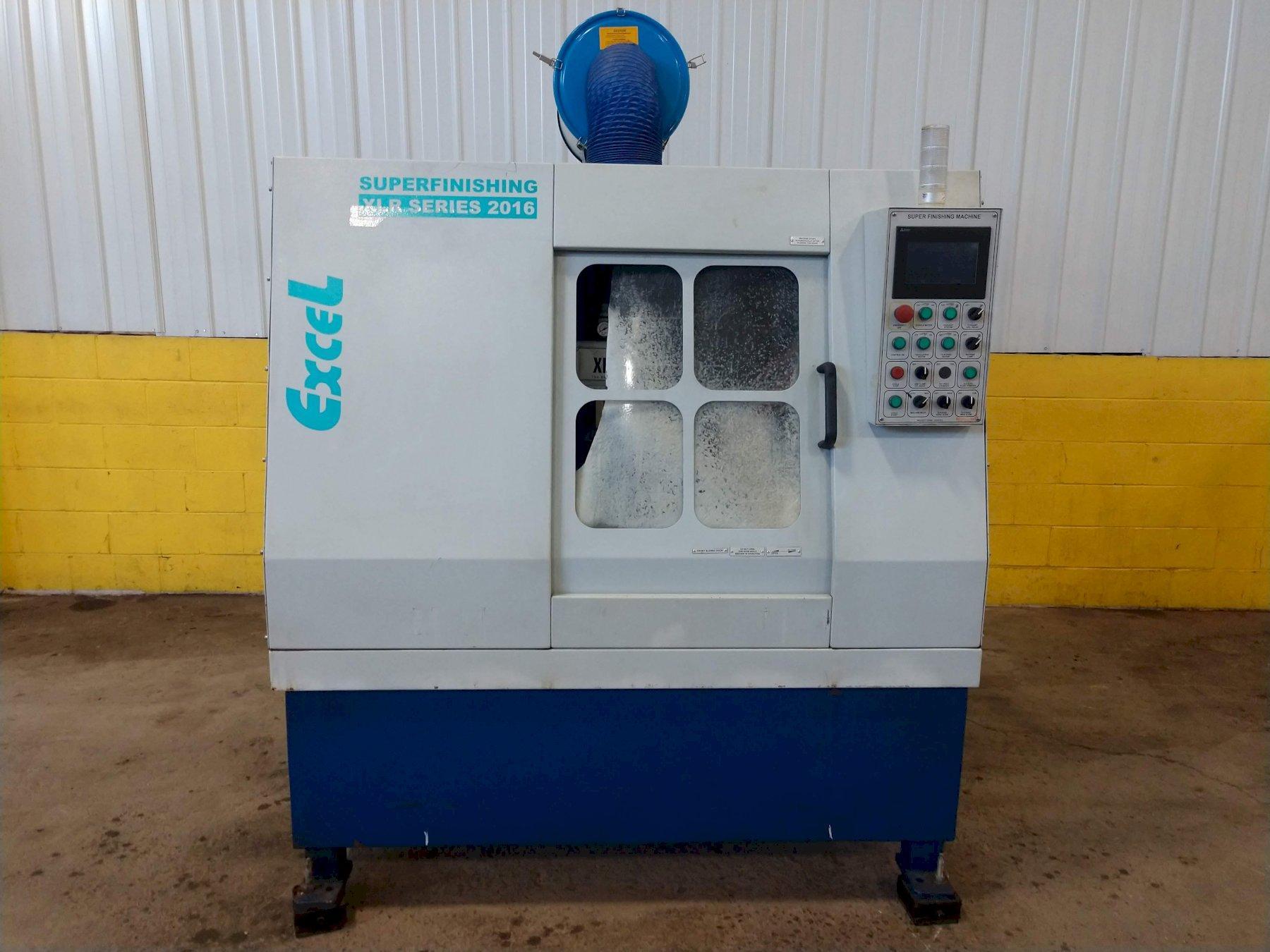

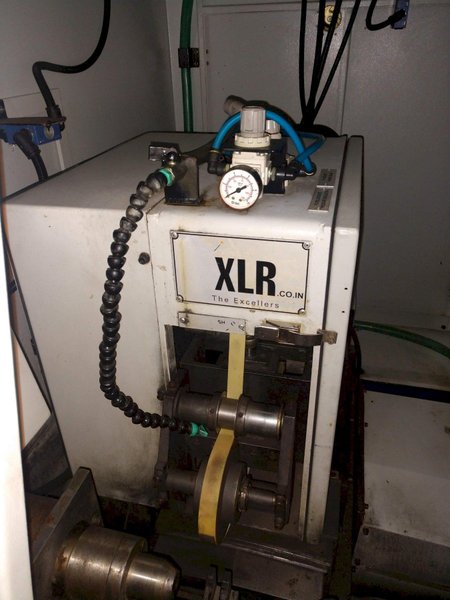

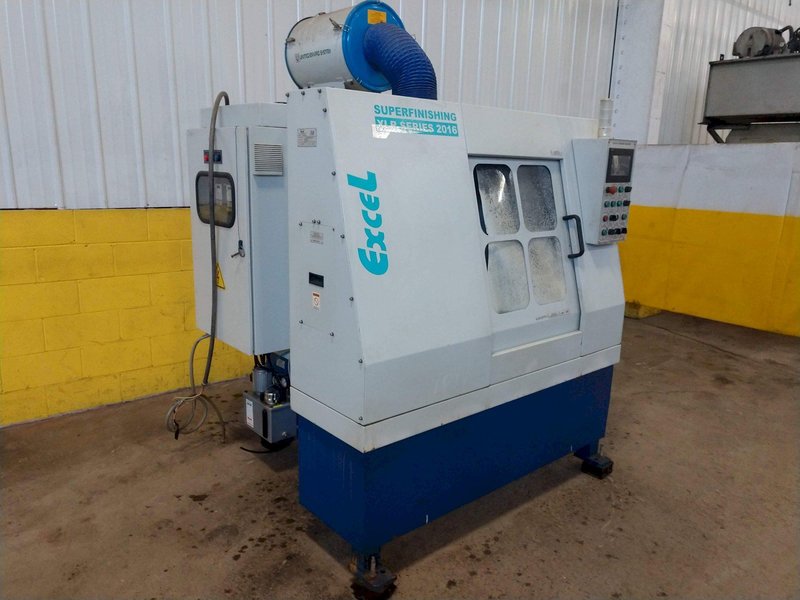

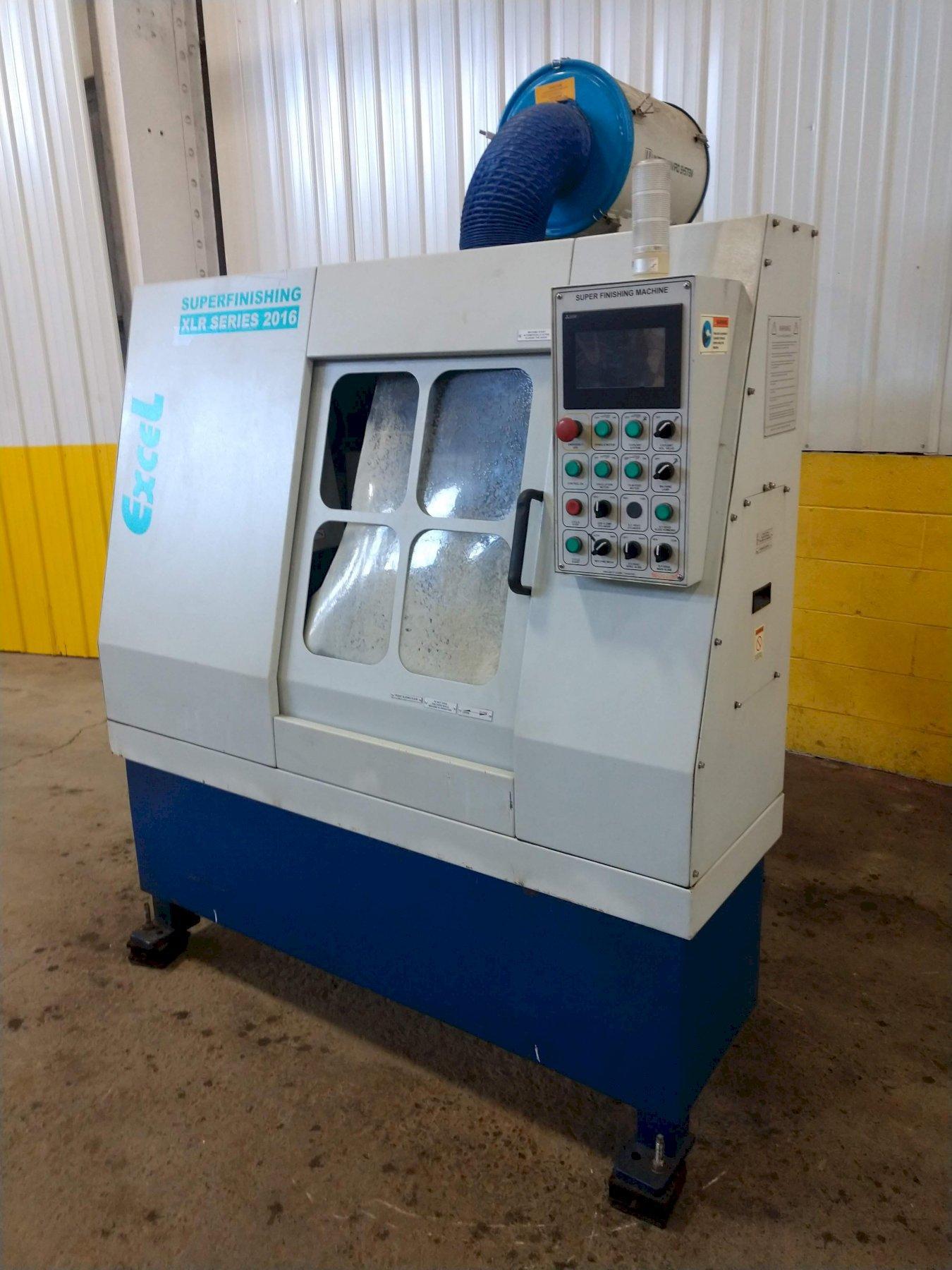

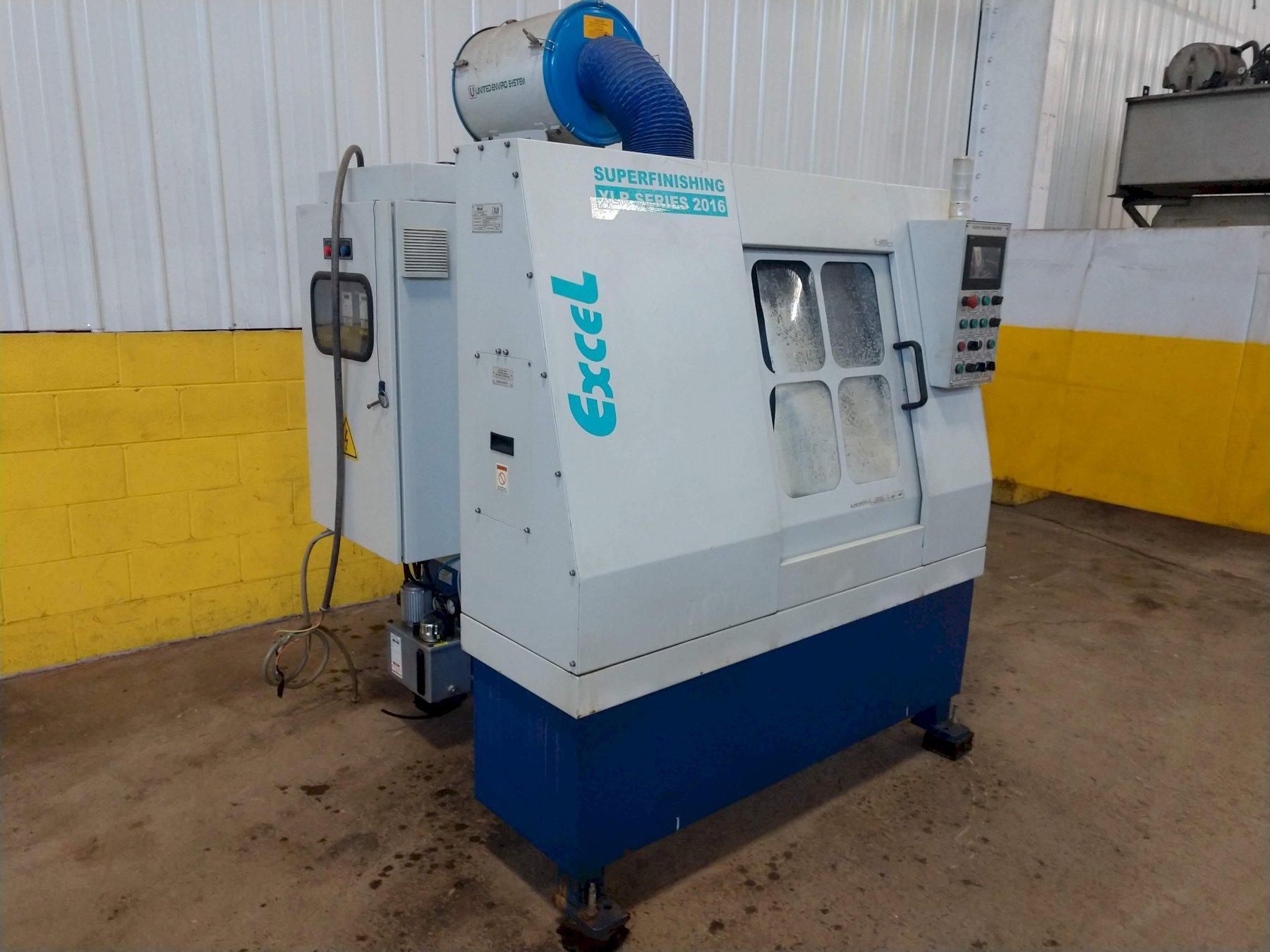

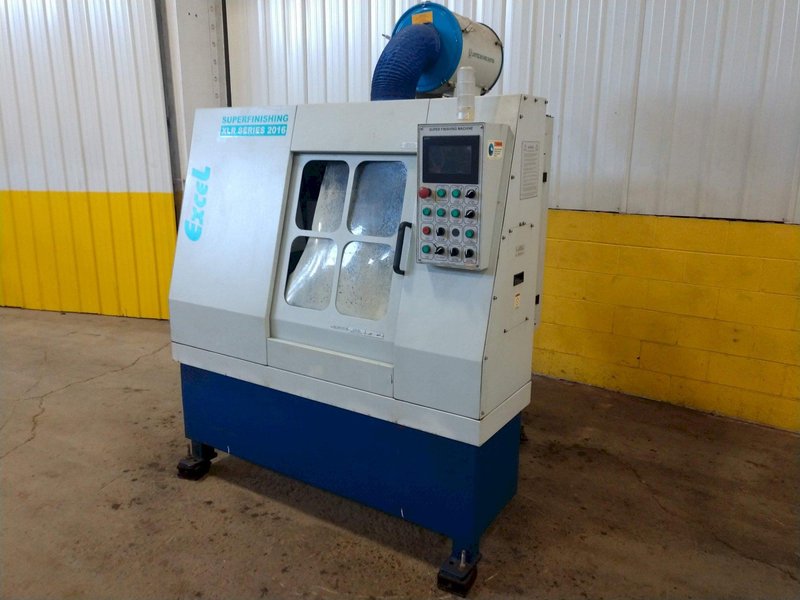

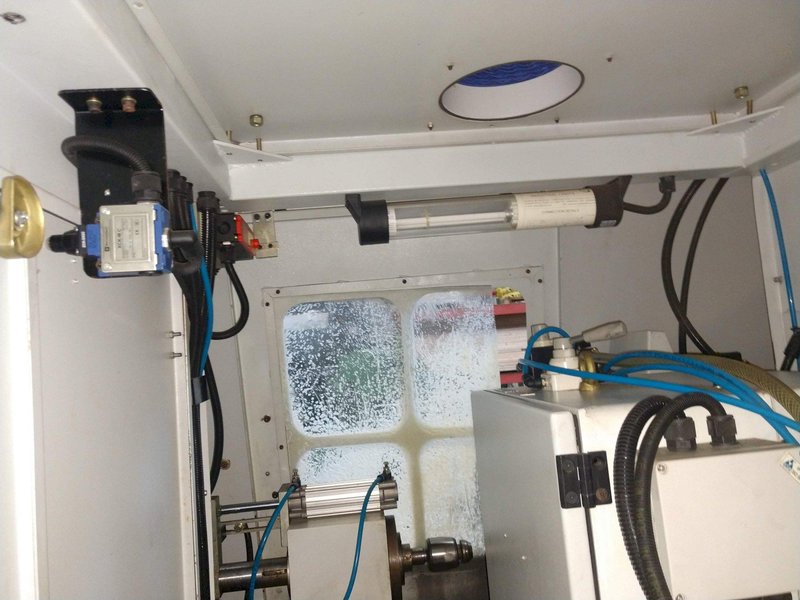

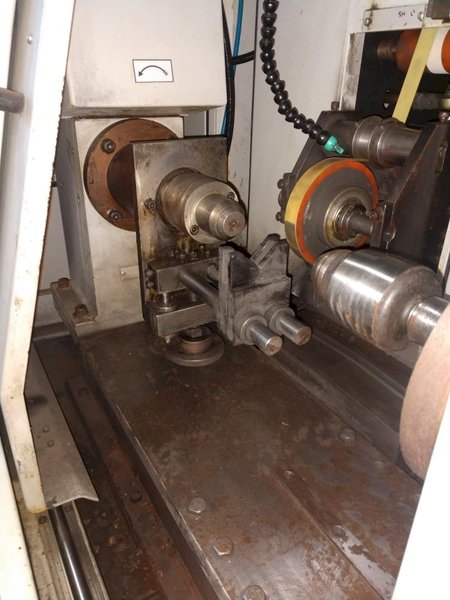

2016 EXCEL SUPER-FINISHER MODEL #XLR-SFM-100-S GRINDER WITH UDLY SLUDGE MASTER COOLANT SYSTEM: STOCK #11863
Brand
Category
Type
Model
XLR-SFM-100-S
Stock #
11863
Year
2016
Condition
Good
Location
Ohio
| Weight | 3575 pounds |
|

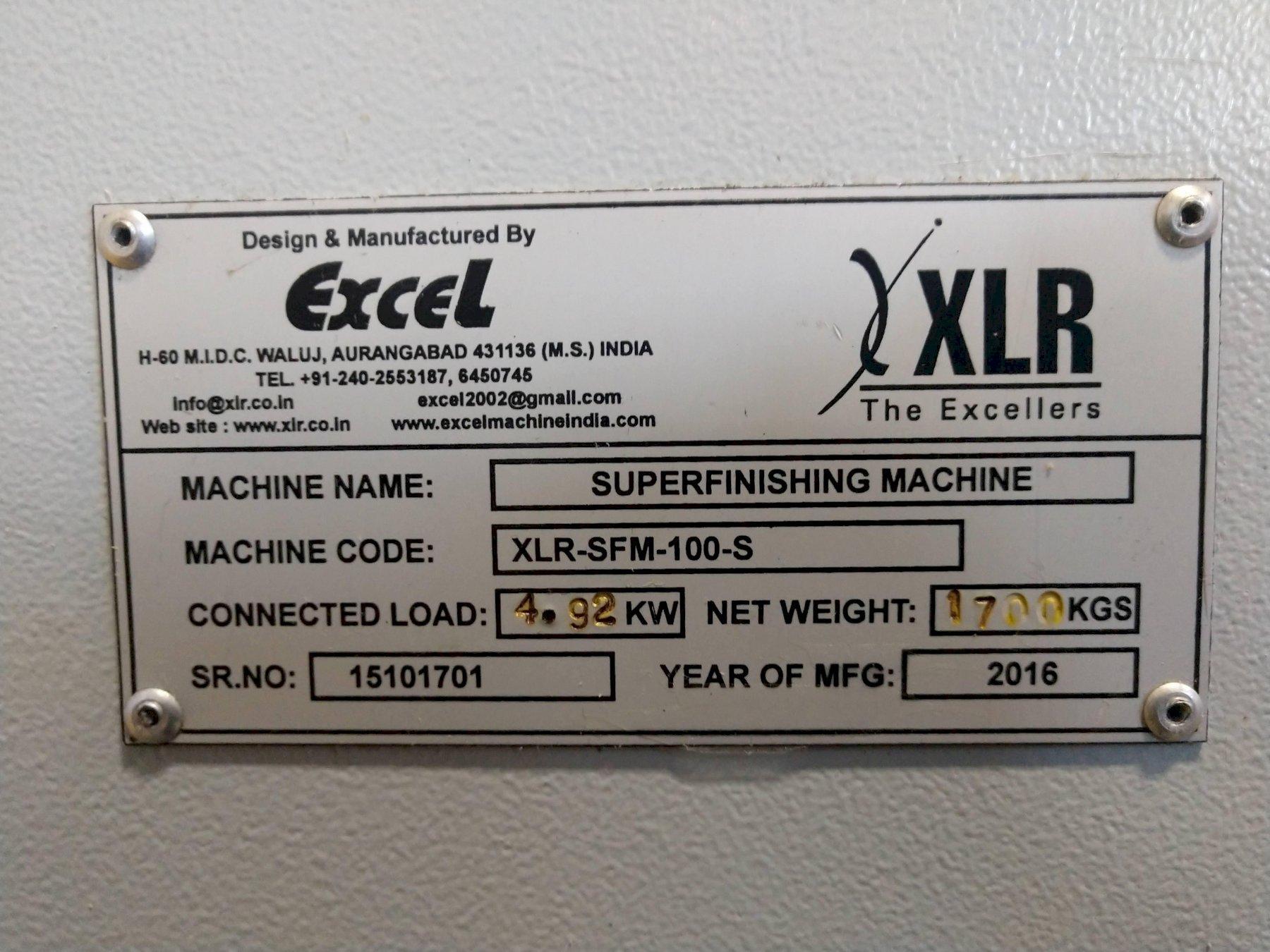

SERIAL: 15101701

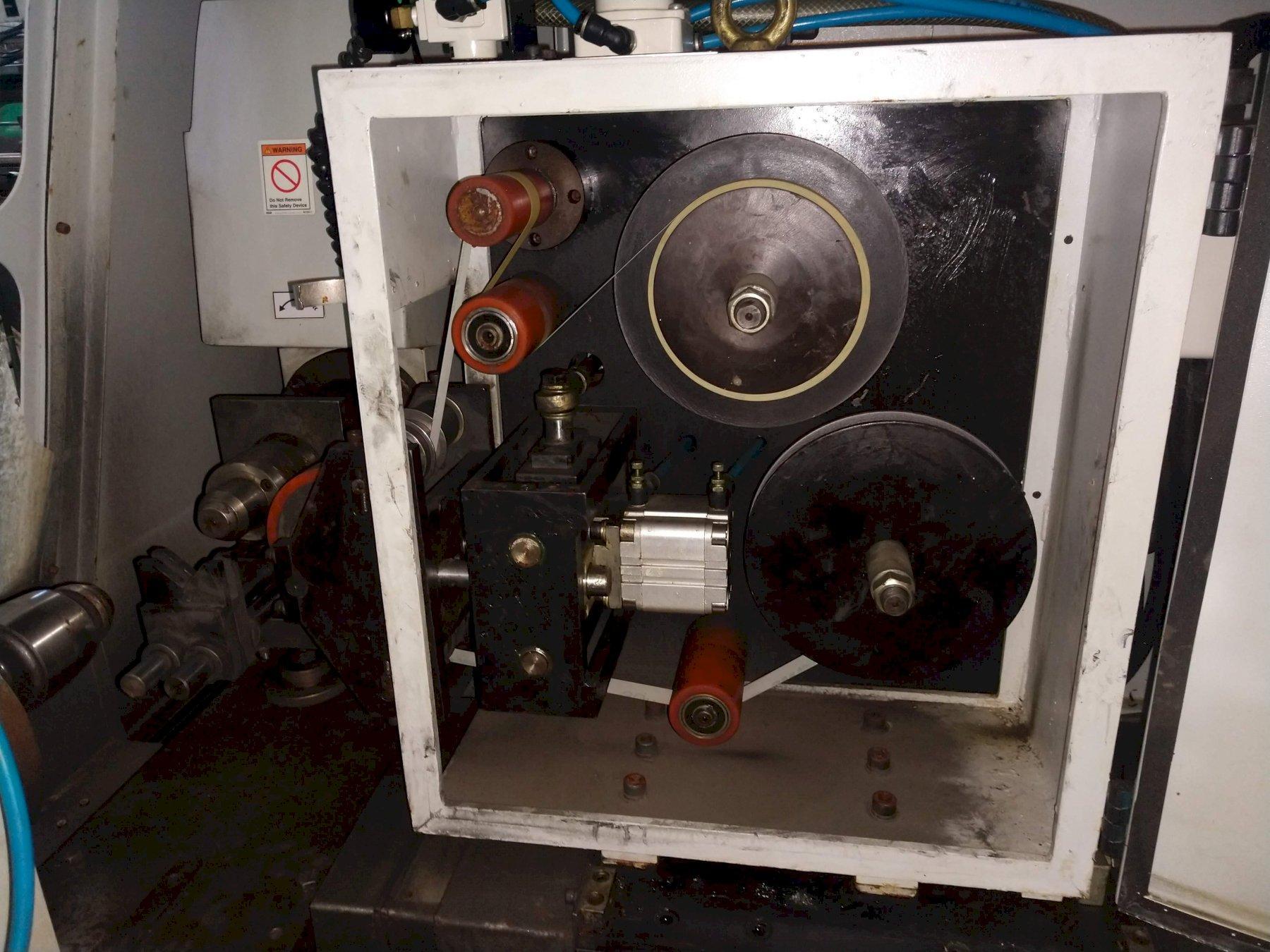

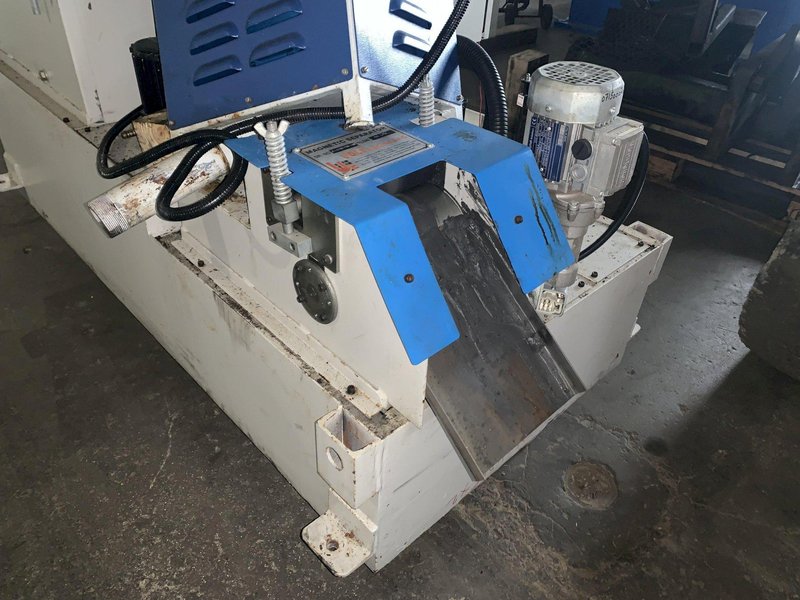

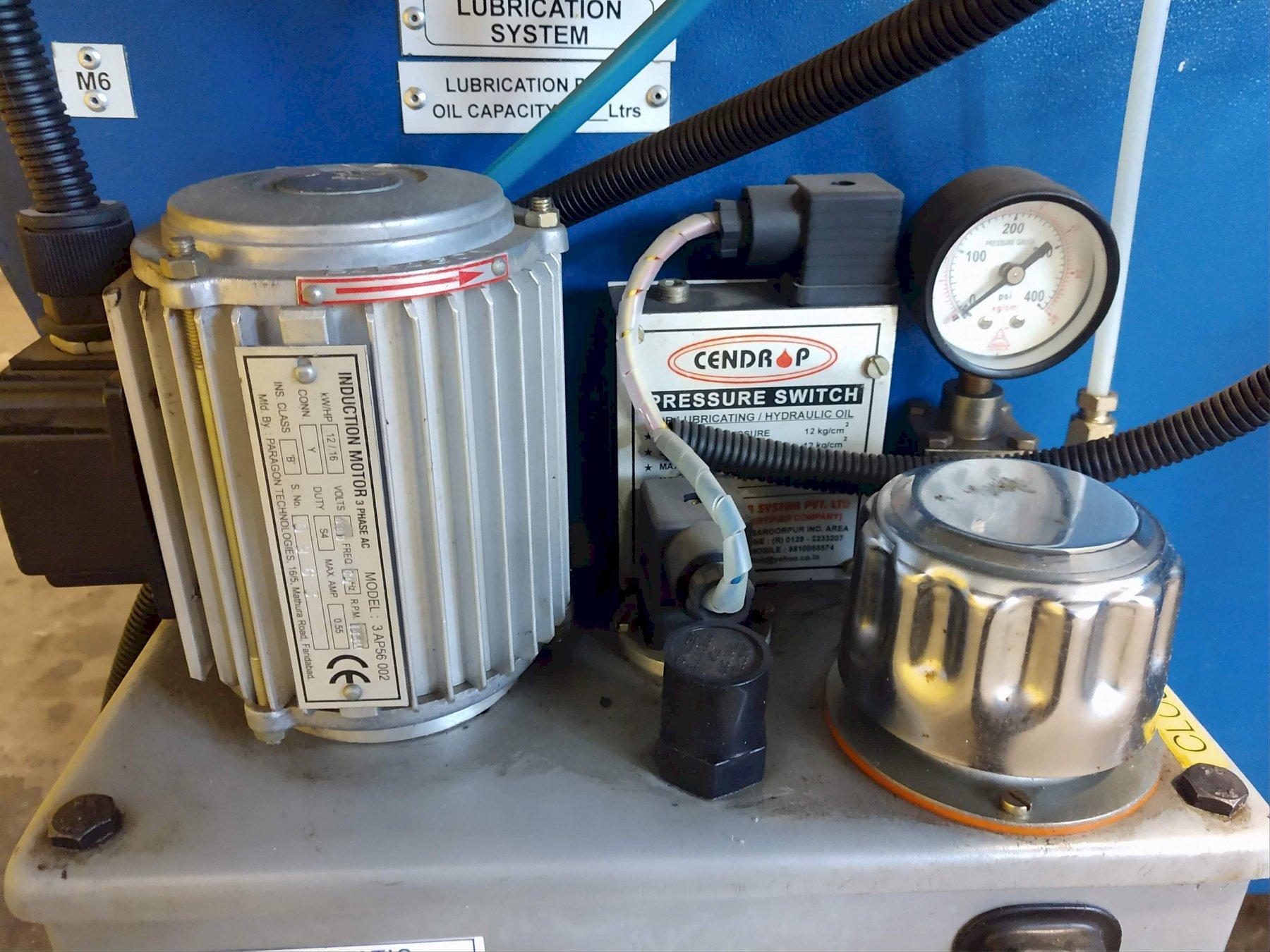

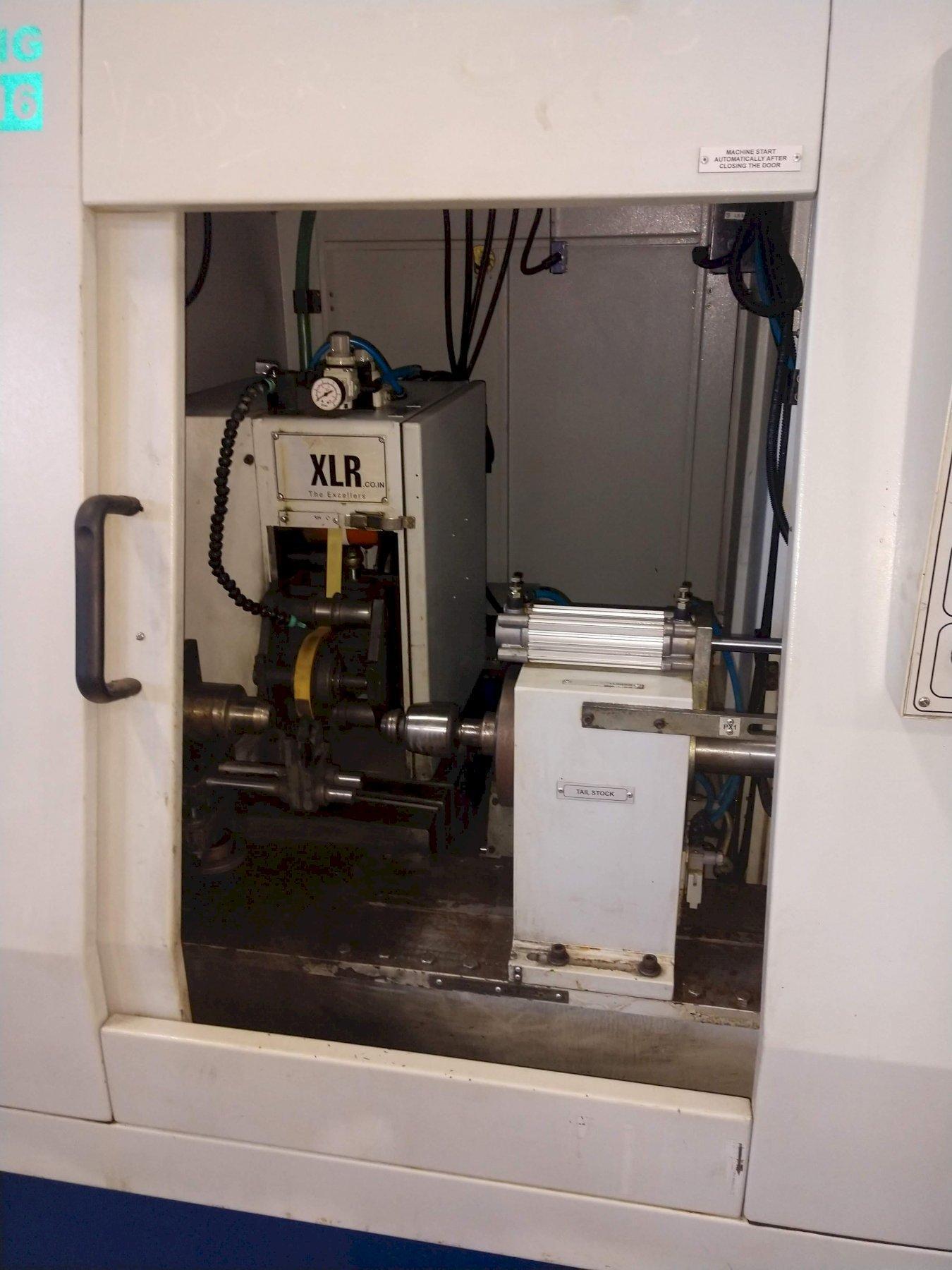

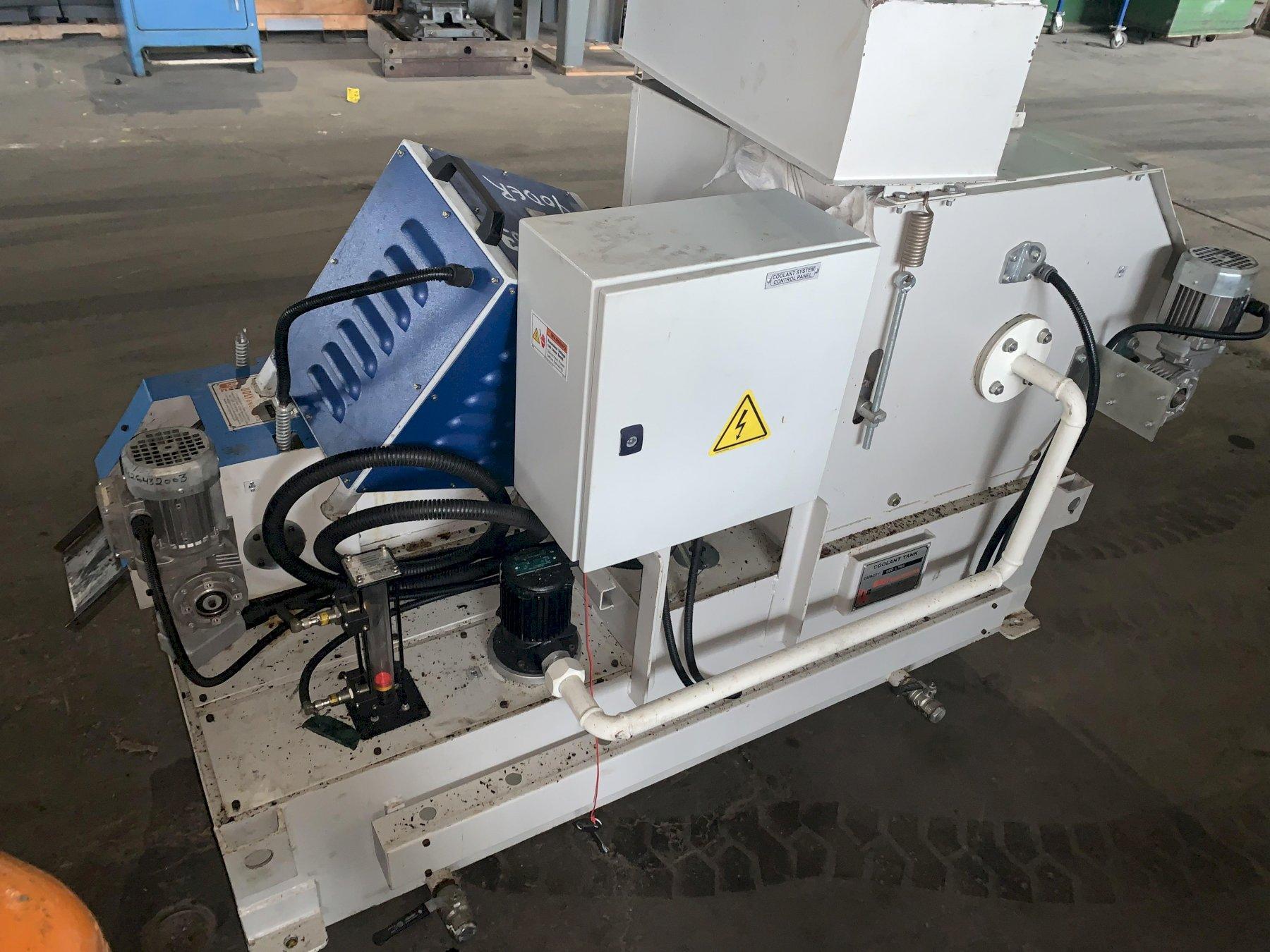

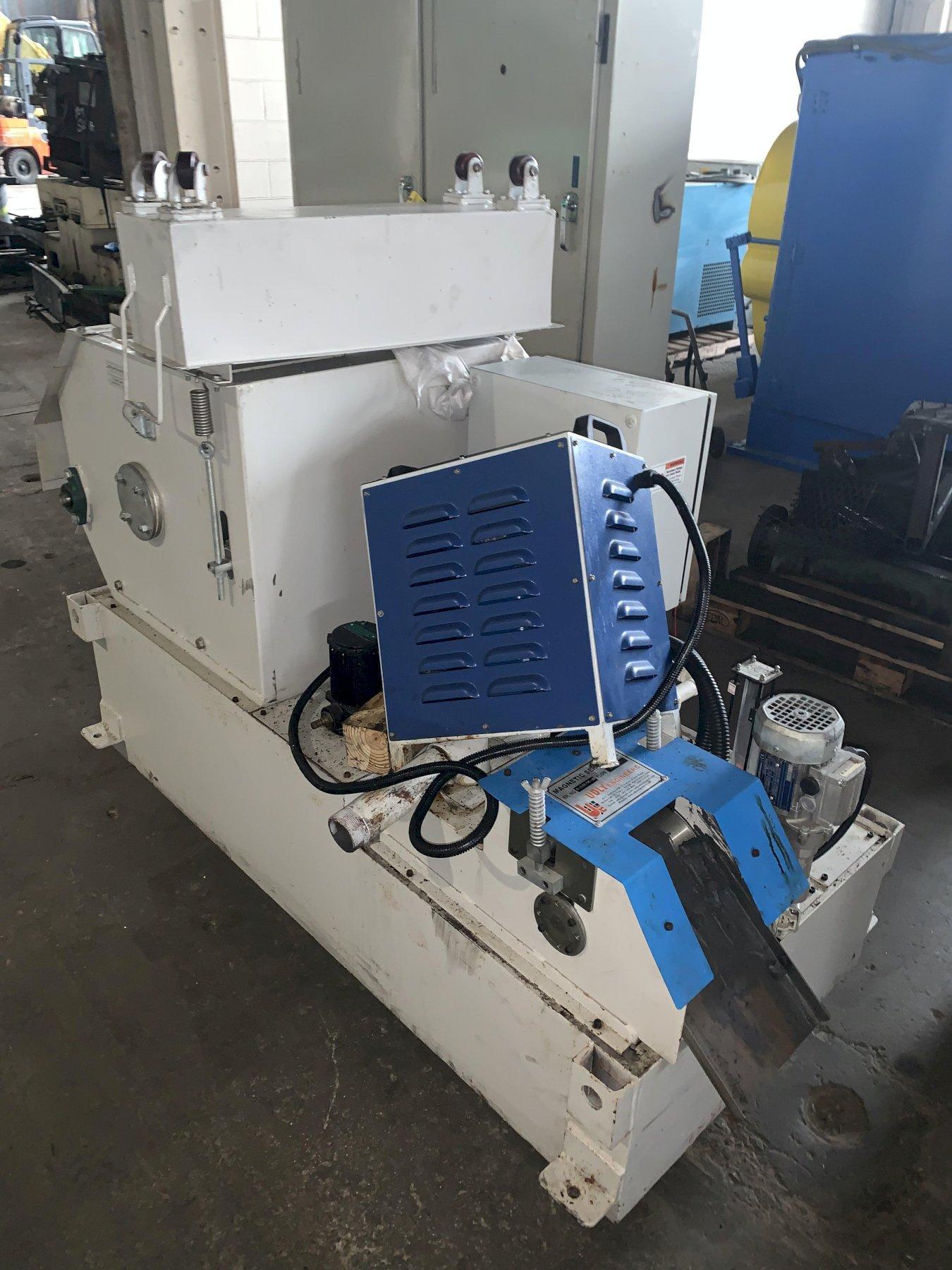

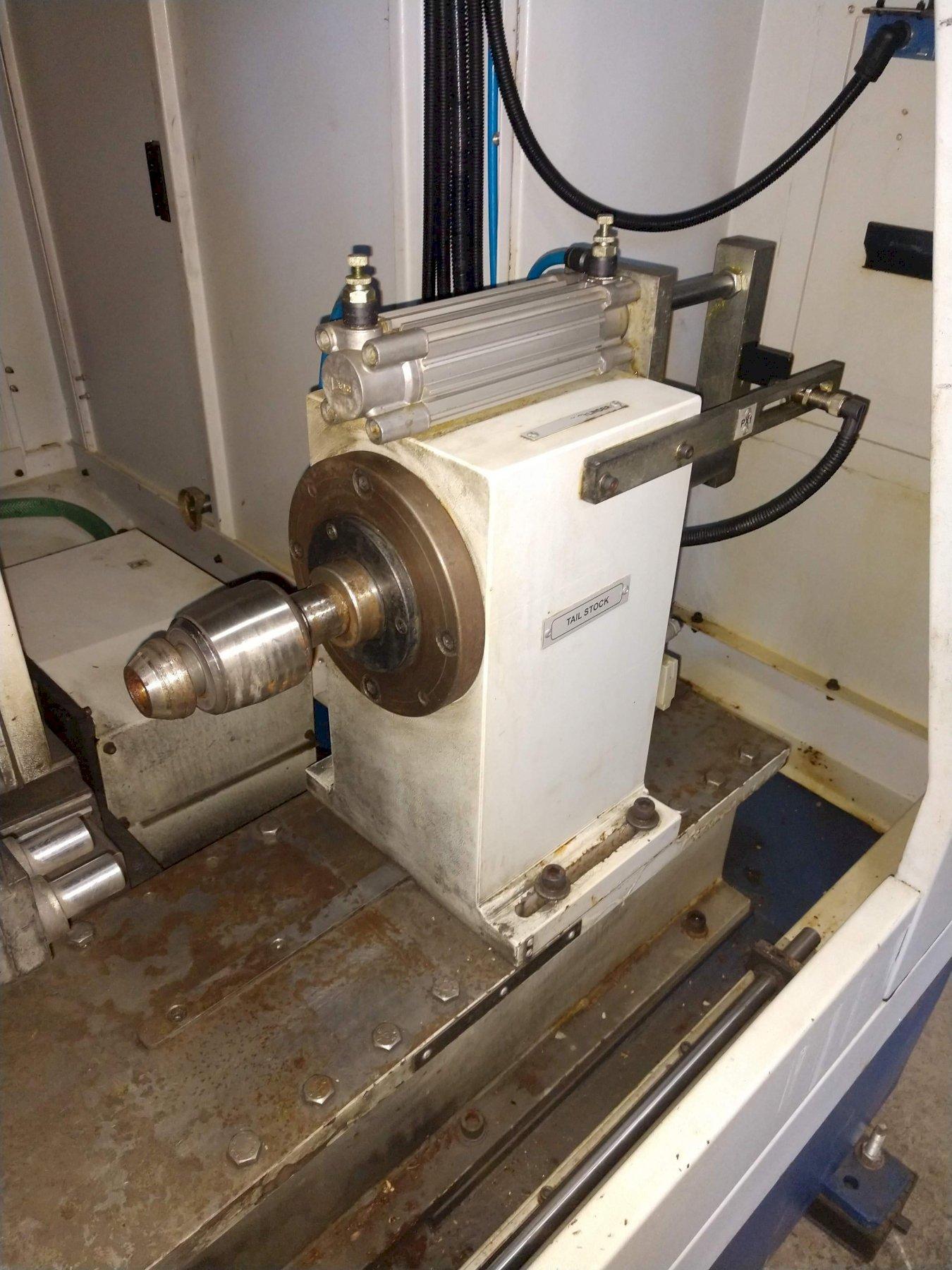

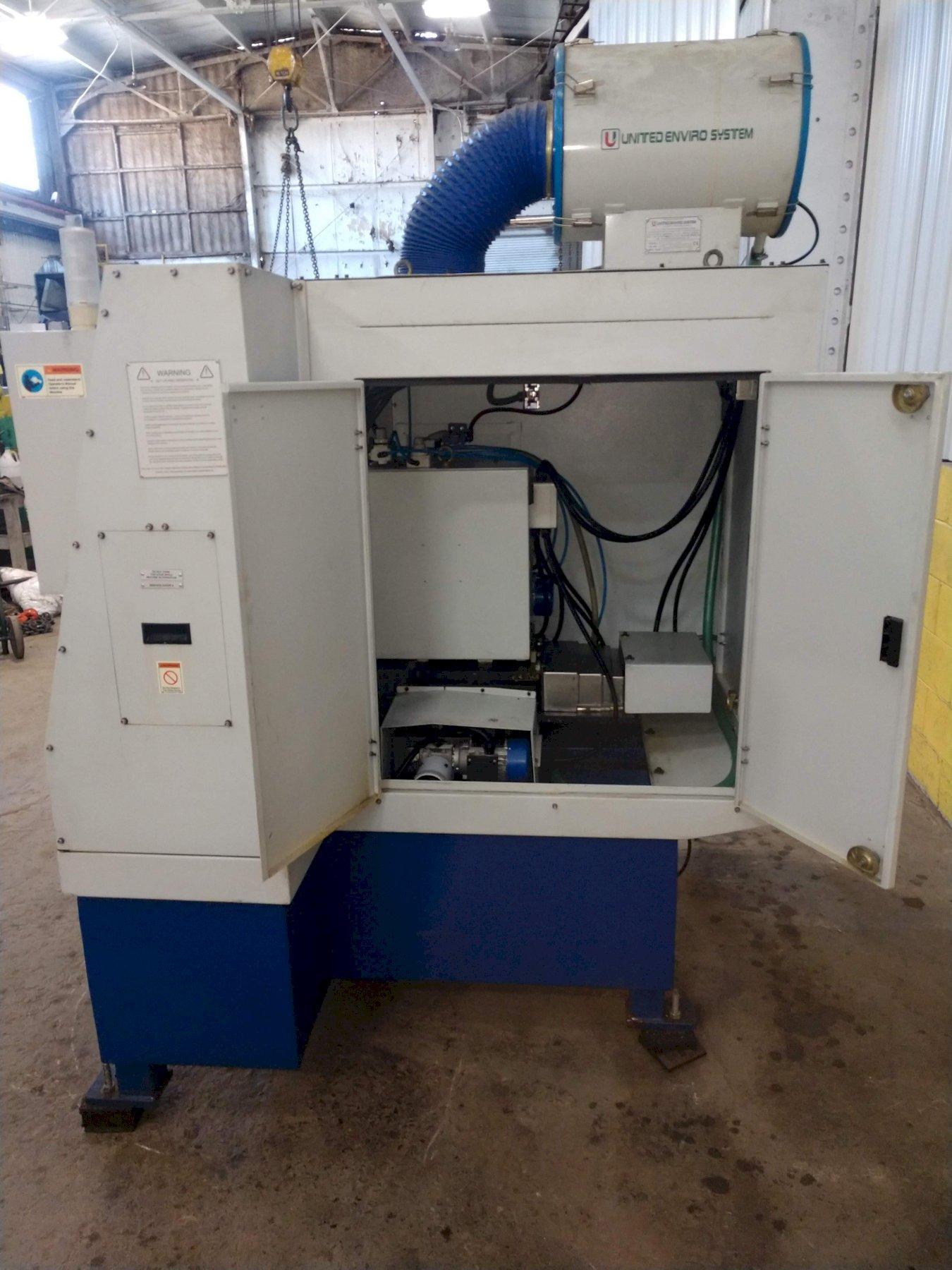

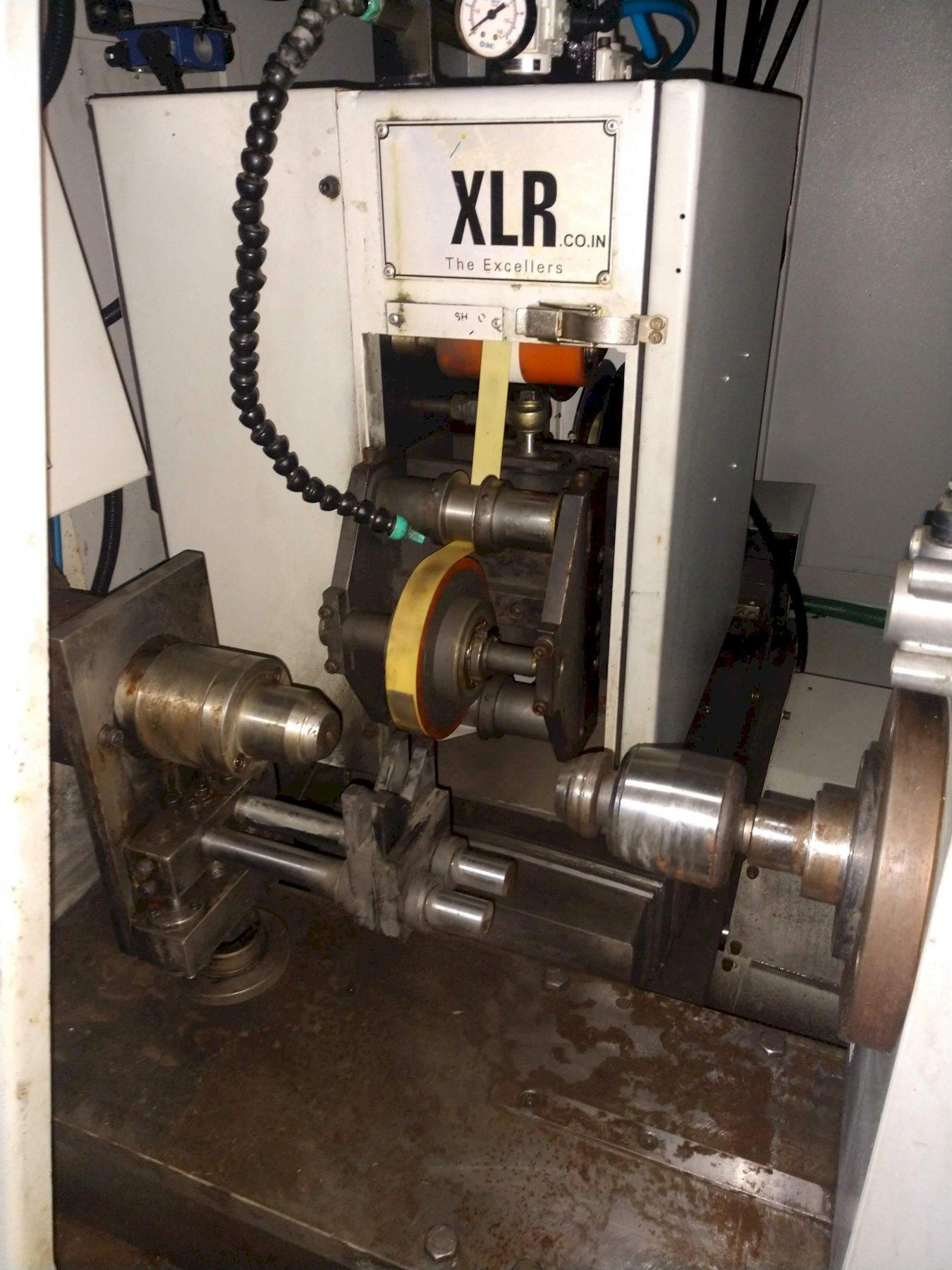

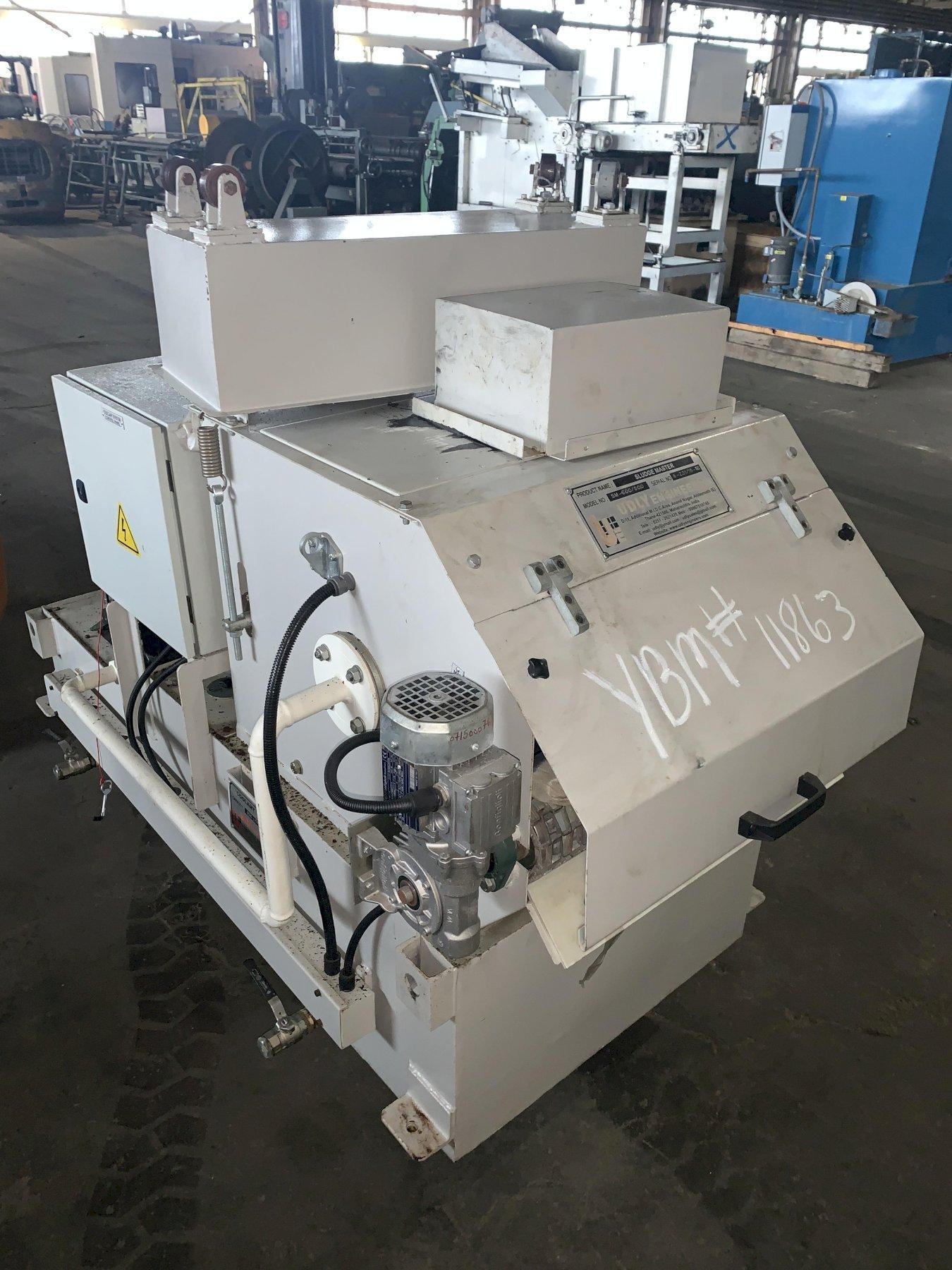

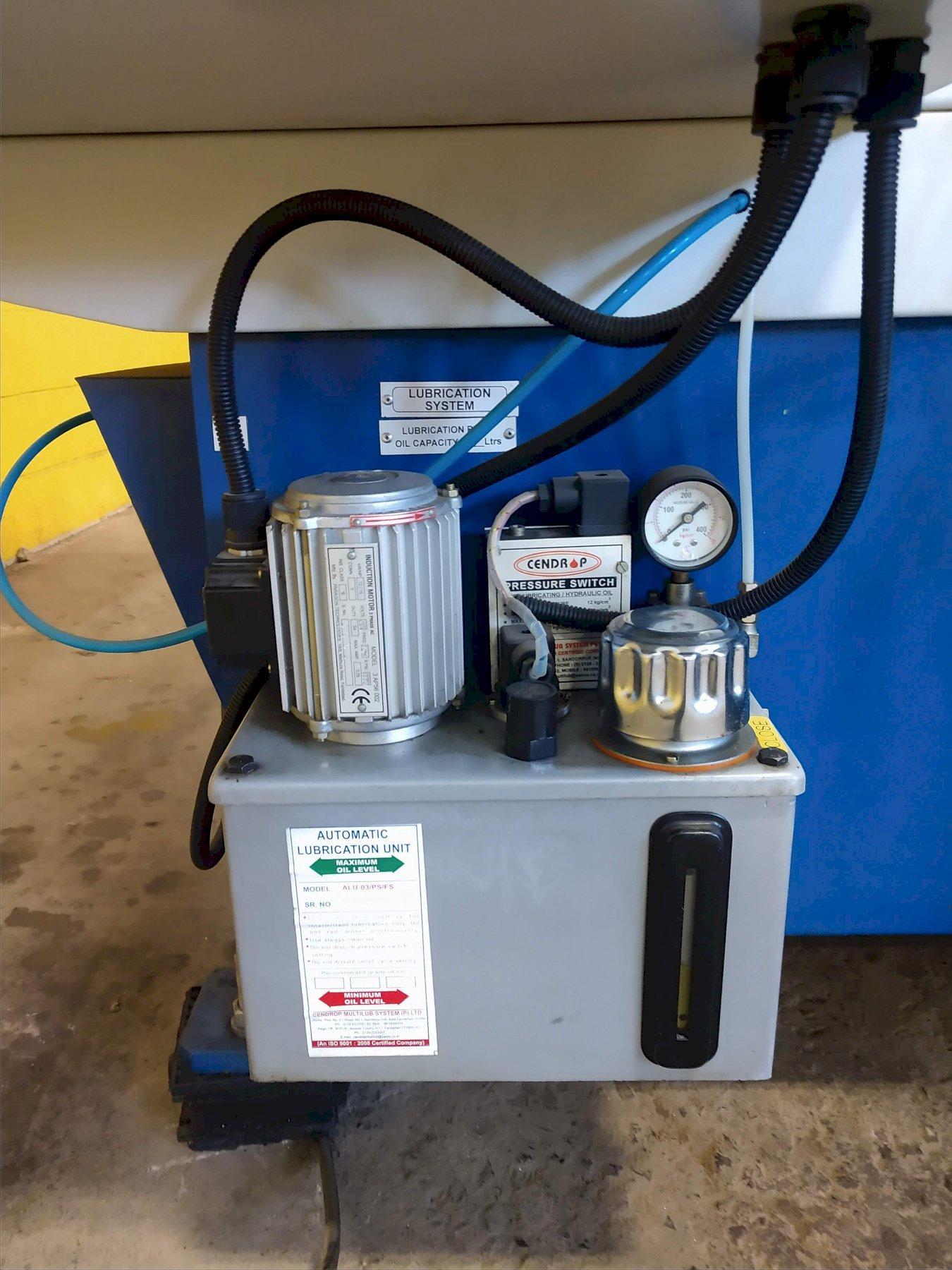

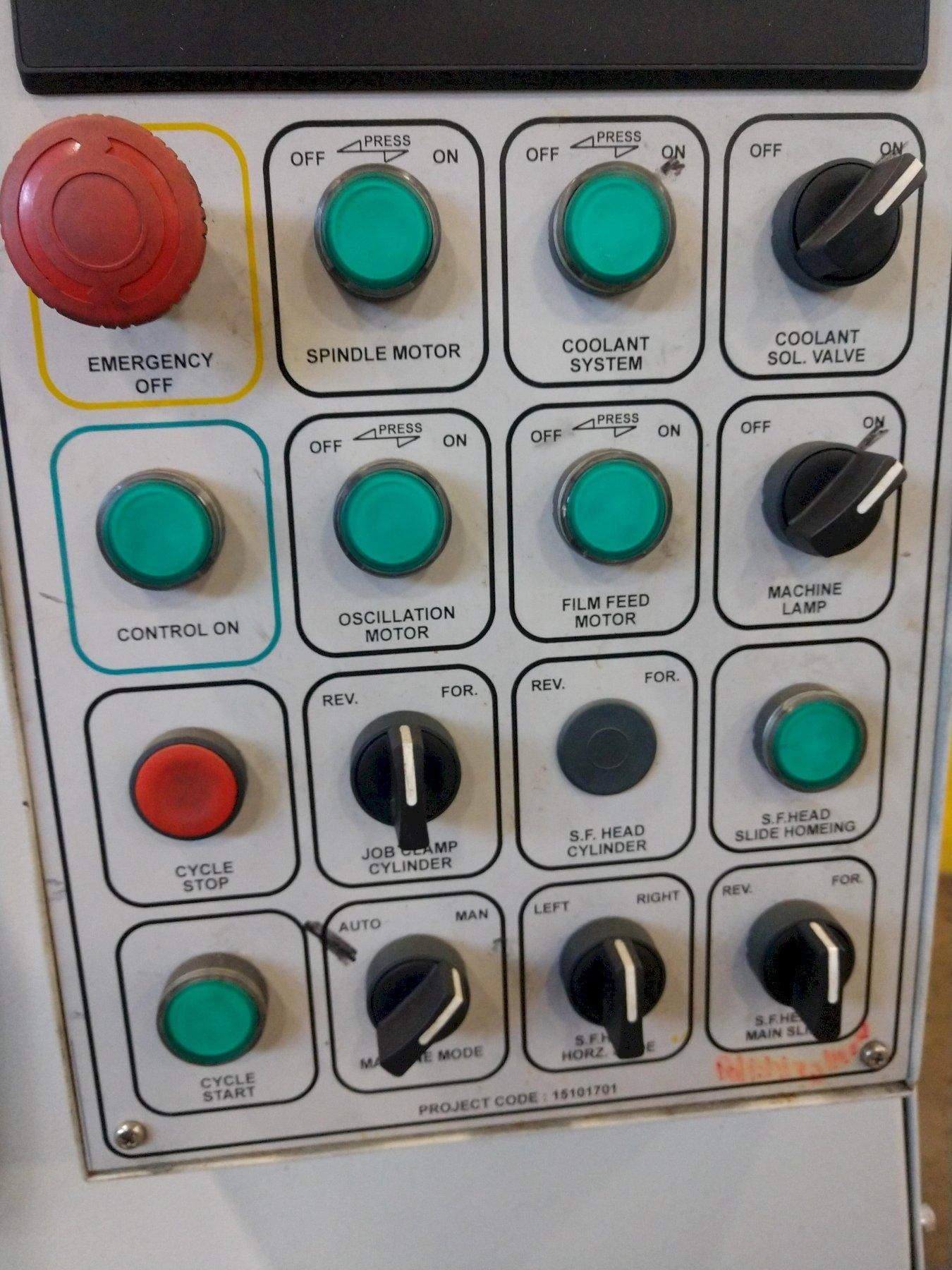

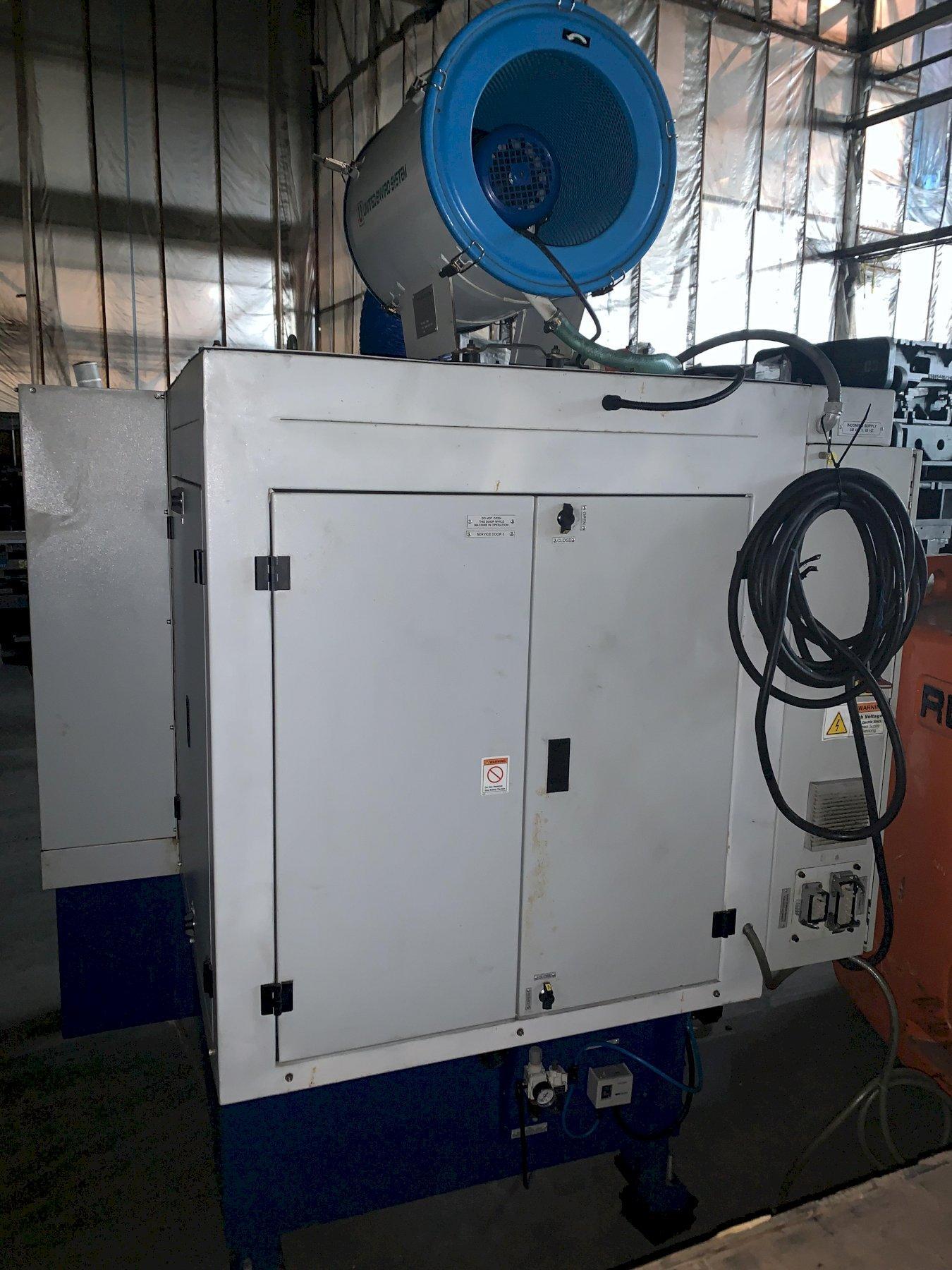

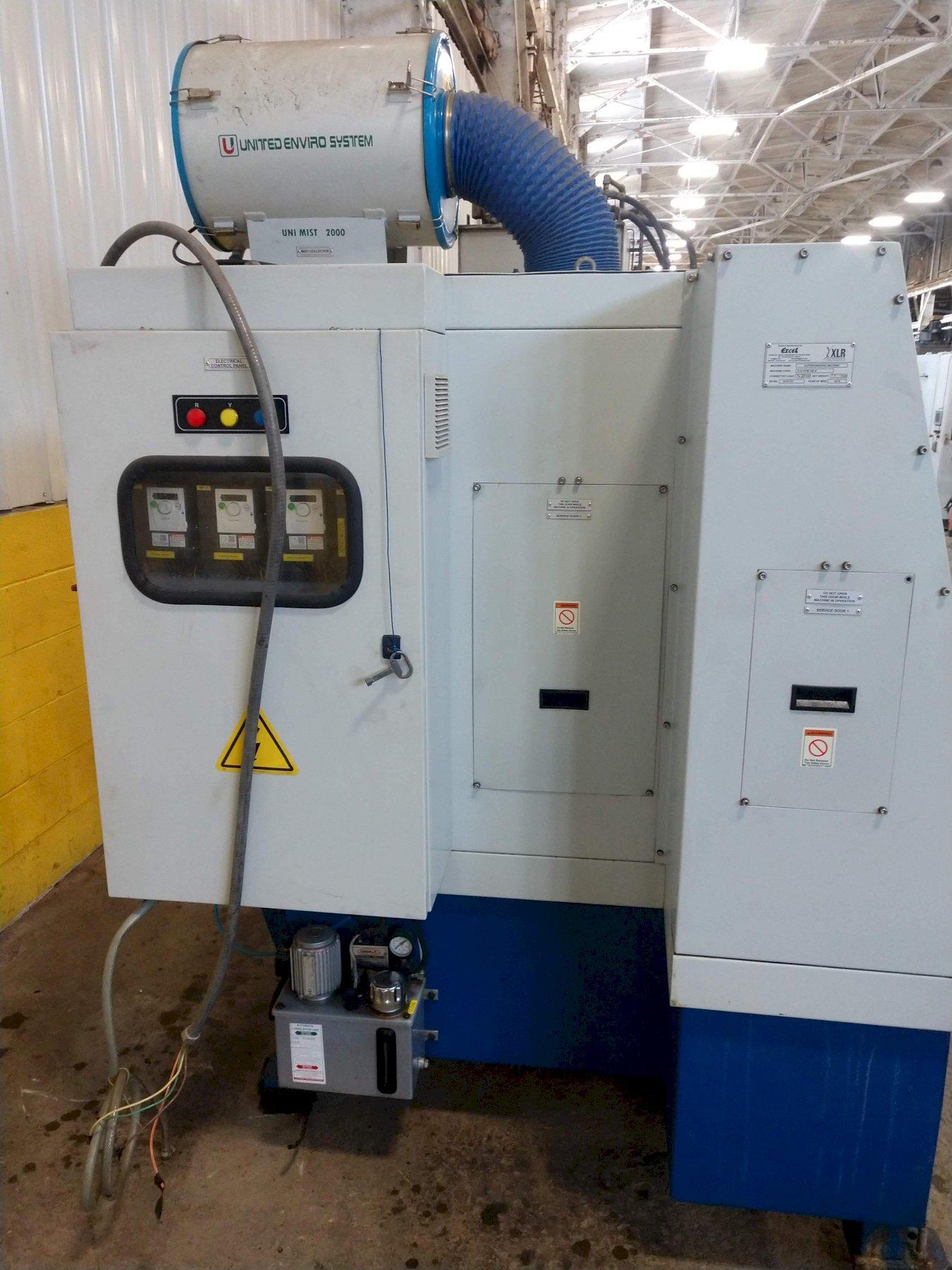

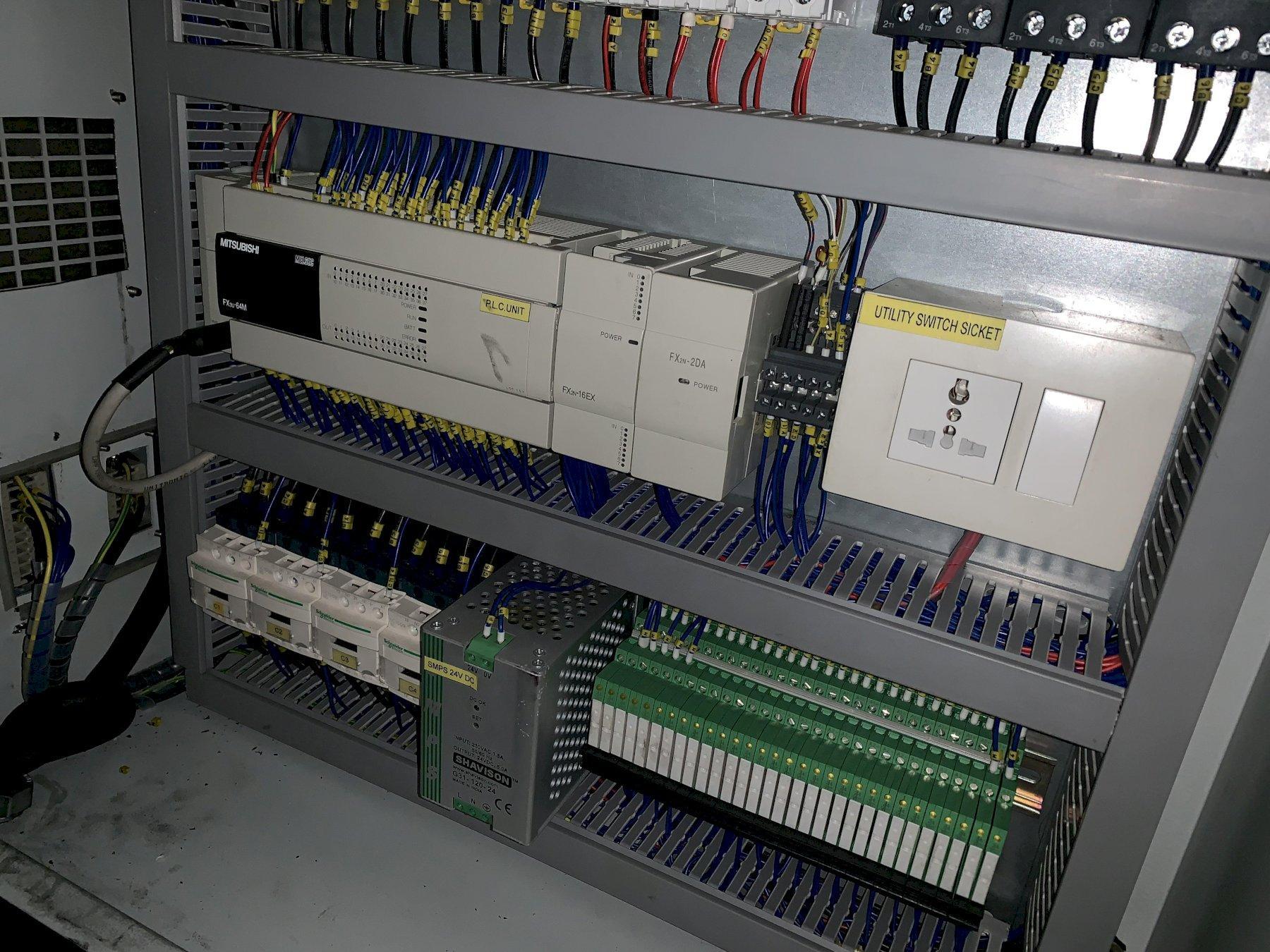

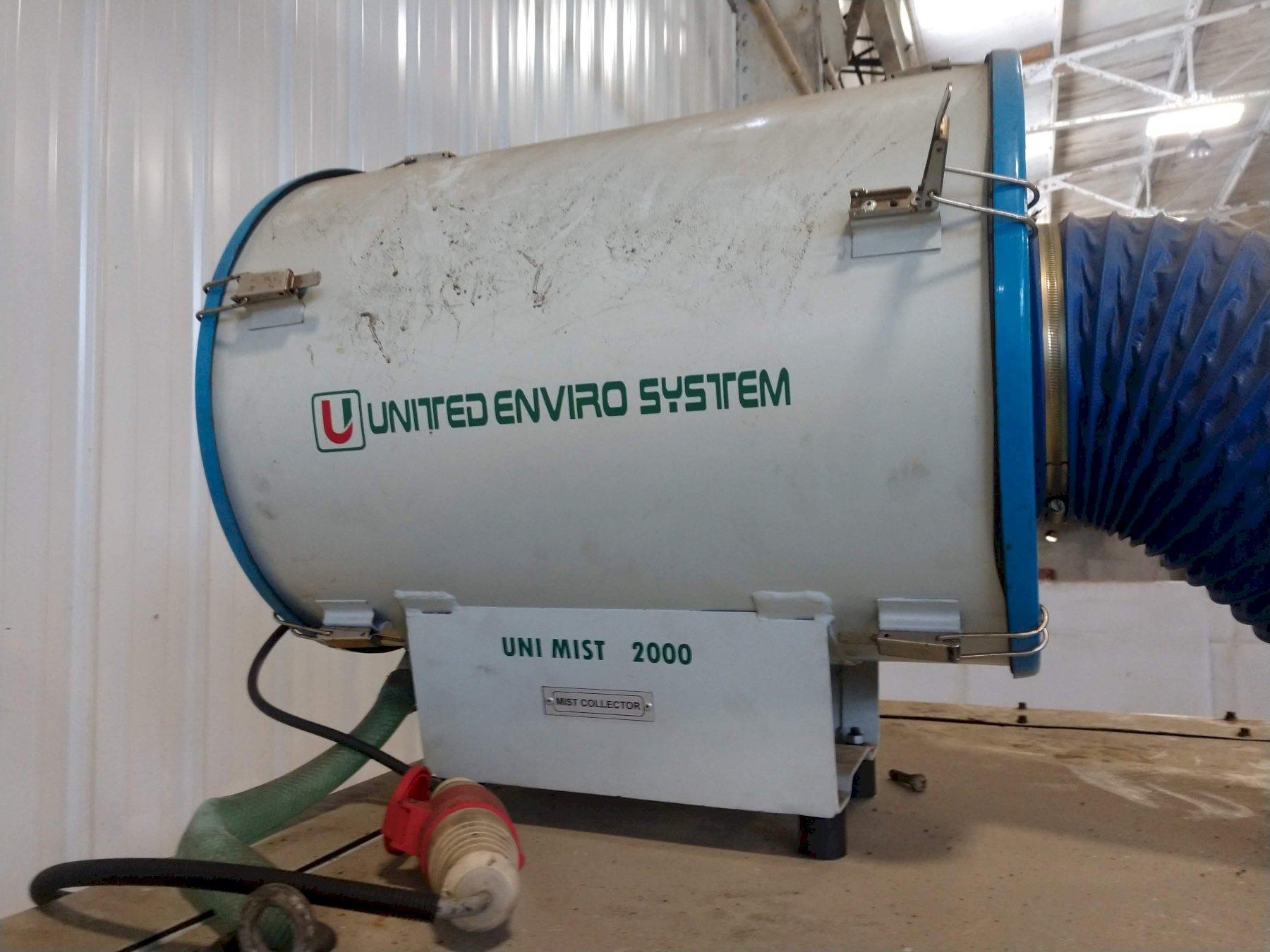

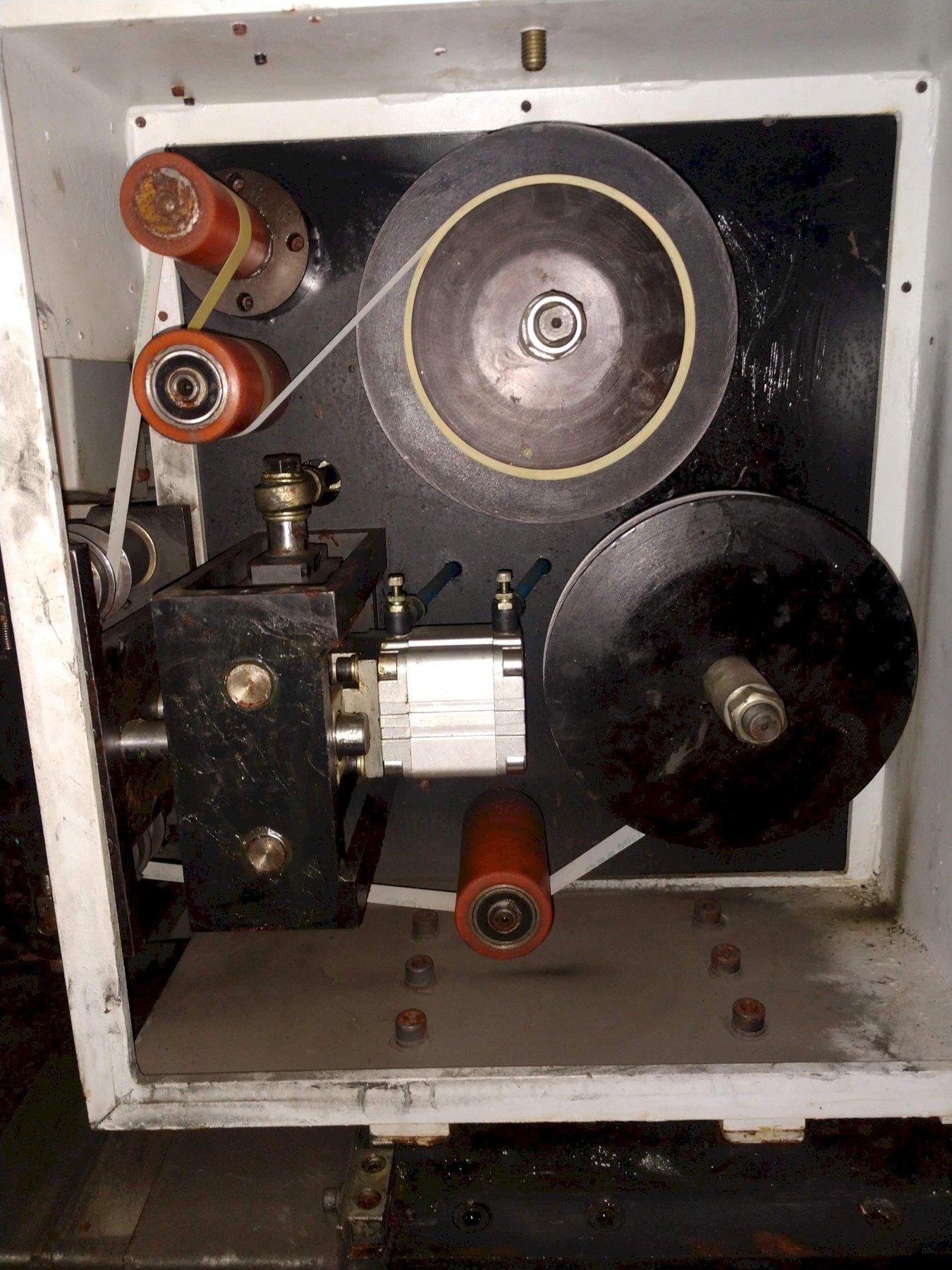

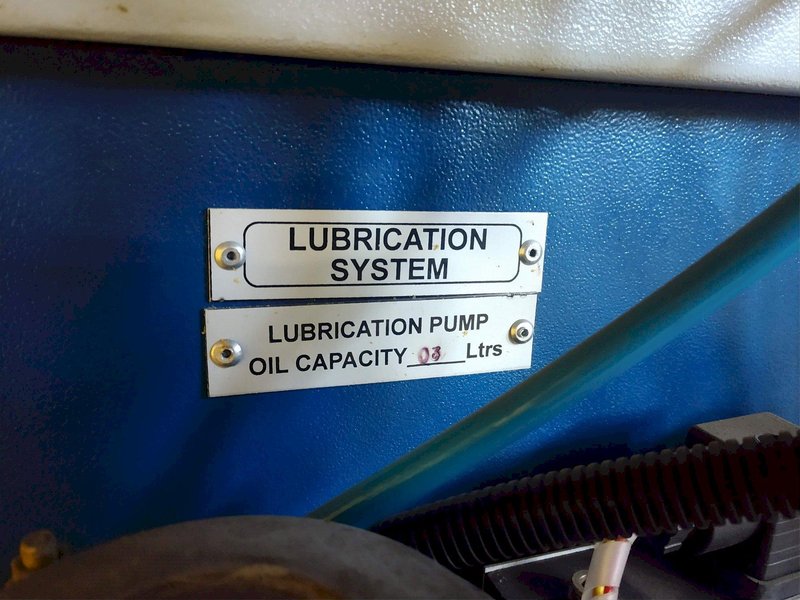

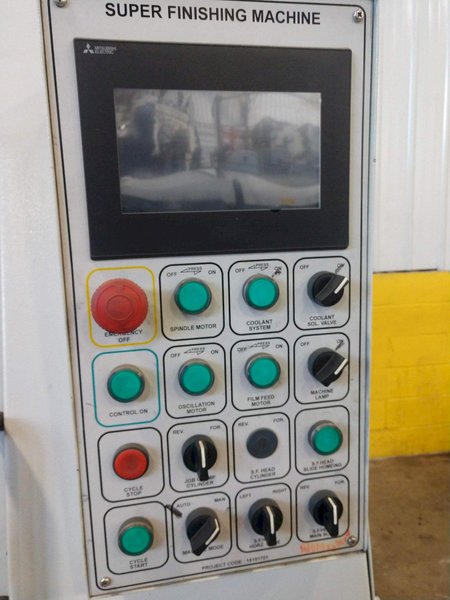

MODEL: XLR-SFM-100-S YEAR: 2016 OPERATION INFORMATION: NO. OF SUPERFINISHING HEAD (SF HEAD): 1 NO. SPINDLE SPEED: 200 TO 1000RPM (VFD) S.F HEAD MAIN SLIDE RAPID SPEED: 0-50 MM/SEC S.F.HEAD MAIN SLIDE FEED SPEED: 0-15 MM/SEC S.F.HEAD MAIN SLIDE LEAST MOVEMENT: 100 MICRONS S.F.HEAD MAIN SLIDE STROKE: 100 MM S.F.HEAD HORIZONTAL SLIDE SPEED: 120 MM/MIN S.F.HEAD HORIZONTAL SLIDE STROKE: 100 MM SF FILM FEED SPREAD: 25-125 MM/MIN SF FILM OSCILLATION SPEED: 0-500 OSC/MIN POLISHING TIME: 0-100 SEC COOLANT LPM: 63 LPM SUPERFINISHING FILM: SUPER FINISHING FILM SIZE: WIDTH 20 MM X L 5O MTRS SPECIFICATION: 30 UICRON MAKE: MIPOX FEATURES: MANUAL LOADING/UNLOADING TYPE MACHINE PRESENT PRECISE JOB PARAMETER SETTING AS PER PROGRAM COLOR TOUCH SCREEN HMI SAFTEY DOOR WITH INTERLOCK MANUAL SETTING FACILITY FROM OPERATING PANEL MIST COLLECTOR PROVIDED FOR COOLANT FUMES COLLECTION GENERATED DURING PROCESS JOB HOLDING BETWEEN CENTER BY PNEUMATIC ACTUATION (CYLINDER) PROVIDE ON TAIL STOCK MACHINE IS PLC CONTROL WITH HMI (MITSUBISHI PLC & HMI) AUTOMATIC MICRO FINISHING SUPERFINISHING FILM FEEDING AUTOMATIC LUBRICATION FOR SLIDE INCLUDES: UDLY ENGINEERS MODEL SM-600-500 SLUDGE MASTER UNITED ENVIRO SYSTEM UNMIST UDLY ENGINEERS MAGNETIC SEPARATOR |
|
