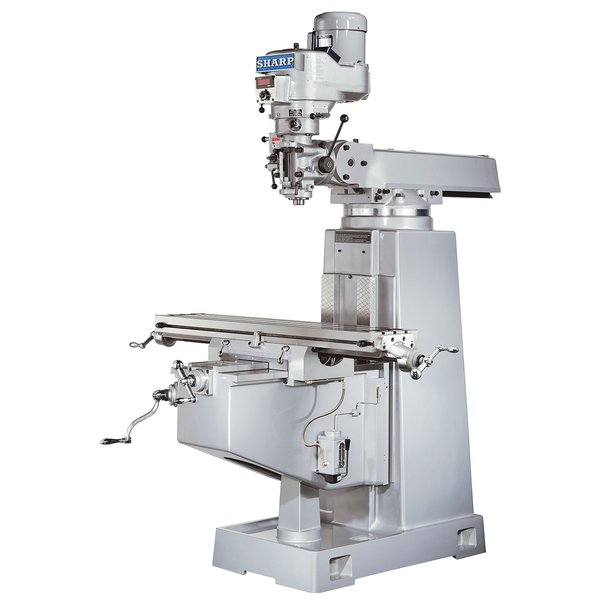

NEW 10" x 54" SHARP MODEL TMV VERTICAL KNEE MILL

Brand

SHARP

Category

Milling Machines

Type

Millers, Vertical

Model

TMV

Stock #

14552

Year

Not specified

Condition

New

Location

Not specified

Specifications
Files & Videos

NEW 10" x 54" SHARP MODEL TMV VERTICAL KNEE MILL

These vertical knee mills are equipped with vari-speed drive, available with optional digital vari-speed. The dove tail ways chromed, and the box ways are hardened and ground.

Head
To dissipate heat in the 3 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.
The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed. This allows a vibration free milling even at high speed
Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.
The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.
Beside swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.
A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.0004” TIR- the best in the industry.
Column, Table and Knee
Hardened and ground box ways on column and saddle.
Turcite coated slideways for better resistance to wear and retention of lube oil.
Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations.
Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.
Hardened leadscrews on table and saddle for better resistance to wear.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area. "Bridgeport-style" mill

Why DVS head?
High reliability with fewer moving parts than regular vari speed head Dynamic brake Low voltage control Large Digital rpm display Fully enclosed display unit Dependable Inverter Drive System Machine can run on single phase or 3 phase electricity Safety device prevents machine from self starting after power failure or after emergency stop being pushed

TABLE
Working surface	10”x 54"
T-slot number, size	3, 5/8"
CAPACITY
Table travel (X-axis)	35"
Saddle travel (Y-axis)	16.3"
Ram travel	18.5"
Quill travel (Z-axis)	5"
Knee travel	15.3"
Throat distance (min-max)	9.8” - 28.3"
Spindle gage line to table top	1.6”- 16.9"
SPINDLE
Motor	3 HP
Wiring voltage	220V / 440V, 3 Ph, 60 Hz
Taper	R-8
Speed (vari-speed)	60-4,500 RPM
Quill feed (IPR)	0.0015, 0.003, and 0.005
Spindle Accuracy	0.0002" TIR
Head tilt; right to left (each way)	90º
Head tilt; up-and-down (each way)	45º
DIMENSIONS AND WEIGHT
Floor area (w x d)	70" x 75"'
Height	88"
Net weight (lbs; approximately)	3,000

STANDARD ACCESSORIES:

Hardened and ground box ways
Draw bar
Front and rear way cover
One-shot lube system
Toolbox with tools

OPTIONAL ACCESSORIES:

Digital Variable Speed (DVS) Head
Power feed system on table, saddle & knee
Power draw bar
Riser block (4" or 7")
Right angle milling attachment
Coolant system with chip pan
Milling vise
Clamping kit
Halogen work light
R-8 Collets

TMV
TABLE
Working surface	10”x 50"
T-slot number, size	3, 5/8"
CAPACITY
Table travel (X-axis)	35"
Saddle travel (Y-axis)	16.3"
Ram travel	18.5"
Quill travel (Z-axis)	5"
Knee travel	15.3"
Throat distance (min-max)	9.8” - 28.3"
Spindle gage line to table top	1.6”- 16.9"
SPINDLE
Motor	3 HP
Wiring voltage	220V / 440V, 3 Ph, 60 Hz
Taper	R-8
Speed (vari-speed)	60-4,500 RPM
Quill feed (IPR)	0.0015, 0.003, and 0.005
Spindle Accuracy	0.0002" TIR
Head tilt; right to left (each way)	90º
Head tilt; up-and-down (each way)	45º
DIMENSIONS AND WEIGHT
Floor area (w x d)	70" x 75"'
Height	88"
Net weight (lbs; approximately)	3,000
