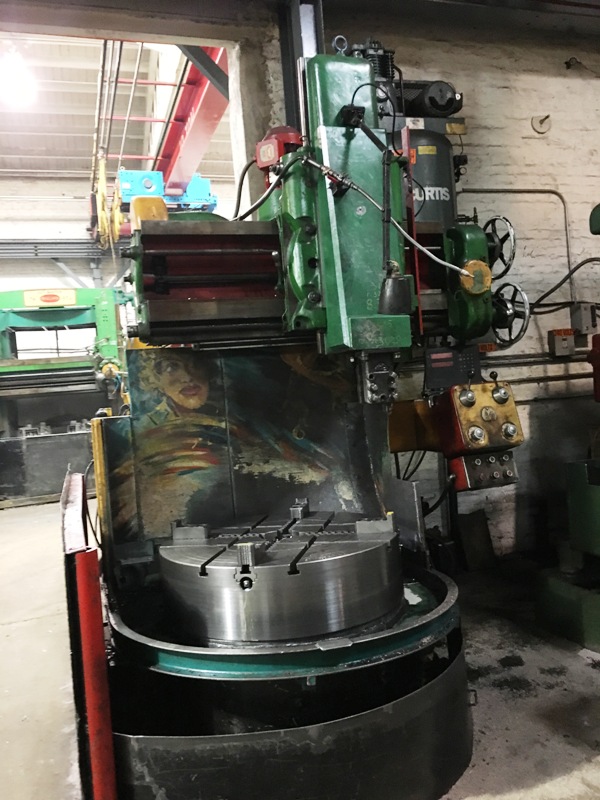

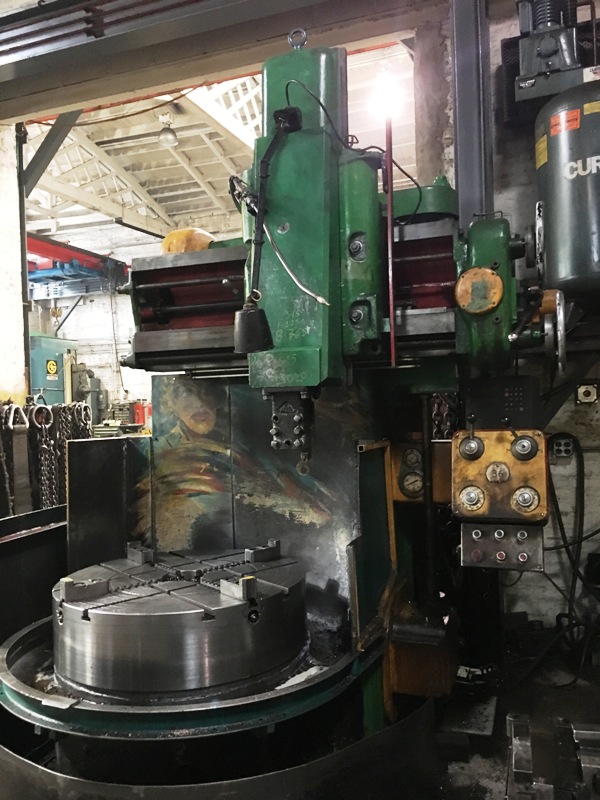

36" WEBSTER & BENNETT VERTICAL BORING MILL

36" WEBSTER & BENNETT VERTICAL BORING MILL

Brand

WEBSTER & BENNETT

Category

Lathes & Turning Machines

Type

Lathes, VTL (Vertical Turret Lathe)

Model

Not specified

Stock #

13360

Year

1958

Condition

Used

Location

Illinois

Specifications
Files & Videos

36" WEBSTER & BENNETT VERTICAL BORING MILL

Serial No. 512450

Motor Driven with 20 HP, 3-Phase, 60 Cycle AC Motor & Controls

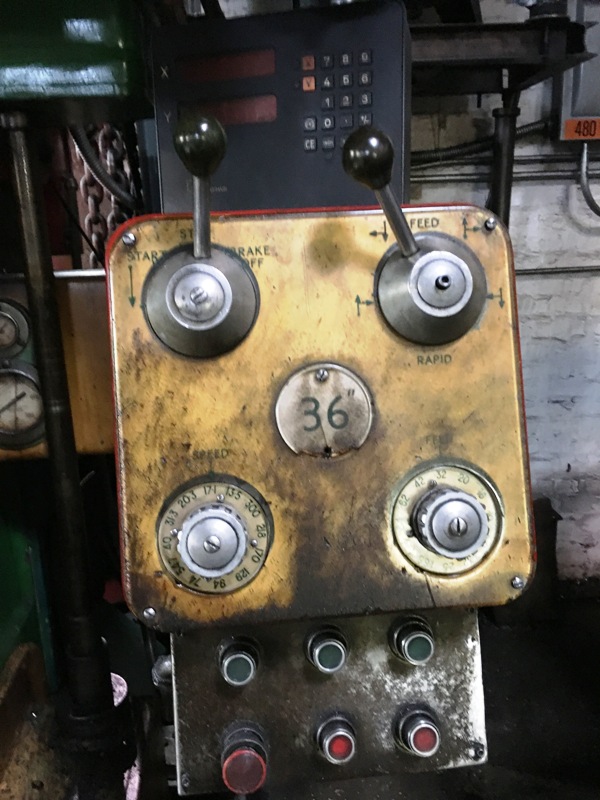

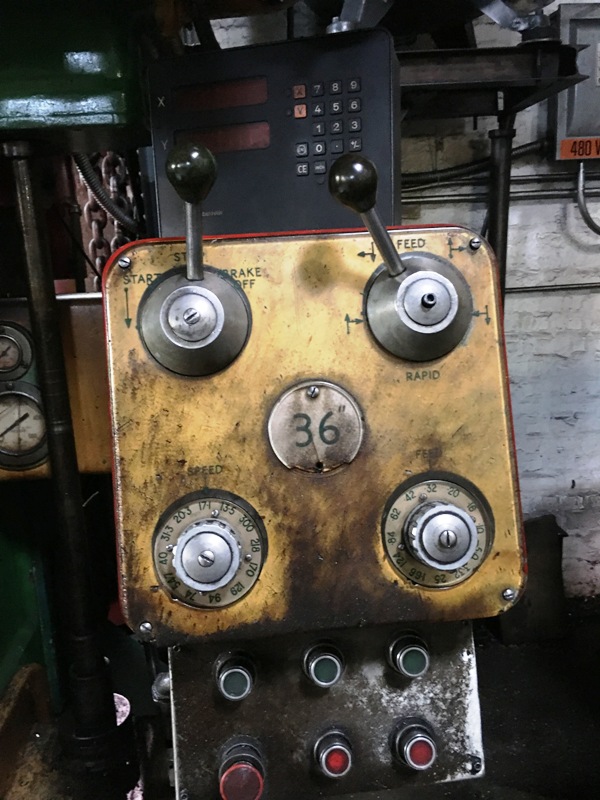

EQUIPPED WITH: Heidehain 2-Axis Digital Readout, 36" 4- Jaw Chuck

SPECIFICATIONS:

Table Diameter 36″
Maximum Swing 46″
Maximum Diameter Turned With Turret                  37″
Maximum Height Under Face of Turret                  37″
Height Under Cross Rail w/Adjustable Stop Bar 27 1/2″
Vertical Travel of Turret Slide 34″
Table Speeds (12)                                    13.5 - 300 RPM
Feeds (12)                                          .10 to 5.00 IPR
Approximate Dimensions 74" L-R x 102" F-B x 131" H
Approximate Weight 14,000 Lbs.

No files or videos to display
