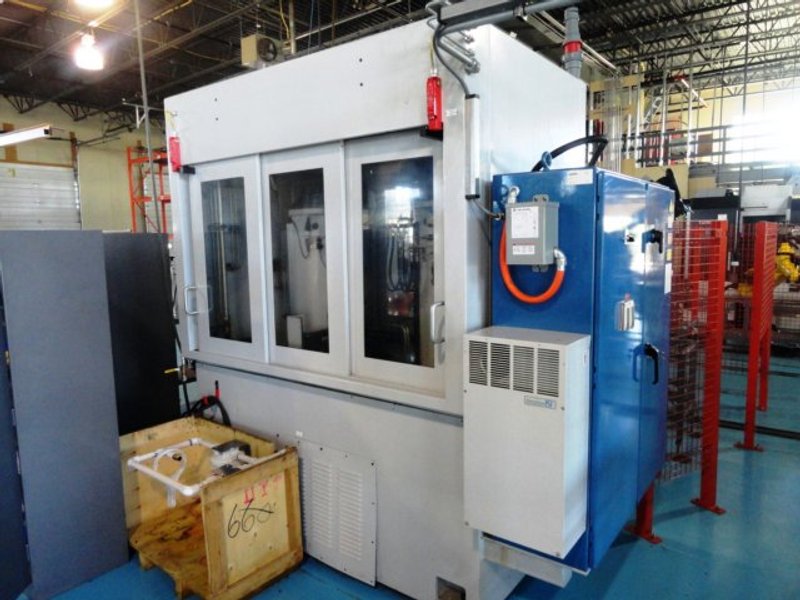

NAGEL MODEL ECO 40-2 CNC TWIN SPINDLE VERTICAL HONING MACHINE

NAGEL MODEL ECO 40-2 CNC TWIN SPINDLE VERTICAL HONING MACHINE

Brand

NAGEL

Category

Honing Machines

Type

Hones

Model

ECO 40-2

Stock #

11749

Year

2012

Condition

Used

Location

Illinois

Specifications
Files & Videos

NAGEL MODEL ECO 40-2 CNC TWIN SPINDLE VERTICAL HONING MACHINE
New 2012

EQUIPPED WITH

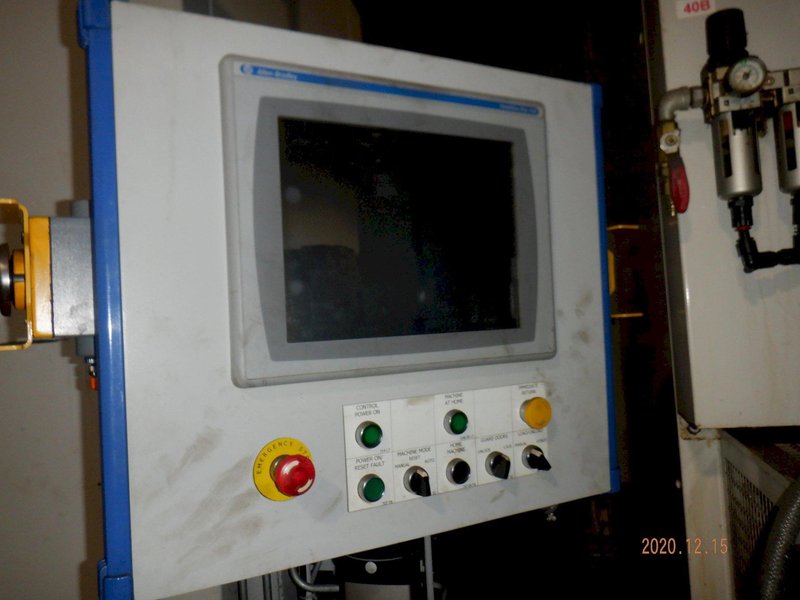

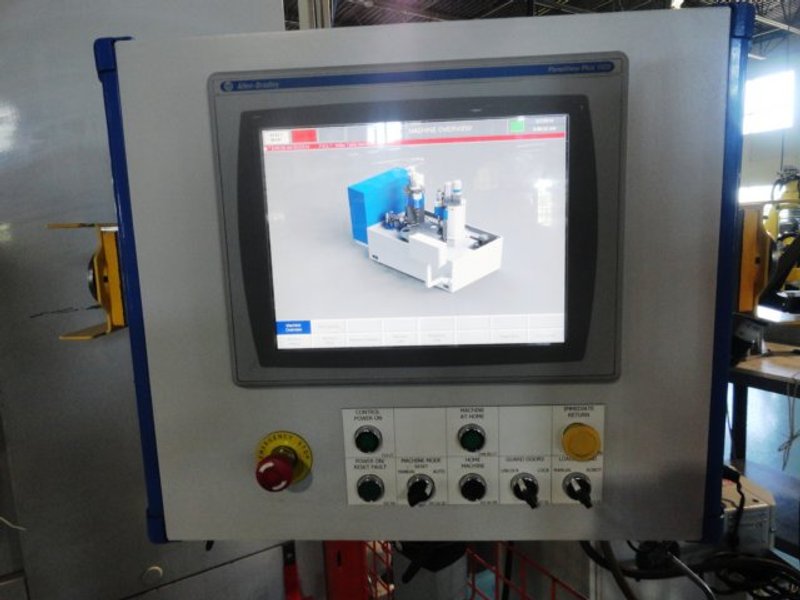

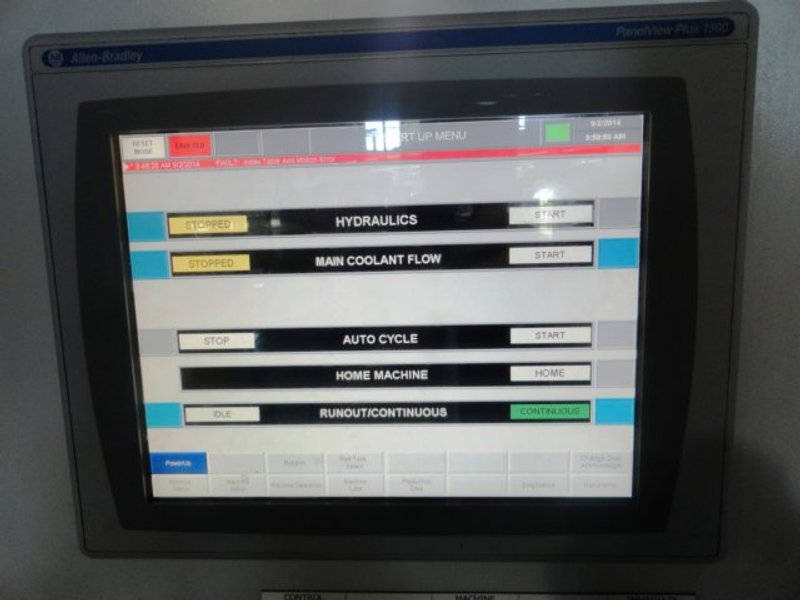

Allen Bradley Panel View Plus 1500 CNC Controls
AB Servo Motor Controlled Stroking System
In Process Gauging
Post Process Gauging

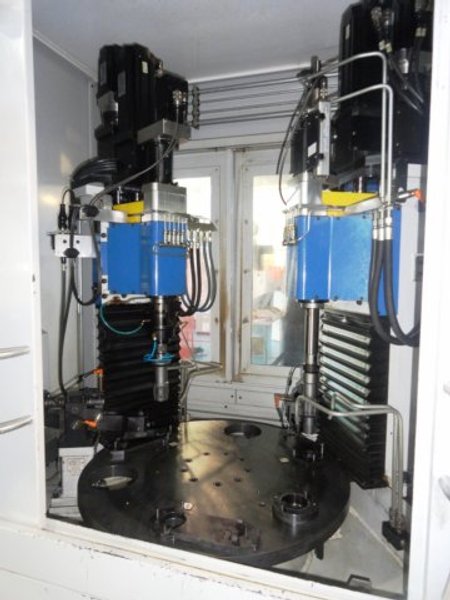

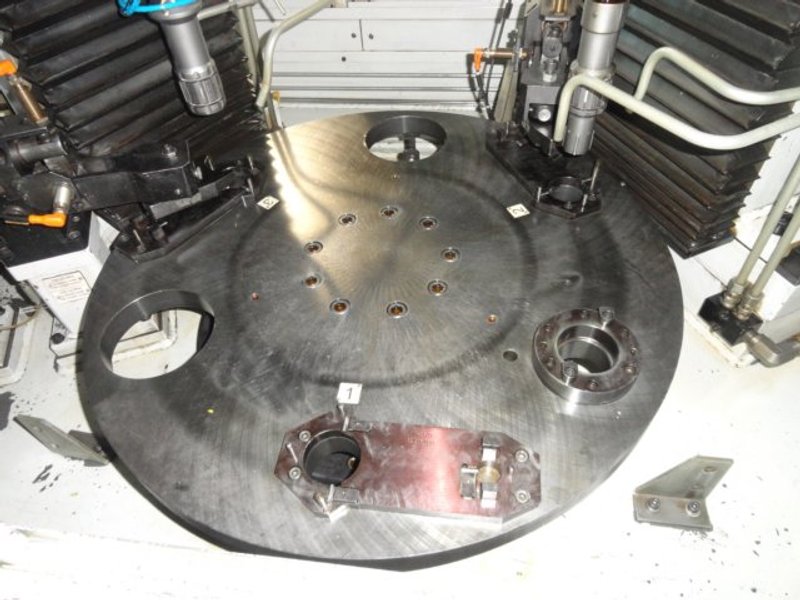

Rotary Index Table
Auto Load/Unload
Servo Controlled Tool Expansion System
Integrated With Gauging System For Auto Tool Wear Compensation
Torque Monitoring

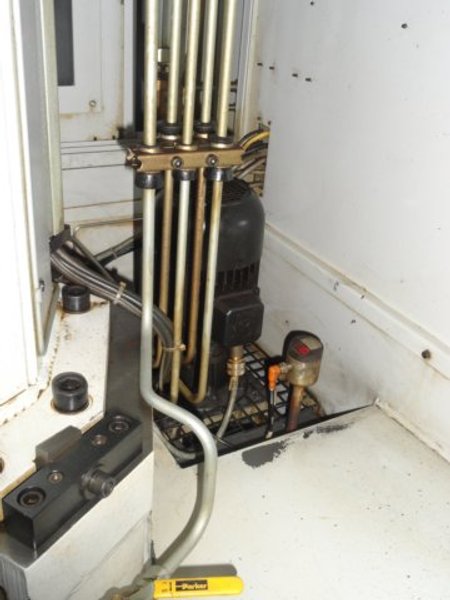

Coolant System
SPC Capability

SPECIFICATIONS:

Bore Size	3 to 40 mm
Max. Bore Depth	200 mm
Max. Part Height	1000 mm
Spindle Speeds	100 - 1700 RPM
Number of Spindles	2
Spindle Stroke	400mm
Spindle Speed	30 m/min.
Spindle Drive (Servo)	2.7 HP
Approx. Overall Dimensions	109" x 52" x 50"
