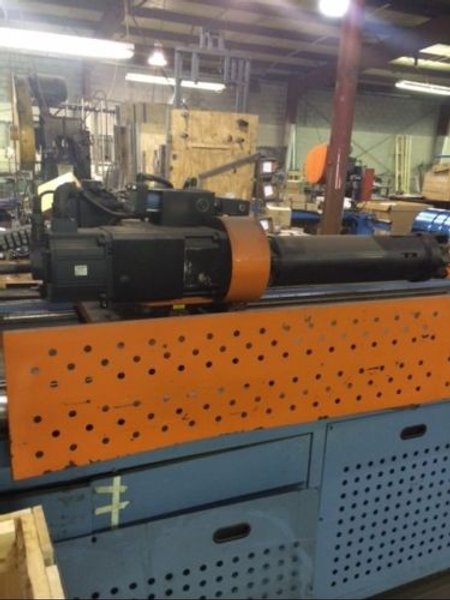

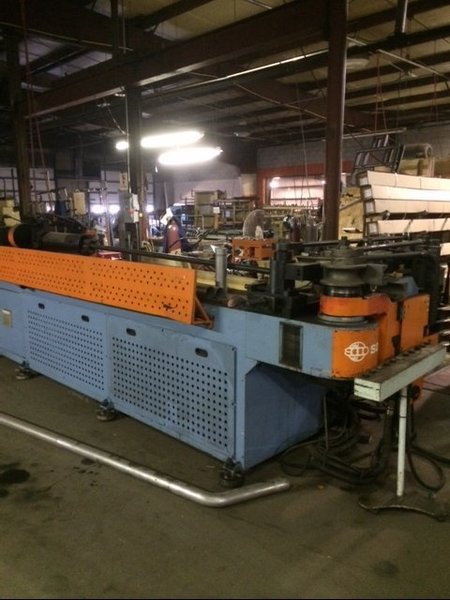

3" SOCO MODEL SB-75X4B-1S CNC TUBE BENDING MACHINE
New 2002



EQUIPPED WITH:

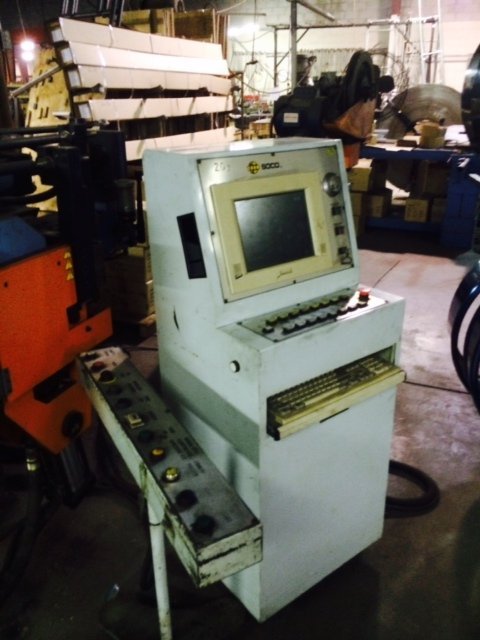

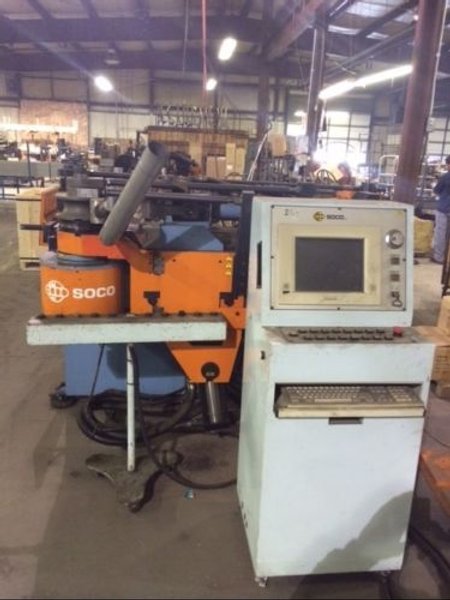

4-Axis Touch Screen CNC Control

Hydraulic Mandrel Extractor

Clamp & Pressure Die Holders

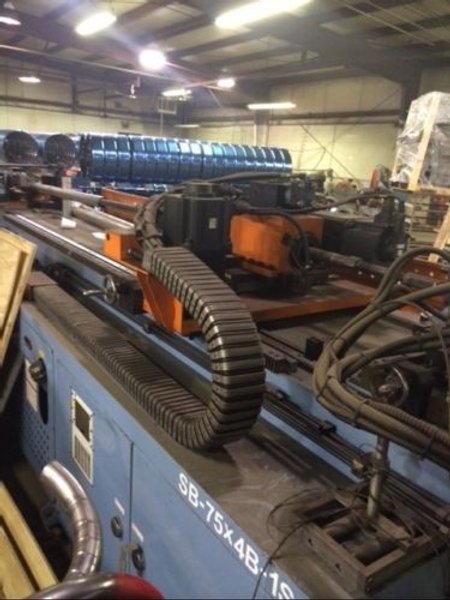

Programmable Plane of Bend Carriage

Overhead Tie Bar Support

Remote Operator Control Stand





SPECIFICATIONS:

Max. Steel Tube (.100" Wall x 1.5D 3" O.D.

Max. Steel Tube (.170" Wall x 1.5D 2.75" O.D.

Max. Stainless Tube (.120" x 1.5D) 2.75" O.D.

Maximum Bending Radius 10"

Maximum Feeding Stroke 112"

Maximum Bend Angle 190 Degrees

Number of Bends Per Tube 12 Bends

Bend Arm Speed 25 Deg./Sec.

Plane Of Bend Speed 160 Deg./Sec.

Feeding Speed 31.5"/Sec

Main Motor 30 HP

Approx. Dimensions 195" x 73" x 61"

Approx. Weight 16,060 Lbs.
