ENSHU MODEL EV450 3-AXIS VERTICAL MACHINING CENTER

Brand
ENSHU
Category
Machining Centers
Type
Machining Centers, Vertical
Model
EV450
Stock #
12631
Year
2008
Condition
Used
Location
Illinois

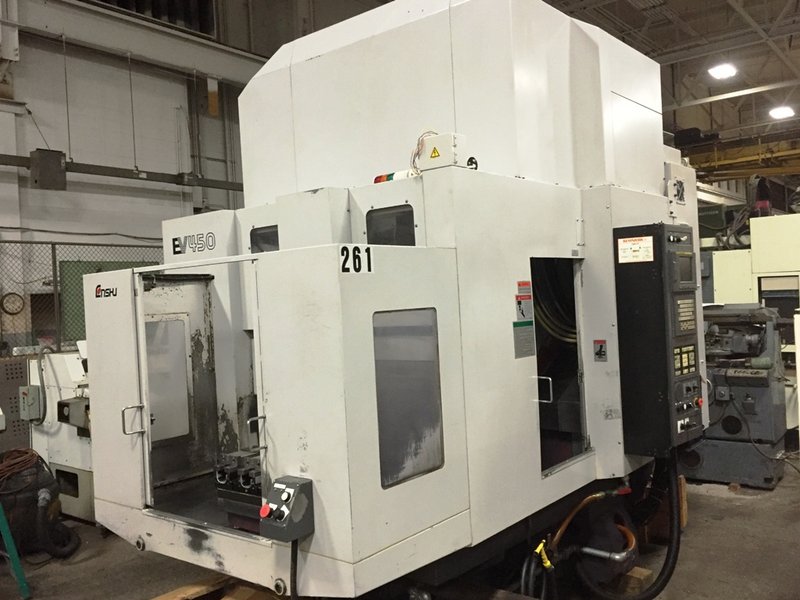

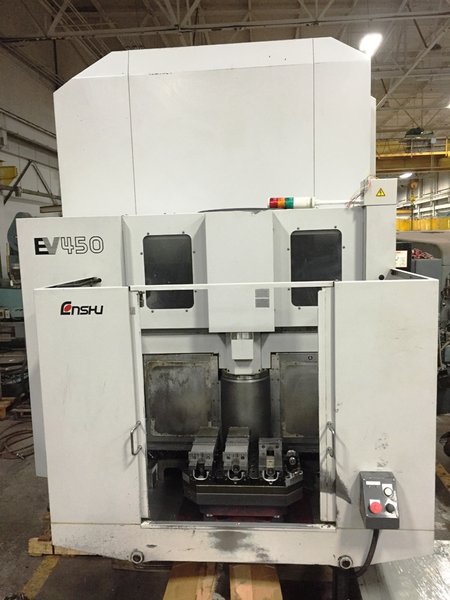

ENSHU MODEL EV450 3-AXIS VERTICAL MACHINING CENTER
New 2008

Motor Driven with 20/10 HP Dual Direct Drive Spindle, 3.8 HP Feed Motor

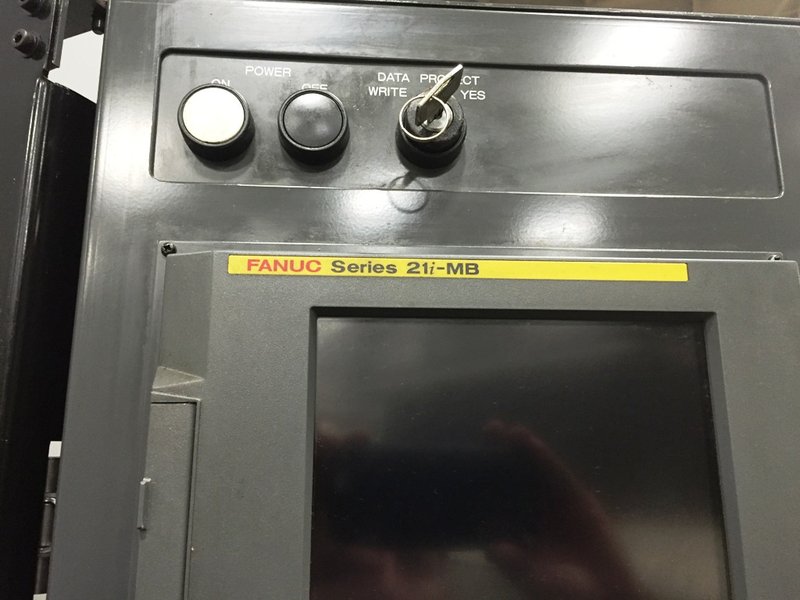

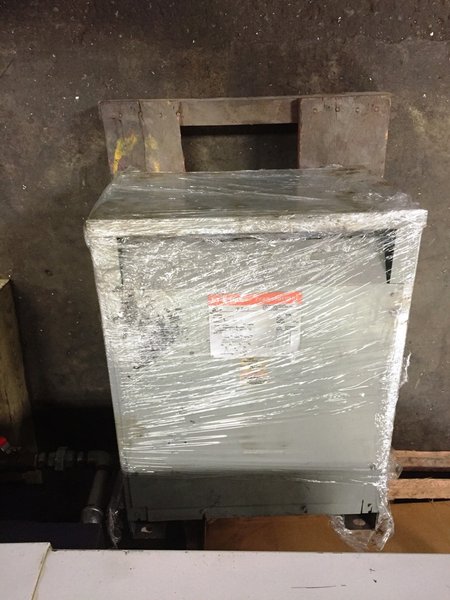

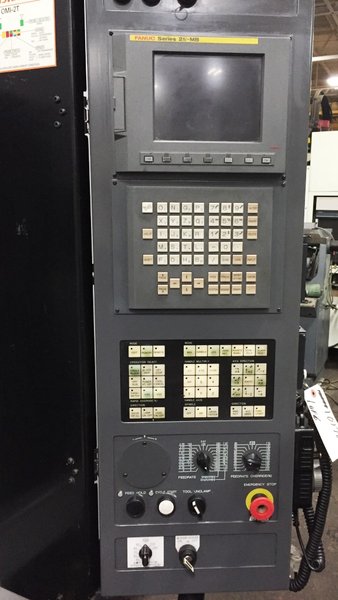

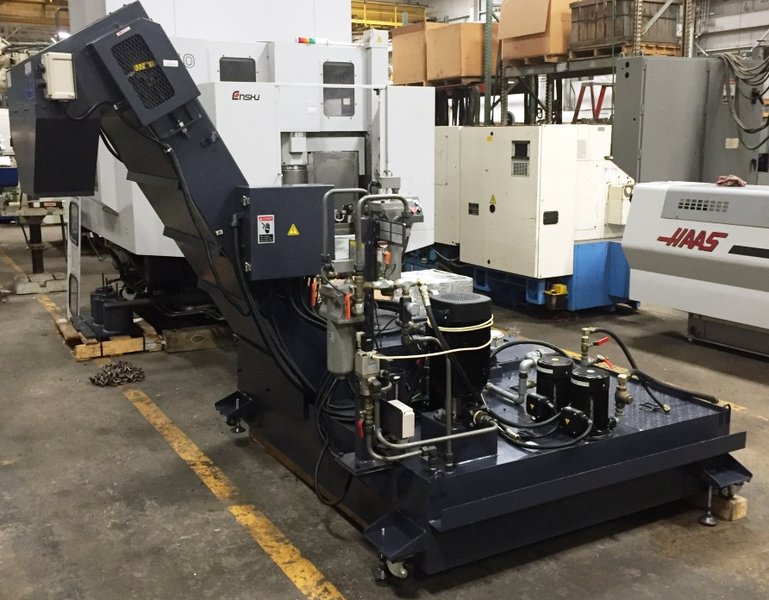

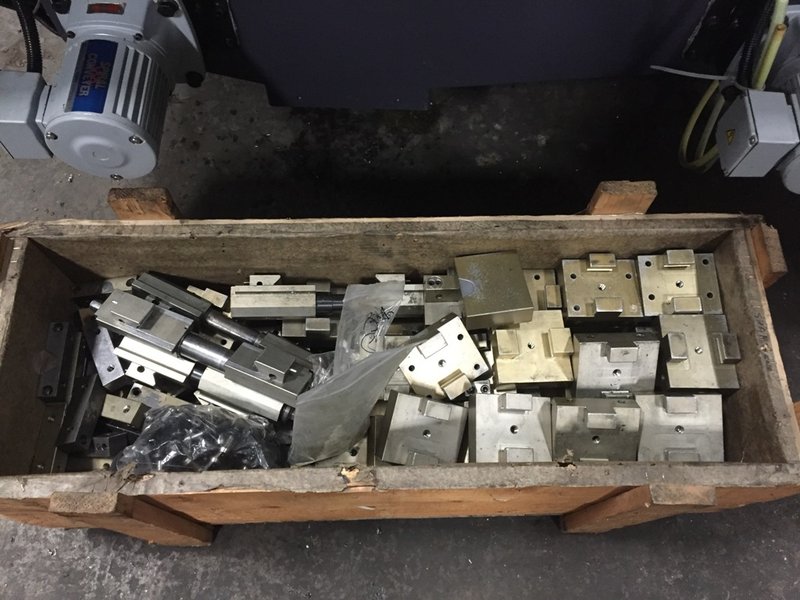

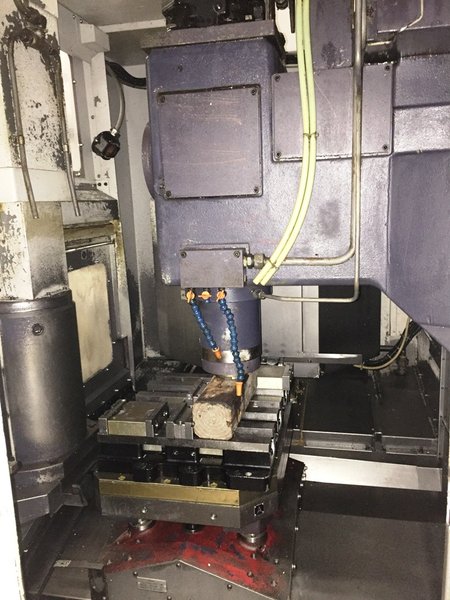

EQUIPPED WITH: Fanuc Series 21i MB CNC Controls, Rigid Tapping, Renashaw Probing, Tool Offset Memory C, (2) 20.9" x 15.7" Pallets, Rotary Type Pallet Change, Coolant Thru Spindle, MD Chip Conveyor, Leveling Pads, Several 6" Jergens Bock Interlocking Vises, Step Up/Step Down Transformer, Books and Manuals.

SPECIFICATIONS:
Number of Pallets  (2)                                            20.9" x 15.7"
Spindle CAT 40
Spindle Speeds Range 40 - 10,000 RPM
Travels
         X - Axis 22"
         Y - Axis 17.17"
         Z - Axis  18.1"
Distance from Top of Table to Spindle     7.9" - 26"
Distance Front of Column to Spindle Center Line        20.1"
Feed Rates
Rapid Traverse    X, Y , Z 1,575 IPM
Cutting Feed Rate    X, Y, Z 0.04-591 IPM
Acceleration      X, Y , Z -G 0.5G
Thrust
                    X - Axis            674 Lbs.
                    Y - Axis 674 Lbs.
                    Z - Axis 1,100 Lbs.
Spindle Ramp Up Time 1.6 Sec.
Spindle Torque 70 Ft. Lbs.
Automatic Tool Changer 20
Tool Change Time (Tool to Tool) 1.0 Sec.
Tool Change Time  (Chip to Chip) 3.5 Sec.
Maximum Pallet Load 550 Lbs.
Pallet Change Time 4.8 Sec.
Approximate Dimensions 83" L - R x 96" F - B x 106"
Approximate Weight  9,900 Lbs.
