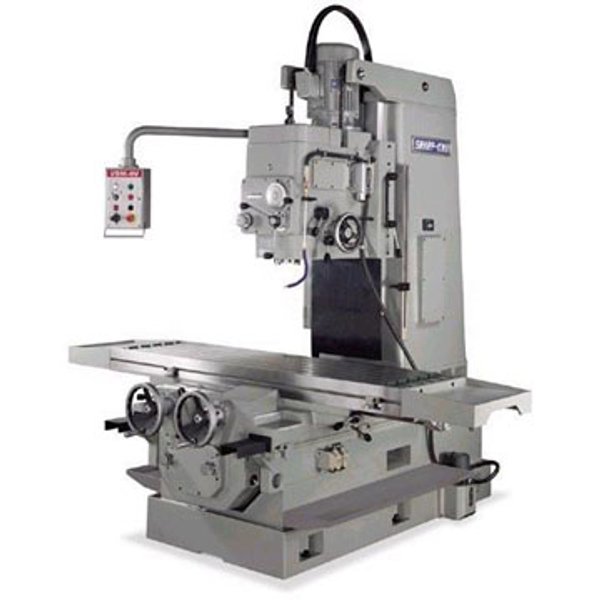

NEW 15" x 67" SHARP MODEL KMA-1 VERTICAL BED MILL

• The vertical column is made out of box shape high tensile strength casting reinforced with honeycombed ribbings. It offers excellent vibration dampening features and great mechanical and thermal stability.

• The saddle and vertical head travels on hardened and ground box ways that offer maximum rigidity. All top, front, rear reference surfaces and T slots are precision ground to exact tolerance.

• The vertical head is equipped with a #50 fixed quill spindle for heavy duty milling.

• Besides a manual coarse and fine feed on the vertical head, it is also equipped with power feed for easy positioning. A tri-lever handle mounted in the front for easy operation performs manual rapid movement of the head.

• A separate pendant control performs all the spindle operations, coolant and power drawbar operations .

• The unique sliding saddle base design allows easy movement of the entire 23” of the cross travel, manually or by power.

• The table is equipped with a double nut backlash eliminator, which adjusts the backlash on the table travel when the screw and nut start to wear out.

• The automatic lubrication system lubes the table and saddle ways.

• The extensive vertical head travel along with various feed rates offer capability for precise boring operations.

• A horizontal milling head (5 HP, #50 taper) is installed on the side of the vertical column on Model KMA-3H. It travels on precision ball screw with AC servo drive.

STANDARD ACCESSORIES:

• Coolant system
• Auto lube system
• 4 way toggle control of table (KMA-2, KMA-3, KMA-3H)
• Pneumatic power locks on spindle, table and saddle (KMA-3, KMA-3H)
• Variable speed feed rate on table and saddle (KMA-3, KMA-3H)
• Auto lube on vertical slide ways (KMA-3, KMA-3H)
• 5 HP horizontal head, #50 taper spindle (KMA-3H)
• Ball screw and AC servo drive on horizontal head (KMA-3H)
• Tools and Tool Box (1 set)
• Leveling blocks. (6 pcs, KMA-3, 8 pcs)
• Leveling bolts and nuts. (6 sets, KMA-3 8 pcs)
• Draw-in bolt. (1 pcs)
• Forward and reverse spindle control (KMA-2 & KMA-3)

OPTIONAL ACCESSORIES:

• Digital read out
• Halogen work light
• Power draw bar
• Spindle speed (60-1800 rpm) (KMA-3)
