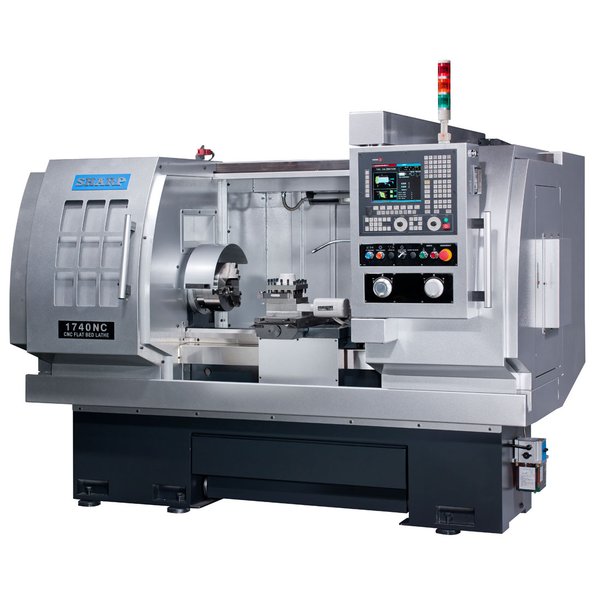

NEW SHARP 1740NC PRECISION CNC LATHE
(Also Available In 60" & 80" Centers)
- Flat bed CNC lathe with FAGOR 8055iA control and drive system
- User friendly conversational programming language
- Different modes of operations available
- Operate as manual lathe with electronic handwheels,
- Operate as a full CNC lathe with programmable speed, using conversational language or G code language,
- Operate semi automatically, combining manual and CNC operations
- Teaching in mode
- OEM 2-axis CNC, 12 lin. TFT CNC Chassis & Floppy driver. Std 20 inputs/12 outputs
- D1-8 camlock spindle, 3-3/8” spindle bore
- Geared head with 3 steps speed change, programmable speed
- One Piece Cast Meehanite Bed
- 10 HP Spindle Motor
CNC CONTROL 8055i/A by Fagor:
OPERATING MODES:
- Manual – the lathe is operated like a conversational lathe, using the 2 electronic handwheels in the front to move the axes. In addition if offers convenient features such as digital readout and constant surface speed.
- Semiautomatic – it allows 2 axes to be controlled with the cranking of 1 handwhel, the machinist can cut arcs, tapers and chamfers.
- Automatic – with ability to execute any program, plus background editing capability. Powerful tool inspection mode included as well as full program control from keyboard programs to choose from, the 8085i/A will control everything from start to finish.
- Single step – the machinist can go through all or part of the process by executing the program step by step.
PROGRAMMING LANGUAGE:
- Conversational – icon key with conversational graphic screens for easy operator data input. No prior programming experience needed
- G-code – this programming enables utilization of some sophisticated features such as parametric or variable programming. Auto –prompt via the help key prompts operator though graphic & text help screens.
PROGRAMMING TOOLS:
- Teach-in mode – the first part can be made manually while the control records the corresponding program, and then additional parts can be made in automatic mode.
- Canned Cycles – by selecting the associated ICON key or G-code, the CNC will prompt you through all canned cycles including Turning, Facing, Grooving and Threading, All equipped with a Thread Repair Canned Cycle.
- On-board profile editor for easy blue print programming. Simply enter the data right off the blueprint, the CNC automatically creates the program including complex profiles..
- Solid graphic as standard with tool shape representation standard and available for use in both Execution and Simulation mode, Also with line graphic capability.
| Swing Over Bed |
17-5/16” |
| Swing Over Cross Slide |
7-1/2” |
| Height of Center |
8-5/8” |
| Swing Over Gap |
26” |
| Distance Between Center |
40” |
| Max. Turning Length |
35.14” |
| Bed |
|
| Width of Bed Ways |
13” |
| Total Length of Bed |
78” |
| Swing Over Gap |
26” |
| Length of Gap |
11-3/4” |
| Width in front of Face Plate |
7-1/2” |
| Spindle |
|
| Spindle Nose Type |
D1-8 Camlock |
| Spindle Bore |
3-3/8” |
| Bar Capacity |
3-1/4” |
| Taper of Spindle Bore |
MT#7 |
| Taper of Center |
MT#5 |
| Spindle Speeds (3 steps) |
10-84 rpm, 45-380 rpm, 240-2,000 rpm |
| Bearing and Size |
3 Points Supported |
| 2 Taper Roll Bearing #32024 & #32022; 1 Ball Bearing #6021 (Rear End) |
|
| Travel and Ballscrews |
|
| Cross Slide Travel (X axis) |
11” |
| Ballscrew Diameter (X axis) |
1” |
| Rapid Travel (X axis) |
236 in/min. |
| Axis Motor (X axis) |
Yasakawa 200V 0.9Kw; AC Servo |
| Driver (X axis) |
Yasakawa |
| Longitudinal Travel (Z axis) |
36-1/4” |
| Ballscrew Diameter (Z axis) |
1-1/2” |
| Rapid Travel (Z axis) |
315 ipm |
| Drive Motor (Z axis) |
Yasakawa 200V 1.3Kw; AC Servo |
| Tailstock |
|
| Quill Diameter |
3” |
| Quill Taper |
MT#5 |
| Quill Travel (graduated) |
6-5/16” |
| |
|
| Lubrication (Coolant Pump) |
|
| Pump Motor |
12W, 1 Phase, 220V |
| Discharge Volume |
130c.c./min. |
| Discharge Pressure |
8kg/cm2 |
| Tank Capacity |
½ Gal |
| Coolant |
|
| Pump Motor |
1/8 HP, 0.1 kw |
| Pump Capacity & Pressure |
6.6 Gal/min. 0.4Kg/cm2 |
| Tank Capacity |
37 Gal |
| Motor |
|
| Main Spindle Motor |
10HP |
| 3-Phase Continuous Rating Induction Motor |
|
| Invertor |
Yasakawa 220V 10HP |
| General |
|
| Dimensions (LxWxH) |
118” x 60” x 70” |
| Machine Weight |
4409 lbs. |
| Specifications may be changed or improved without notice. |
|
| Total Power Consumptions |
|
| 220V |
15KVA/50 amps |
| 440V |
15KVA/25 amps |
STANDARD EQUIPMENT:
- Back Plate
- Coolant pump equipment
- Automatic lubrication system
- Timing belts
- Safety guard ( include: Rear Splash guard, 2-Sliding doors in front )
- Electrical box to suit CNC Turning Control
- Safety Chuck guard
- Mounting block for toolpost
- Halogen Work Lamp
- Encoder for Spindle RPM
- Electronic handwheel X & Y Axis
- Main motor 10HP
- Electrical 4-way toolpost
- Toolbox and adjusting tools
- Center sleeve MT#7 x MT#5
- Two dead centers
- Camlock spindle wrench
- Screw driver
- Spanner ( double-ended wrench )
- Hexagonal wrench
- Operation manual
OPTIONAL ACCESSORIES:
- D1-8 Camlock:
- Face Plate 17”
- Face Plate 20”
- 3-jaw chuck 10”, direct mount
- 3-Jaw chuck 12” direct mount
- 4-jaw chuck 12” direct mount
- 4-jaw chuck 16” direct mount
- 3-jaw chuck 12” (BISON)
- 3-jaw chuck 16” (BISON)
- 4-jaw chuck 12” (BISON)
- 4-jaw chuck 16” (BISON)
- Steady Rest for 17” Lathe (3/16” – 4 1/2”)
- Steady Rest for 20 and 22” ( ¼” – 7 1/8”)
- Follow Rest (3/8” – 3”)
- Quick change toolpost 4 tool holders, manual version
- Hydraulic tailstock with hydraulic pump & tank
- Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic pump & tank .00
- Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic turret tool 8 tools pump & tank with magazine hydraulic pump & tank
- Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic turret tool 8 tools and hydraulic tailstock with magazine hydraulic pump & tank
- CE standard equipment with filter, safety module, interlock and IEC electricity
|
