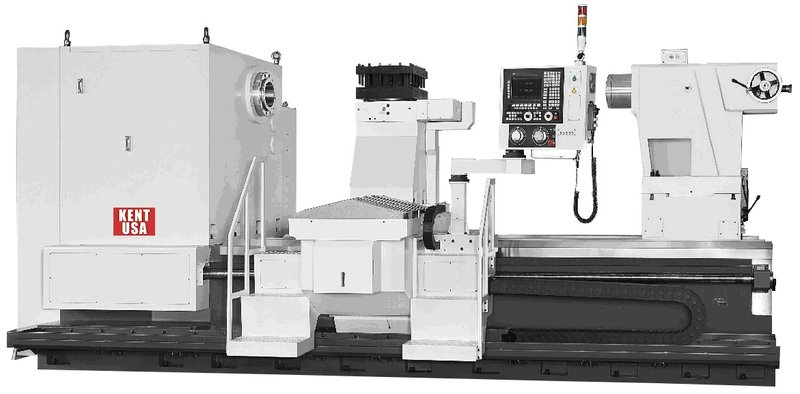

70" x 315" KENT USA MODEL CMD-70320 CNC OIL COUNTRY LATHE - NEW
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
SPECIFICATIONS Swing over bed: 70” 1800 mm Swing over cross slide(full/half length): 49” /55” 1250 mm /1400 mm Distance between centers: 315” 8000 mm Bed width: 53” 1345 mm Spindle bore: 8.3” Ø210 mm Spindle nose: A2-15 Spindle speeds (4 Steps): 5-460 RPM Controller/Spindle motor: Fanuc(45KW)or(75KW with inverter) Ball screw diameter: X-axis : Ø50mm with 1:2 gear set, Z-axis : Rack and Pinion Cutting speed per revolution X-axis: 0.001-250mm Cutting speed per revolution Z-axis : 0.001-400mm Max, x-axis travel(full/half length): 49”/28” 1250mm/720mm Max, z-axis travel(full/half length): 299”/315” 7600mm/8000mm Tailstock spindle travel/Quill: 11.8” / Ø11.4” 300mm/ Ø 290mm Tailstock spindle taper: MT#7 X-axis servo motor: α22i (4.0 KW) Z-axis servo motor: α30i (7.0 KW) Coolant pump motor: 1.3 HP 1 KW Machine Packing Dimension: 37’ X 10.9’ X 9.2’ 11.3m X 3.3m X 2.8m Machine Weight: 122,357 lbs 55500 kgs |
