KENT USA KEB-606N SINKER TYPE EDM- NEW

Brand
KENT
Category
EDM Machines
Type
EDM Sinkers
Model
KEB-606N
Stock #
12816
Year
Not specified
Condition
New
Location
Not specified

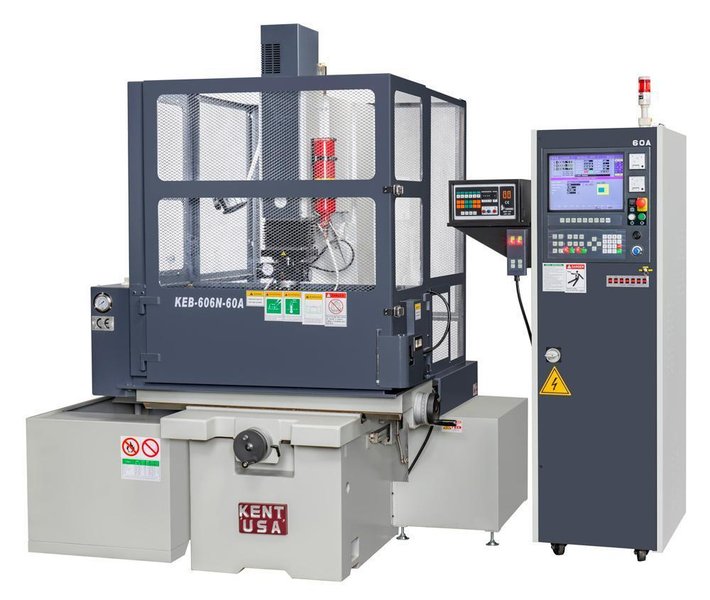

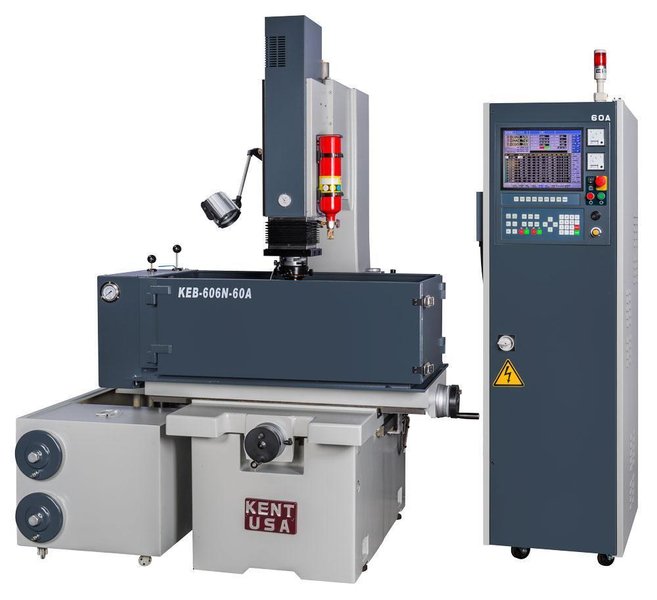

KENT USA KEB-606N SINKER TYPE EDM - NEW

PRODUCT FEATURES

  • 30 Amp power supply capacity
  • Fully ribbed solid castings for maximum rigidity and stability
  • Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting in for simple programming
  • Maximum 500 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
  • MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
  • Precision linear ways with oil immersed ball screw and DC Servo motor on Z-axis
  • Power rapid Ram up/down traverse motor
  • Centralized one-shot lubrication system provides lubrication to all points



STANDARD ACCESSORIES
  • Work head
  • Work lamp
  • Filter
  • Tool box
  • Automatic fire extinguisher
  • Color LCD

OPTIONAL ACCESSORIES

  • Super sparking
  • Permanent magnetic chuck


  • Work Tank
  • Work Table
  • Travel (X / Y / Z / W)
  • Distance Between Plate to Table
  • Max Electrode
  • Max Work Load
  • Max Output Current
  • Max Stock Removal
  • Best Surface Finish
  • Best Electrode Wear
  • Dielectric Tank
  • Net Weight

  • KEB-606N

  • 44.3″ x 23.6″ x 15.7″
  • 27.6″ x 15.7″
  • 15.7″ / 11.8″ / 7.1″ / 9.8″
  • 8.3″ ~ 25.2″
  • 221 LBS
  • 2204 LBS
  • 60 Amp (Opt. 90)
  • 200 mm/min
  • Ra 0.2 mmRa
  • < 0.15%
  • 330 L (87 Gal.)
  • 3527 LBS
