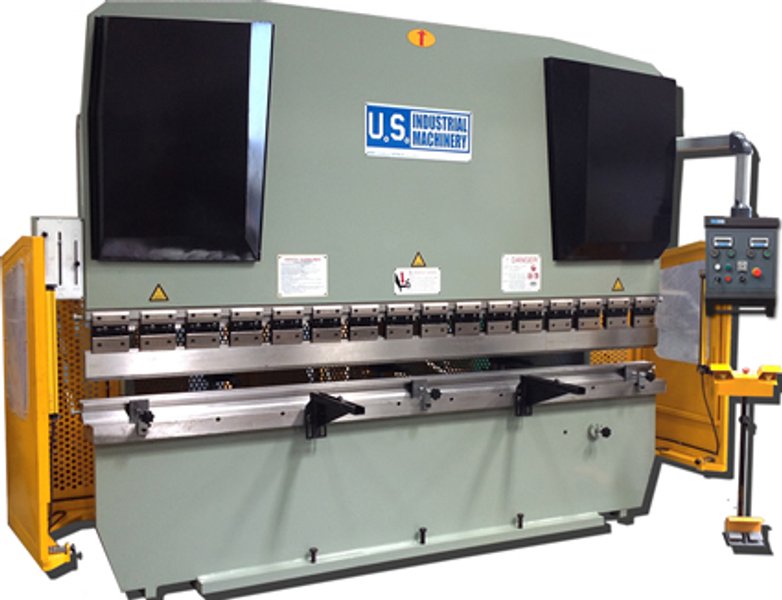

NEW 155 TON x 13' US INDUSTRIAL MODEL USHB155-13HM  HYDRAULIC PRESS BRAKE WITH FRONT OPERATED BACKGAUGE AND POWER RAM ADJUST

Base Price POR


STANDARD EQUIPMENT

Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel
Digital Displays For Backgauge Position and Ram Position
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
Sick Model 4000 Light Curtain System


OPTIONAL EQUIPMENT


Fiessler Aklas II Laser Guarding $7,995.00

Pilz PSENvip LED Safety Guarding System $8,495.00

On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00

On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00

On Site Training (Outside Continental USA) POR




SPECIFICATIONS

Working Pressure	155 Tons
Overall Length Of Table	157.4"
Distance Between Housing	124"
Throat Depth	12.5"
Stroke Adjustment Of Ram	2.75"
Ram Travel	5.9"
Open Height	16.3"
Rapid Ram Travel Speed	2.4"/Sec
Rapid Ram Retreat Speed	2.0"/Sec
Pressing Speed	Dependent On Tool Load
Backgauge Travel	24"
Motor Horsepower	15 HP
Hydraulic Oil Capacity	97 Gal
Approx. Overall Weight	23,148 Lbs
Approx. Dimensions	179" x 64" x 101"H

Warranty:  1 Year Parts & Labor


Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
