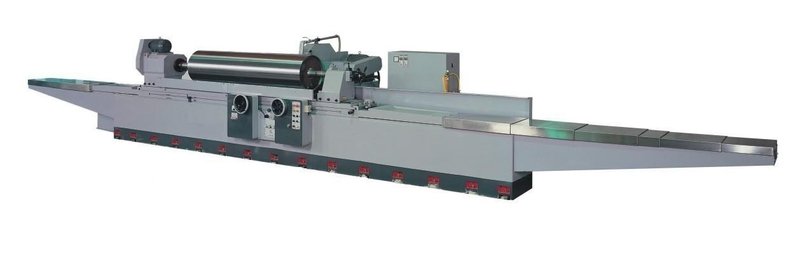

21.6" x 40" KENT USA KGC-56100NC HEAVY DUTY "PLAIN" CYLINDRICAL GRINDER - NEW

Outstanding Features:

• Hydrostatic lubricated Spindle and Slideways allows for smoothest movement with maximum rigidity
• Automatic lubrication with safety interlock to prevent machine operation when there is no lubrication present
• Schneider 5” touch operation panel and Yaskawa 1.8 KW servo motor for Z-travel(grinding wheel travel

• Table Mount Wheel Dresser
• 3 Point Steady Rest
• Hydraulic 3 Jaw Chuck With Backplate
• Magnetic Separator Coolant System
• Paper Filter and Magnetic Separator Unit
• Wheel Balancing Stand
• Fagor DRO and Linear Scale (Z-Axis)

GENERAL SPECIFICATIONS: KGC-56100NC

Max. Grinding Diameter 21.6"
Max. Grinding Length 40"
Max Load Between Centers 2,200 Lbs
Swivel Angle Workhead NA
Grinding Wheel Size 28" x 2"-4" x 8"
Grinding Wheel Speed 890 RPM
Table Speed 0-3500 mm/min
Movement Per Graduation 0.0002"
Movement Per Turn of Handwheel 0.08"
Min Feed (NC, Servo Control) 0.005mm (MPG)
Swivel Angle 2 Deg / 1 Deg
Workhead RPM 25-165 RPM (Inverter)
Workhead Spindle Taper MT#5
Tailstock Quill Stroke 1.2"
Tailstock Spindle Taper MT#5
Grinding Wheel Motor 15 HP
Workhead Motor 2 HP
Grinding Lubrication Pump Motor 1/2 HP
Coolant Pump Motor 1/4 HP
Hydraulic Tank 10 Gal
Coolant Tank 32 Gal
