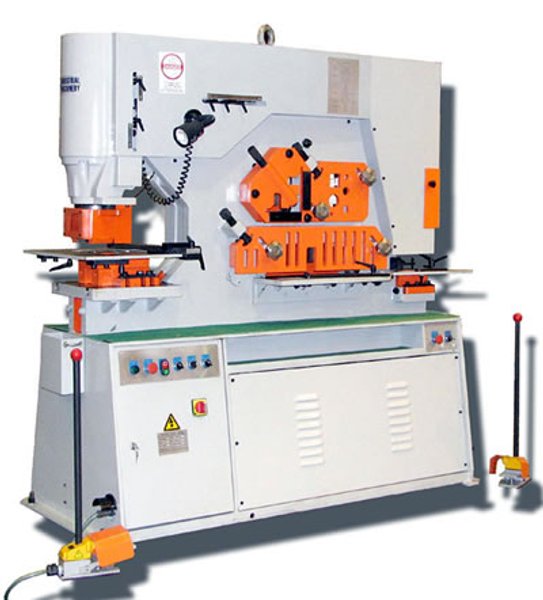

125 TON US INDUSTRIAL MODEL USHI-125T-DO-XT HYDRAULIC IRONWORKER WITH DUAL OPERATOR STATIONS

Model
USHI-125T-DO-XT
Stock #
14359
Year
Not specified
Condition
New
Location
Not specified
125 TON US INDUSTRIAL MODEL USHI-125T-DO-XT HYDRAULIC IRONWORKER WITH DUAL OPERATOR STATIONS

BASE PRICE:  POR


STANDARD FEATURES

Dual Hydraulic Cylinders For Two Man Operation With Two Movable Foot Pedals

(5) Workstations (Punch, Plate Shear, Angle Shear, Rod Shear, And Notcher)  This Machine Also Comes With Brake Attachment

Punch Station Has Large 2-Piece Gauging Table With Fence

Punch Station Has Quick Acting Swing Away Stripper With 3 Inserts

Punch Station Has Removable Sections For Punch Leg of Channel Or I-Beam

Quick Change Coupling Nut & Sleeve For Punch

Electric Backgauge, 3' Long

Electrically Interlocked Safety Guard For Notching Station

Magnetic Base Workstation Light

15 HP, 3-Phase Operation

Three Sets Of Round Punch & Dies

Spare Parts & Tools


SPECIFICATIONS


Punch
     Punch Tonnage 125 Ton
     Punch Thickness 1"
     Punch Diameter 1.5"
     Throat Depth 24"
     Stroke Length 0  -  3.125"
Flat Bar Shear
      Max Thickness 14" x 1"
      Max. Diameter 23.5" x 5/8"
      Blade Length 23.5"
Angle Shear
      Capacity 90 Deg.  6" x6" x 5/8"
      Capacity 45 Deg. 3" x 3" x 1/4"
Bar Shear
      Round 2.375"
      Square 2.125"
Notcher
       Thickness 1/2"
       Width 2.25"
       Depth 4"
Motor 15 HP
Approx. Dimensions 92" x 37" x 82"
Oil Capacity 33 Gal
Weight 10,560 Lbs

No files or videos to display

Want to request a quote from the owner of this listing?
