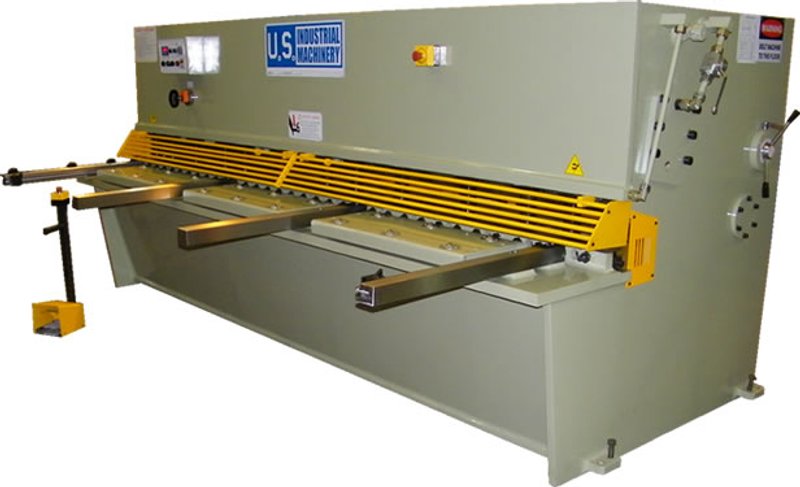

NEW 13' x 1/2" US INDUSTRIAL MODEL US13500 HYDRAULIC SHEAR

NEW 13' x 1/2" US INDUSTRIAL MODEL US13500 HYDRAULIC SHEAR


BASE PRICE:    POR

STANDARD EQUIPMENT

Squaring Arm
High Carbon, High Chrome Shear Blades
Ball Transfers On Each Table Segment
Manual Quick Change Blade Gap Adjustment
Squaring Arm, 39.5" From Blade To End
Stroke Counter
Front Controlled Power Back Gauge
Blade Guard, Micro Switch Protected
Hydraulic, Electrical Overload Protection
Auto Swing Up On Back Gauge
(3) Bolt On Table Segments
Hold Downs Faced With Anti-Mar Neoprene
Swing Beam Design
Pressure Sensing Hold Downs
Electric Stroke Adjustment
Operator Control Console
Shadow Lighting
Low Noise Gear Pump
Support Arms Included


OPTIONAL EQUIPMENT

3-AXIS CNC PROGRAMMABLE BACKGAUGE $4,990.00
Touch Screen Operated.
Controls Back Gauge Depth, Blade Gap & Stroke Length.
200 Program Storage Capacity
20 Steps Each Program
Manual or Automatic Mode

Pneumatic Sheet Support $4,990.00

Material Support/Drop Chute $1,495.00

6' Squaring Arm $1,995.00

8' Squaring Arm $2,295.00

10' Squaring Arm $2,495.00

48" Back Gauge, No Swing Up $1,950.00

Training at US Industrial (Memphis, TN) No Charge

On Site Training (Less than 300 miles from Memphis, TN) $2,995.00

On Site Training (More than 300 miles from Memphis, TN) $3,995.00

On Site Training (Outside Continental USA) POR




SPECIFICATIONS

Sheet Size	157"
Shearing Capacity	1/2" Mild Steel @ 65,000 PSI
Shear Angle	1 Degree 30
No. Load Strokes	8
Throat Depth	3"
Adjustment Range Of Back Gauge	0.75" - 36"
Hydraulic Oil Capacity	113 Gal
Main Motor	25 HP
Approx. Dimensions	193" x 88" x 80"H
Approx. Weight	33,069 Lbs
Warranty	1 Year Parts/Labor
