2/3 Single Facility Auction | Closure of Cast Nylon LTD

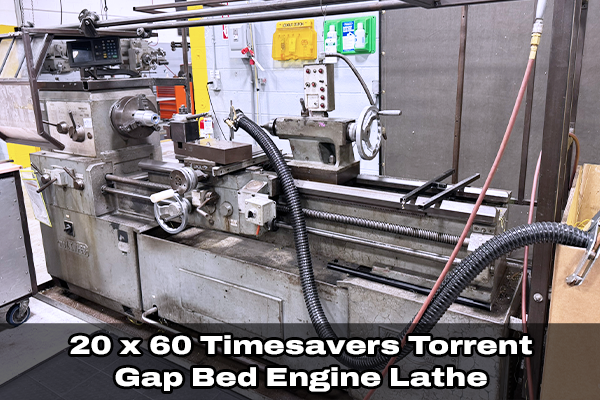

Timesavers Lathe Dimensions - 120" X 48" X 54" HIGH Weight - 3525 pounds SWING OVER WAYS ............... 20" SWING OVER CROSS SLIDE ........ 12" SWING IN GAP .................. 28" LENGTH OF GAP .................... 11" DISTANCE BETWEEN CENTERS ...... 60" SPINDLE SPEEDS ................ 24 TO 1300 RPM LONGITUDINAL FEEDS ENGLISH .... 0.0016 TO 0.024 IPR THREAD ENGLISH ................ 2 TO 112 TPI SPINDLE HOLE .................. 2-5/8" CHUCK ......................... 10" 3 JAW TAIL STOCK ....................... #6 MT THREAD DIAL ................... YES MOTOR ......................... 5 HORSEPOWER

Safop Manual Lathe Swing over bed: 21" machining Diameter: 13" distance between centers: 80" max turn length: 78" spindle bore: 3" chuck size: 15" spindle speed: 1500 RPM Equipped with: tail stock 4 jaw chuck chip pan Accurite DRO

Johnford SV-45 (2000) Approximate Machine Dimensions................. 130" x 118" x 122" A# Axis  3 Table-L............................. 48" Table-W............................. 20" Max Table Load Capacity............................... 3,300 LBS Longitudinal Travel (X-Axis)...................... 43" Cross Travel (Y-Axis)............................. 20" Vertical Travel (Z-Axis).......................... 25" Max Clearance Tabletop to Spindle Nose....... 31" Feed Rates, All Axes.............................. 0 to 315 in/min. Rapid Traverse Rate, All Axes..................... 787 IPM Spindle Power................................ 15 HP Spindle Speeds Range.............................. 0 Ð 8,000 RPM Spindle Taper..................................... No. 40 CAT (V-Flange) Automatic Tool Changer Capacity (ATC)............................. 30 Electrics......................................... 220/3/60

Mazak FH-880 (1998) Machine Dimensions 234" x 166"x 129" Machine Weight 59,000 lbs. Pallet Size / Number of Pallets 31.5"x31.5"/ 2 plt. Table Indexing 1 Deg. Plt index Table Load Capacity 4,850 lbs. Maximum Part Size Diameter x Height 49.21" x 49.21" X-Axis Travel 51.18" Y-Axis Travel 43.31" Z-Axis Travel 39.37" Spindle Center to Table Top 2.36 - 45.67" Spindle Motor 30 min. / continuous 50 HP / 35 HP Spindle Nose CAT #50 Spindle Speed 35 - 7,000 RPM Tool Magazine Capacity 80 Tool Magazine Max. Tool Diam/Length/Weight 10.24"/19.69"44 lbs. Tool to Tool time/Chip to Chip time 3 Seconds/9 Seconds Rapid Traverse X, Y / Z 945 IPM / 787 IPM

Haas SL-30B (2002) Machine Dimensions 150" x 90" x 90" Machine Weight 16,000 pounds # Axis - 2 Swing - 30" Turning Diameter - 16" Center Distance -39" X-Axis Travel -11.3" Z-Axis Travel -34" Rapid Traverse (X/Z) - 710 ipm Spindle Speed - 2,400 rpm Main Motor - 30 hp Turret Capacity - 12

Haas VF-2 (2011) Dimensions: 101" x 99" x 101" Weight: 7,800 LBS X Axis Travel: 30" Y Axis Travel: 16" Z Axis Travel: 20" Rapid Rate X Axis: 1,000 IPM Rapid Rate Y Axis: 1,000 IPM Rapid Rate Z Axis: 1,000 IPM Max Table Load: 3,000 LBS Spindle Motor: 20 HP Spindle Speed: 7,500 RPM Spindle Taper: 40 CT Tool Changer: 21 ATC Max Torque 90 ft-lbf Max Thrust X 2550 lbf Max Thrust Y 2550 lbf Max Thrust Z 4200 lbf Max Tool Diameter 3.5" Max Tool Weight 12 lb Tool-to-Tool (avg) 4.2 s Chip-to-Chip (avg) 4.5 s Table Size: 36" x 14"
