30” x .060” x 20,000# Herr Voss / Red Bud High Speed Blanking Line
Brand
Category
Type
Model
Not specified
Stock #
102144A
Year
Not specified
Condition
Used
Location
Arkansas
| Coil Weight | 20000 pounds |
| Width | 30 inches |
| Thickness | .065 inches |
| ID | 20 inches |
| Max OD | 72 inches |
|
Coil Capacity: 20,000#
Thickness Range: .015” - .060”
Minimum Strip Width: 2.5”
Maximum Strip Width: 30”
Coil OD: 72”
Coil ID: 20”
Sheet Length: 2” - 168”
Pack Height: 20”
Pack Weight: 10,000#
Line Speed: 125 FPM
Grade: 45K KSI
Complete Line With:

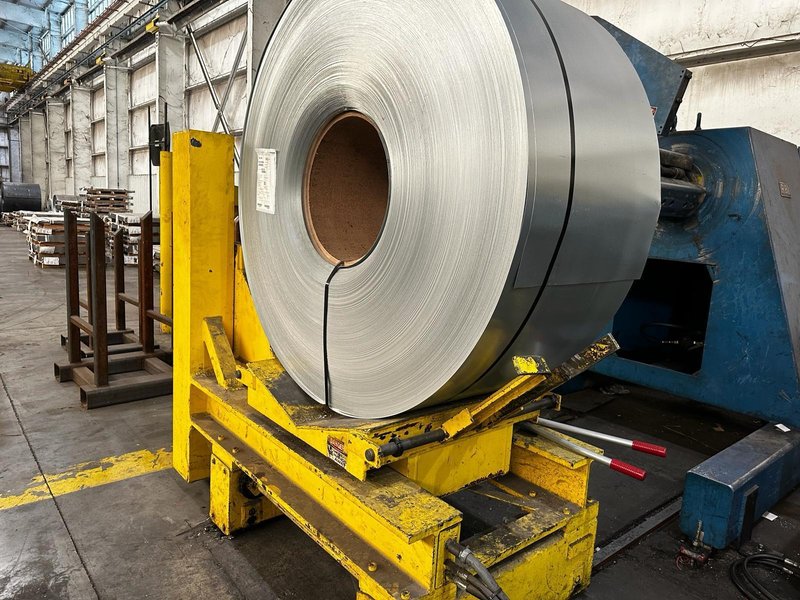

L-Type Coil Car
Floor Standing / Self Contained Hydraulics

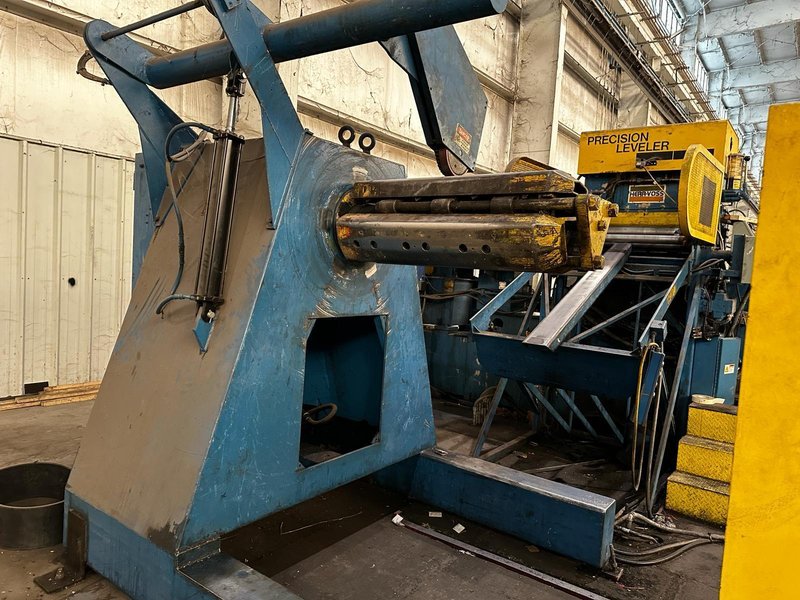

Mandrel Uncoiler
Hold Down Roll
Feed-up Drive
Hydraulic Expansion
3 Leaf Mandrel
Peeler Table In / Out / Up / Down
Edge Guides
Pinch Rolls

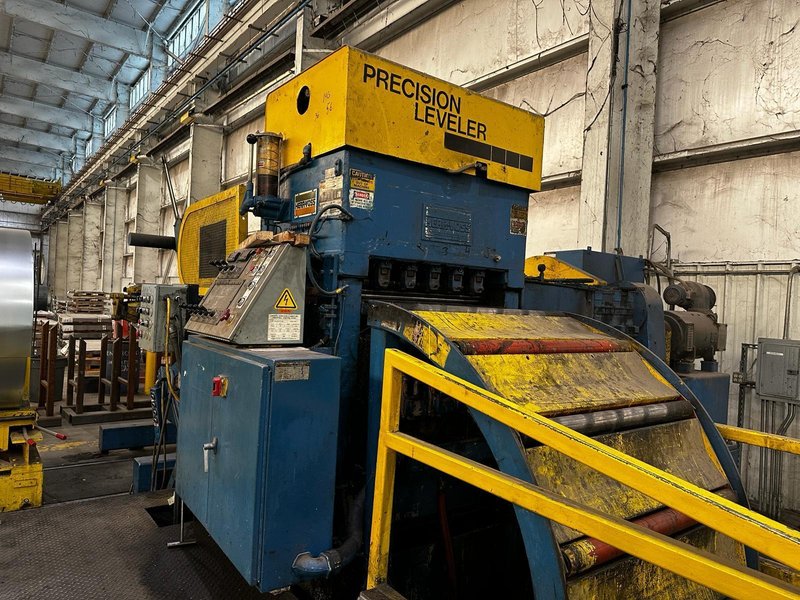

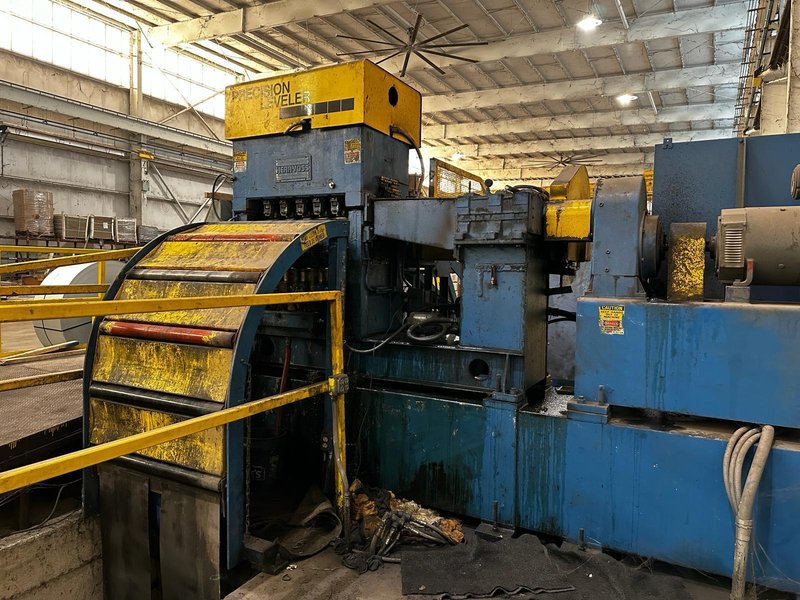

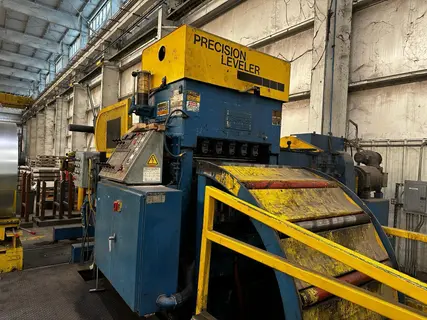

Herr Voss 5HI Precsion
Model No: RH 36/1.156-19/5, 5HI W/PR
5 Flights Top & Bottom Back-Ups
Individual Motorized Adjustments
Digital Readout Back Up Positioning
Entry & Exit Tilt with Digital Roll Positioning
2 Sets of Operator Stations
Spare set of Rolls

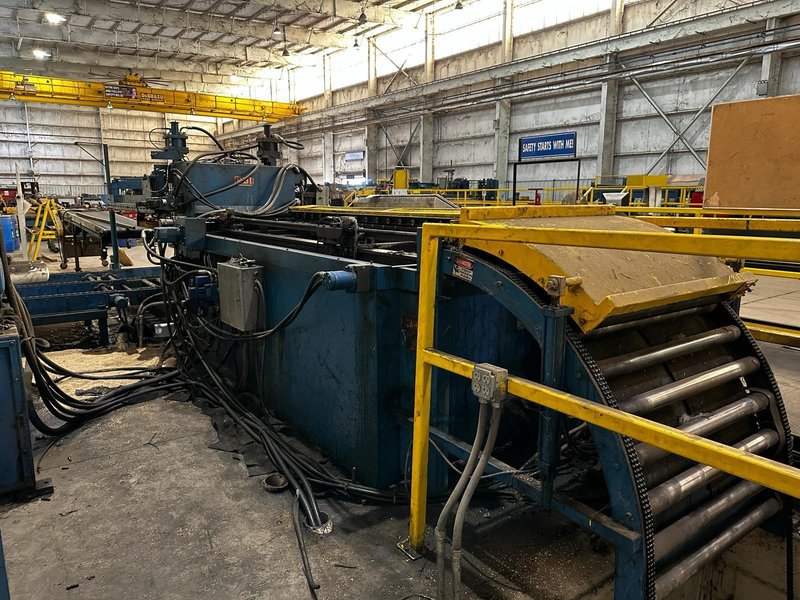

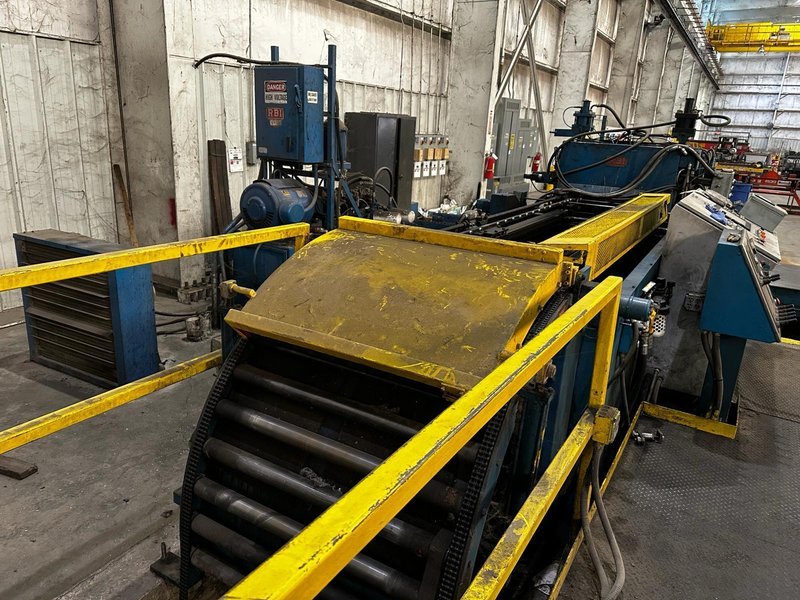

Looping Pit Cascade Rolls

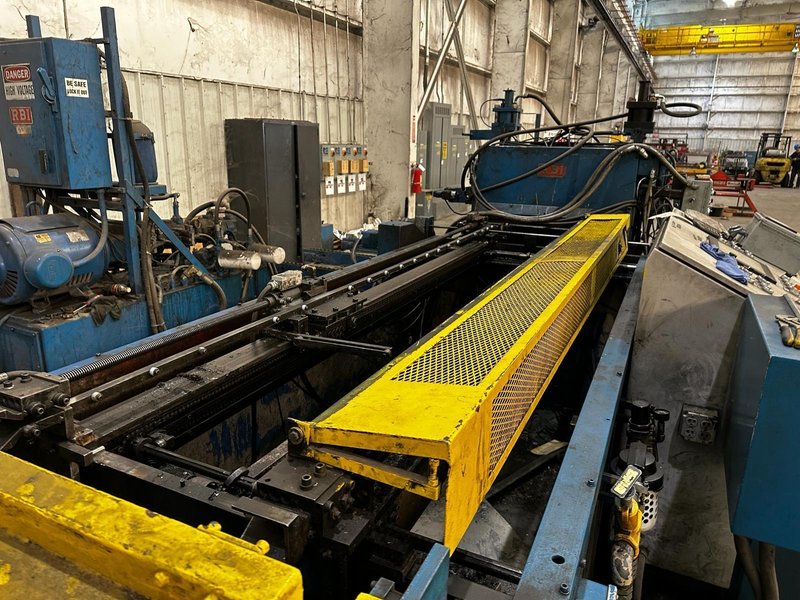

Red Bud Gripper Feeder
Double Grip Feeder

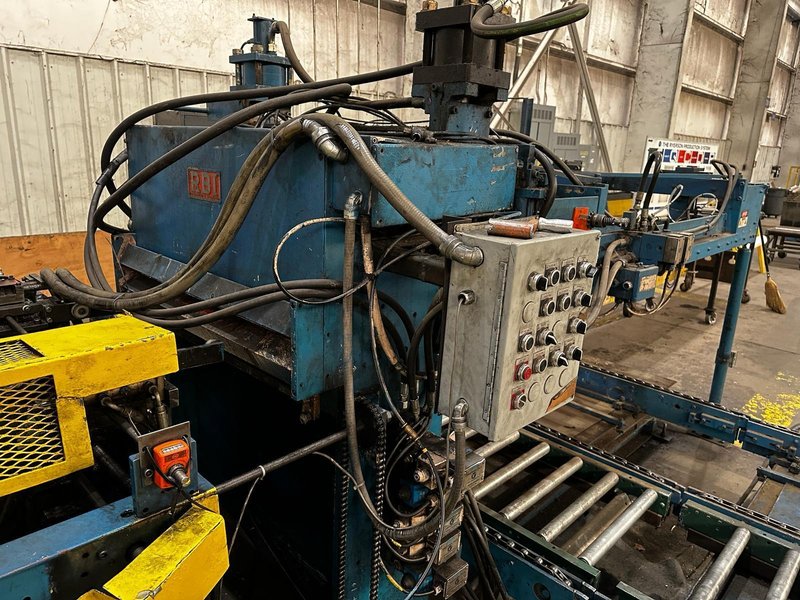

Red Bud Shear
Model SH18-140-36-6

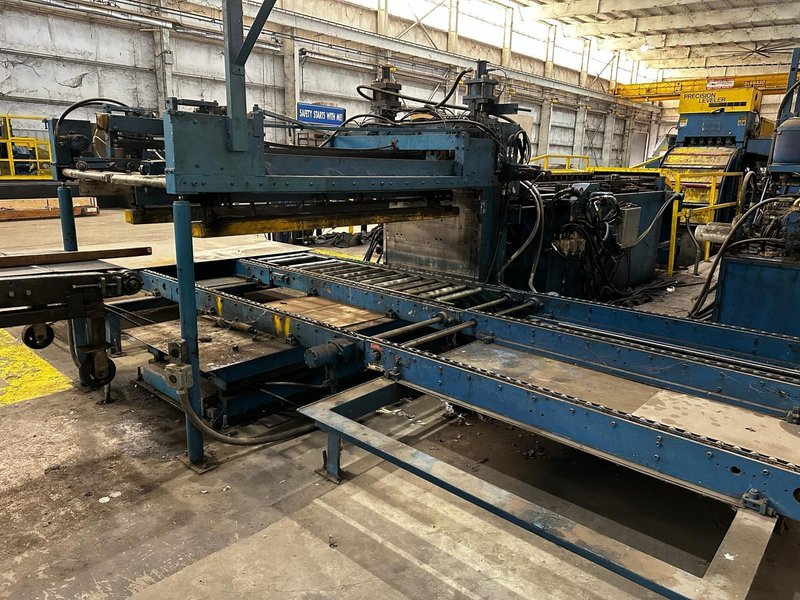

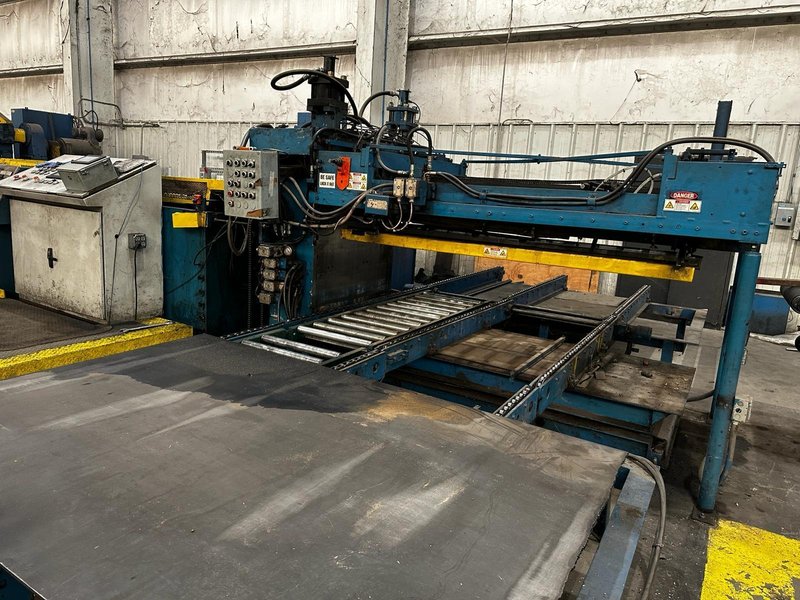

Drop Type Stacker
Lift Tabes
Side Squaring
Motorized Width Adjustment
Motorized End Stop
Side Pallet Feed
Side Discharge
Motorized Belt Conveyor for Short Lengths
Central Hydraulic Unit
Spare Set of Rolls for Leveler

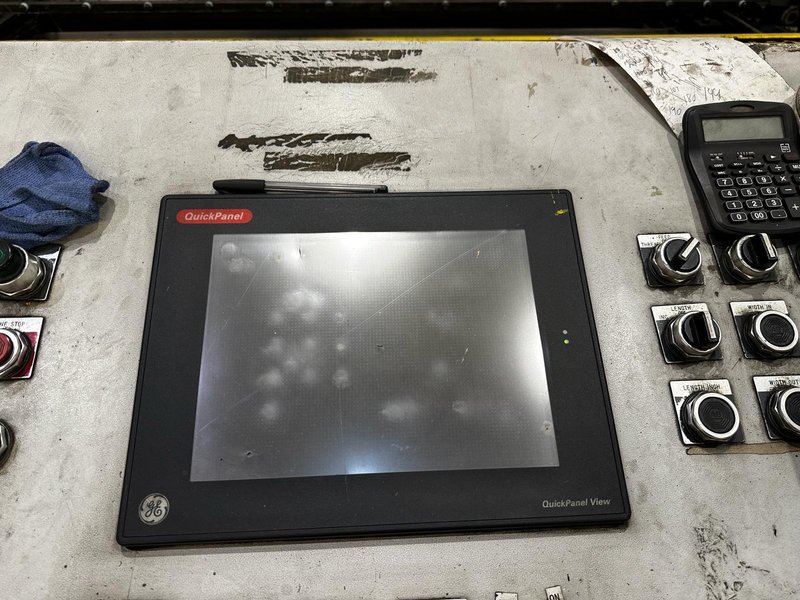

Quick Panel View Digital Readout
|
|
