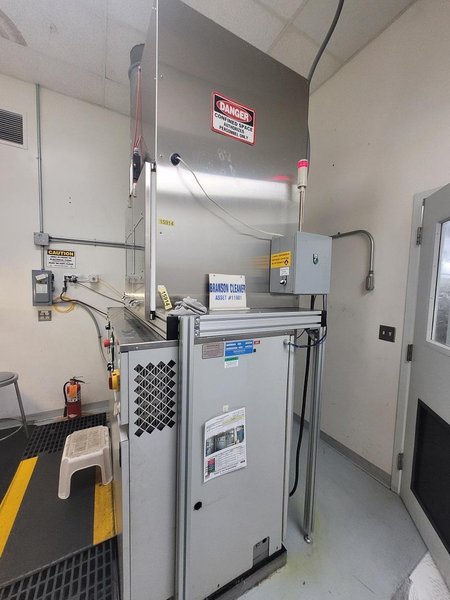

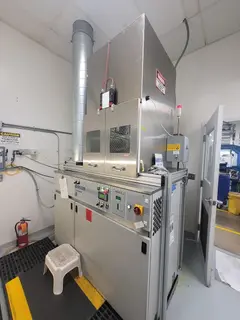

NOTE ON SOLVENT TO USE: | The B-Series is ideal for use with most commercially-available vapor degreasing solvents. |
Working Dimensions | 12" X 16" X 12"D |
Boil Sump Heat | 4000 W immersion heat |
Ultrasonic Heat | 800 W |
Ultrasonics * | 40 kHz |
Distillation Rate | 14 gph |
Recirculation | 2 gpm |
Load Capacity | 400 lbs. steel/hour |
Vapor Zone | 32.7" X 19" X 12"D |
Solvent Capacity | 26 gallons |
Approx. Overall Dimensions | 65" X 32.5" X 49"H |
Input Power | 208 or 230V, 3Ph, 39A |
Shipping Weight | 750 lbs. with pallet |
Solvent Types for the B Model: The B-Series is ideal for use with most commercially-available vapor degreasing solvents.

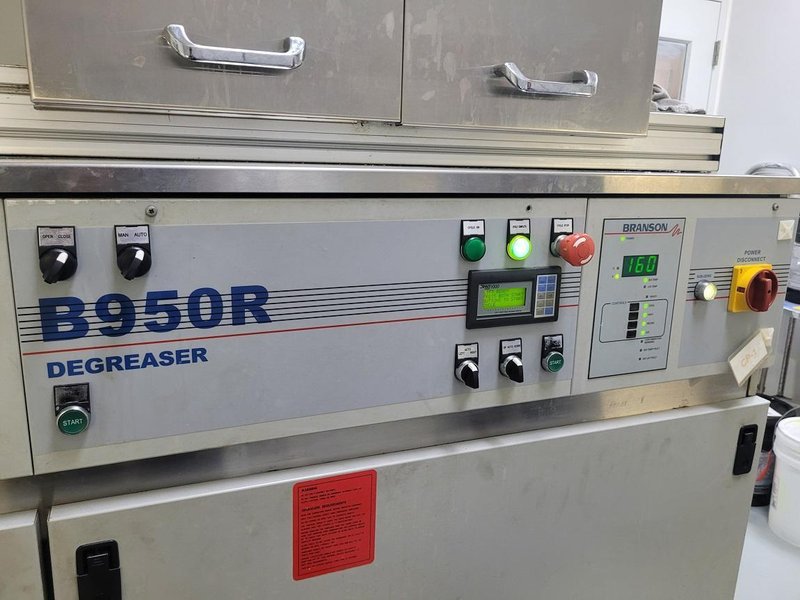

Branson Digital Controls - Touch Type Start Button Lift System Cycle Start Temp Control On Button Cycle Button Cycle Stop Switchs • Freeboard ratio of 100% to minimize diffusion losses due to drafts • Sub-zero freeboard condenser to provide a cold barrier minimizing emissions • Primary refrigerated condensing coil to efficiently condense the bulk of the solvent vapors prior to reaching the sub-zero condenser • Captured sliding cover to eliminate drafts and help seal the unit during periods of inactivity • Internal water separator keeps all solvent within the unit at all times • Recirculating pump and filter to remove particulate and extend solvent life • Automated Hoist Systems • Stainless Steel Parts Baskets • Power-Operated Sliding Cover • Upper Enclosure System Safety Features: • Low voltage controls for operator safety • High-vapor level sensor to prevent solvent boil off • Low solvent sensor to prevent heater damage • Boil Sump over temperature alarm *Release Available - FEBRUARY 2024 |
