Original Mfg………………… Mannesmann Demag 1988
Revamped by Oto Mill…..2008, Forming and Sizing Stands
SPECIFICATIONS
Tube Diameter………………..1” – 3-1/2” (26.7mm – 88.9mm)
Wall Thickness....................0.080“ - .250“ (2.0mm – 6.3mm)
Mill Speed………………………..400 ft/min Tube Length 120 m/min (Max)
Tube Length……………………..5’ – 46’ (1.5M – 14M)
LINE CONFIGURATION

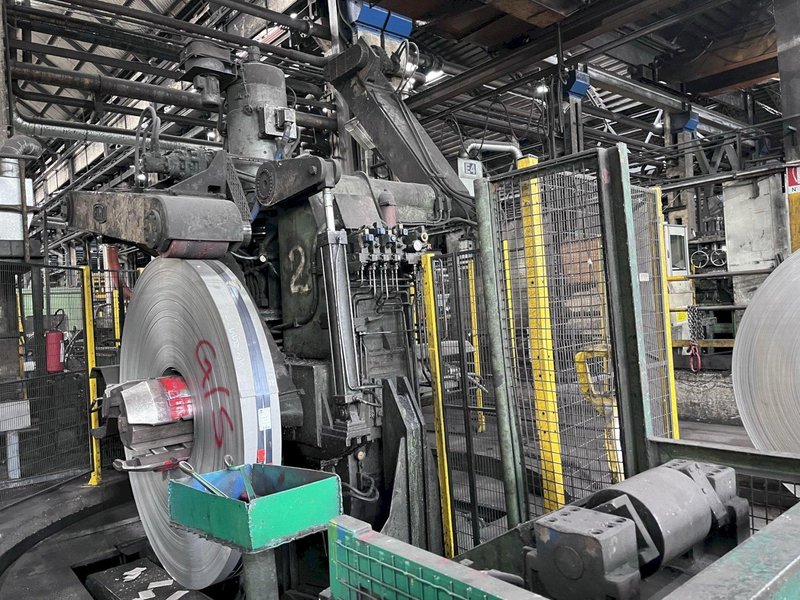

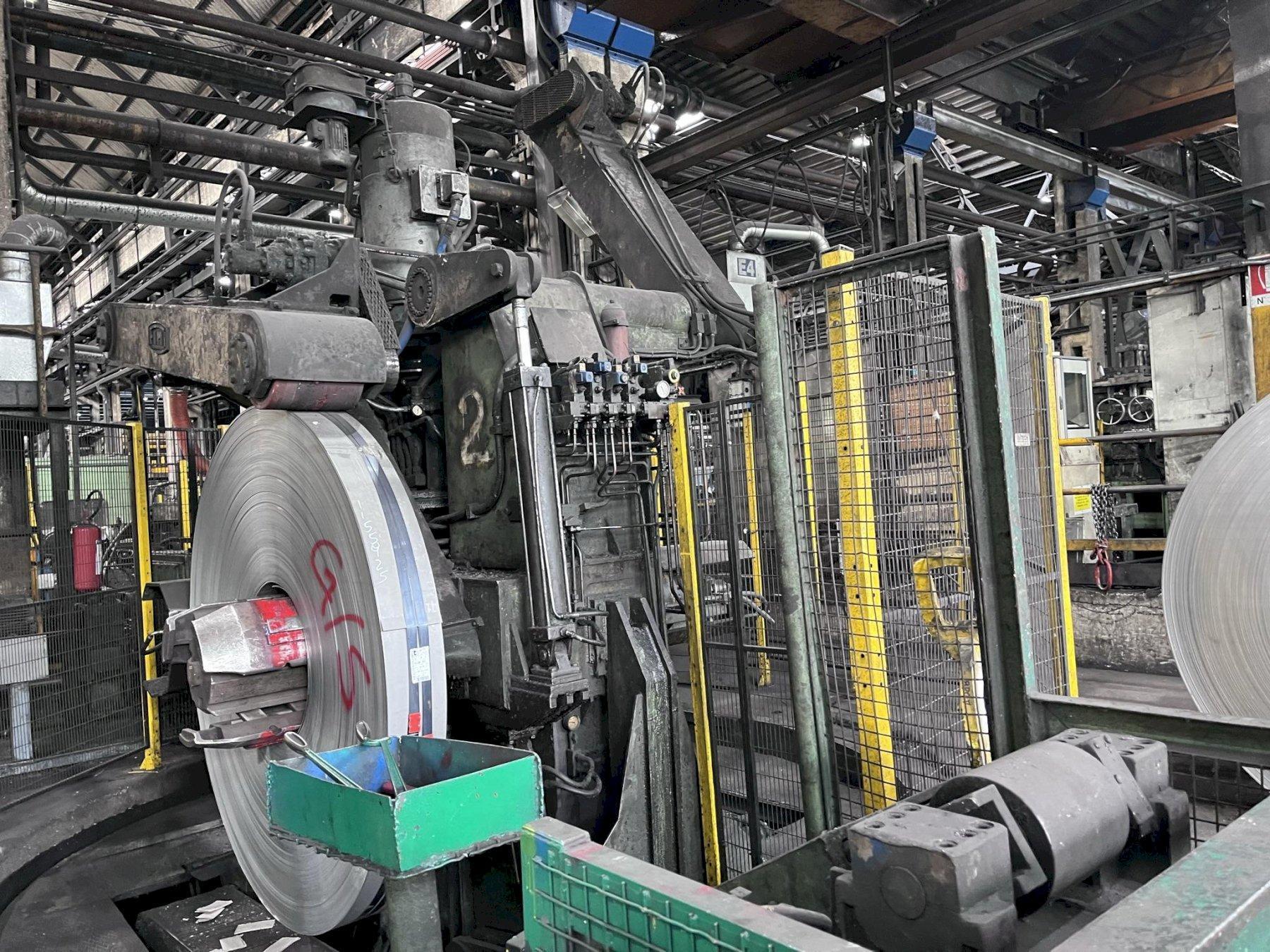

DOUBLE UNCOILER, MANDREL TYPE
Coil ID …………………….24” (610mm)
Strip Width………………3” – 11” (75mm – 280mm)
Snub Roll, Peeler Table, Crop Shear
ENTRY STRAIGHTENER
Mfg……………………………….FIMI, 7 Roll with Pinch Roll

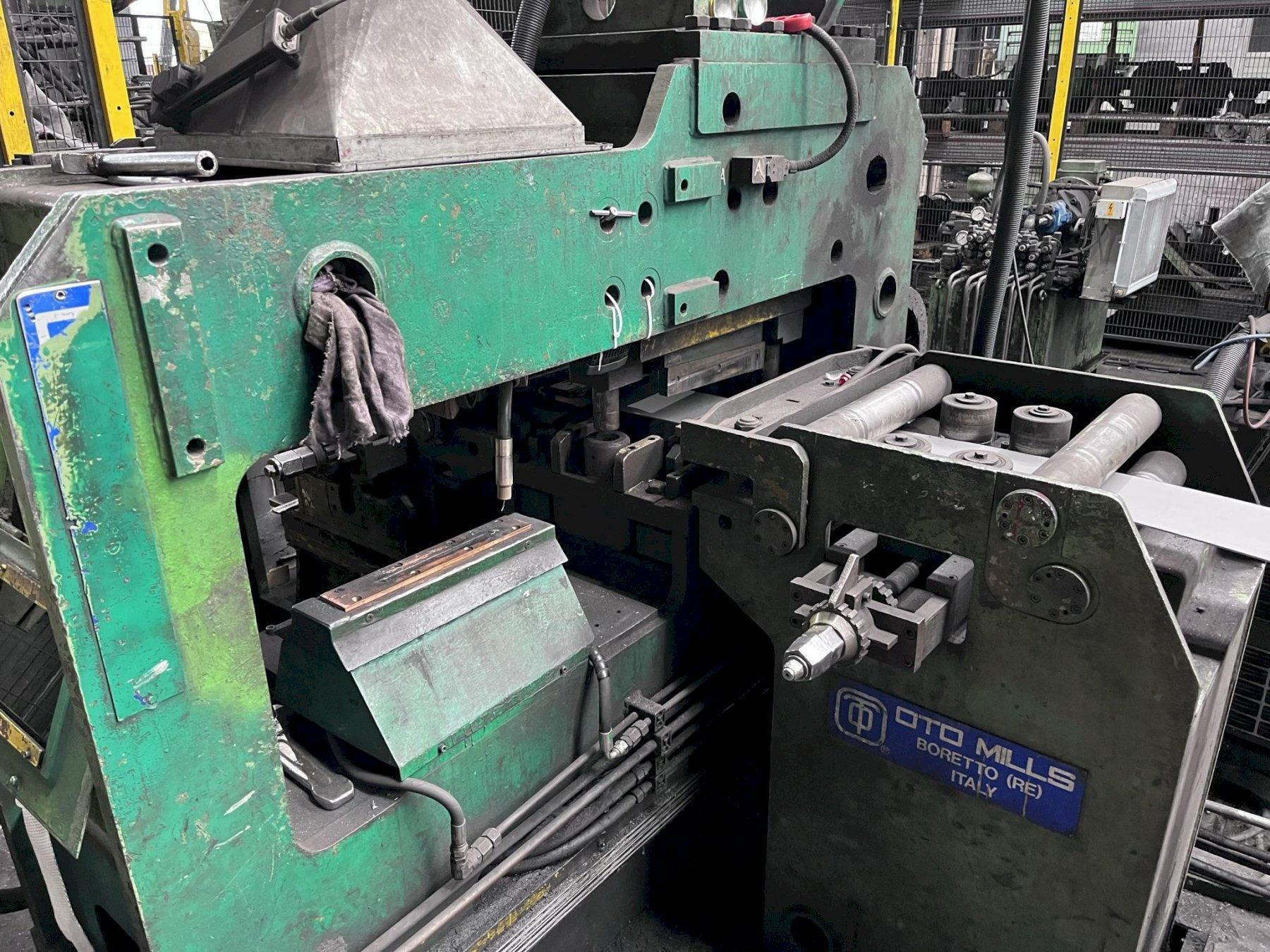

SHEAR END WELDER…………………OTO MILL manual

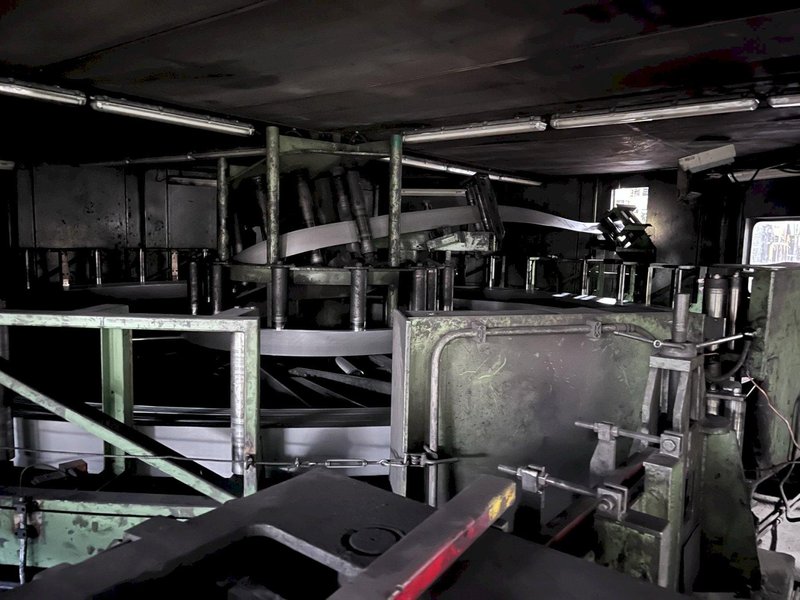

HORIZONTAL ACCUMULATOR, Outside Wrap, Inside Feed
Mfg…………………………..Voest Alpine, 1991
Strip Width………………..3” – 12” (80mm – 300mm)
Capacity……………………..0.040” – 0.275” (1mm – 7mm)
Loading Speed…………….1300 ft/min (400 m/min) (max)
Pinch Roll Motor………… 59 Kw, 1250 – 2000 rpm
Main Drive Motor………..70 Kw, 1600 – 2000 rpm

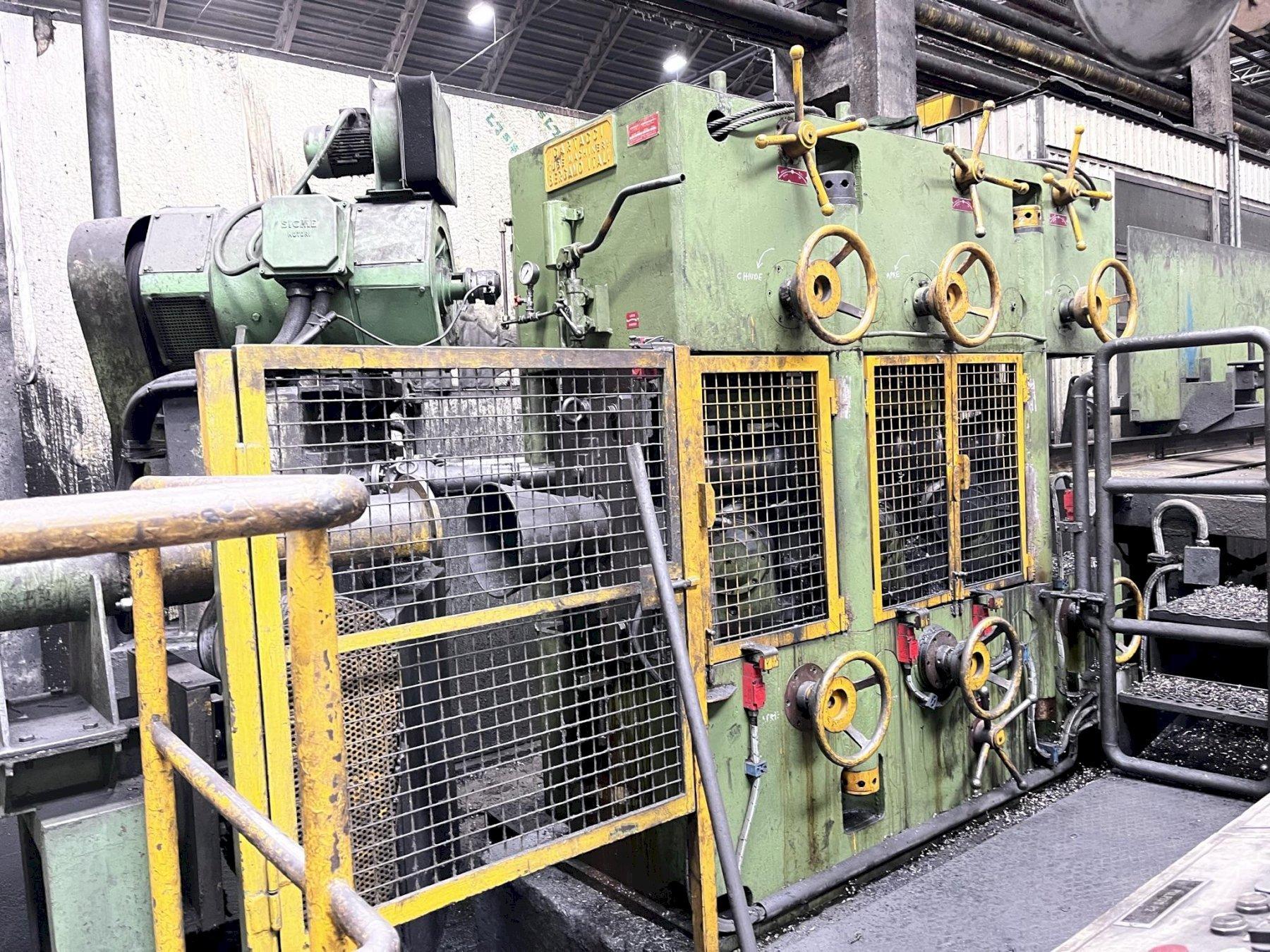

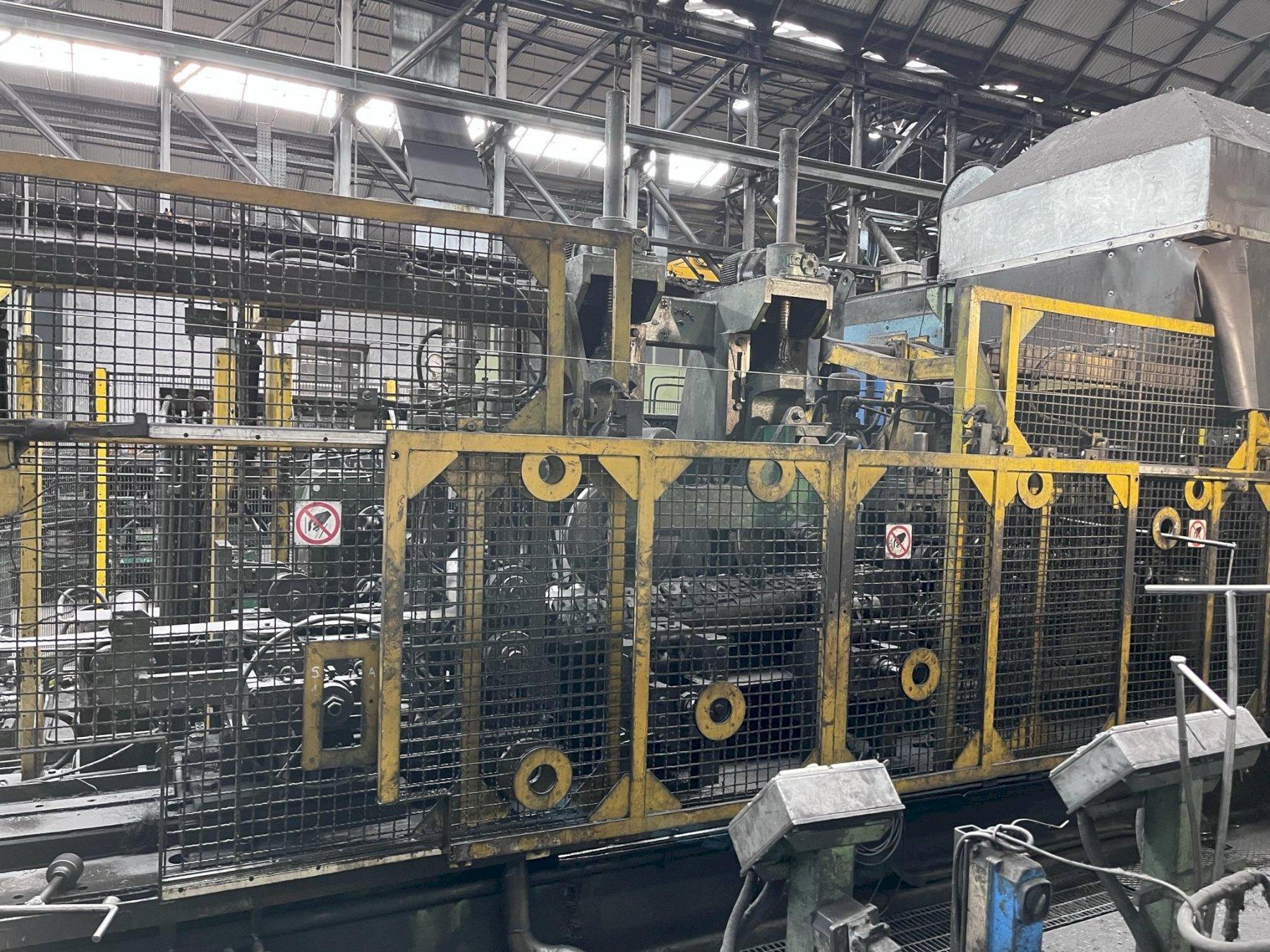

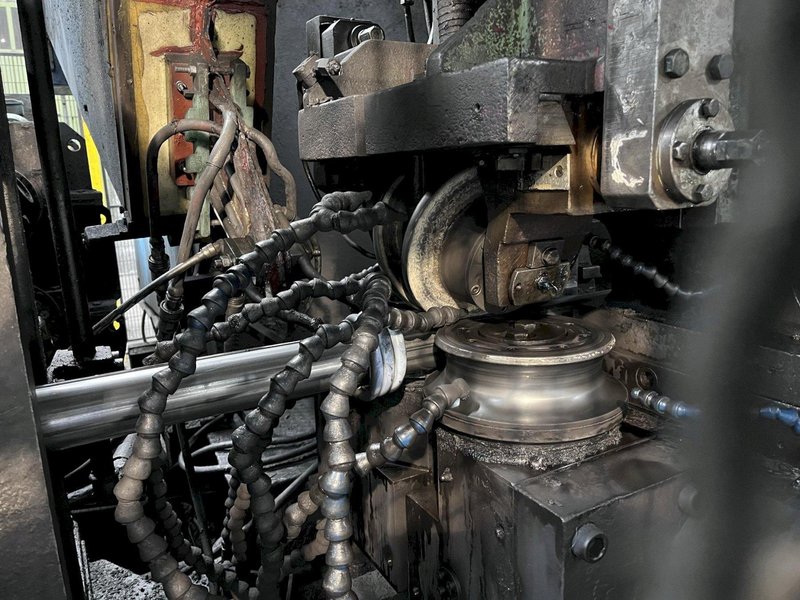

FORMING SECTION, OTO MILL STANDS
ALL STANDS MOTORIZED ADJUSTMENT
Entry Guide
1 Preforming Driven…………..Motor 41Kw, DC Volt
Linear Forming
Shaft Diameter………………3” (76mm)
FIN SECTON, OTO MILL STANDS
ALL STANDS MOTORIZED ADJUSTMENT
No of Stands………………….3 Fin Pass Stands,
Shaft Diameter…………………3” (76mm)
Motor………………………………(3) Motors, 41 Kw, DC Volt
WELDING SECTION
Welder Mfg………………………………….Thermatool, 1988
Weld Box…………………………4 Roll
ID & OD Scarfing
Power………………………………600 Kw
COOLING TUNNEL
Mfg………………………..Mannesman Demag, 1988
Length…………………….17-1/2’ (5400mm)

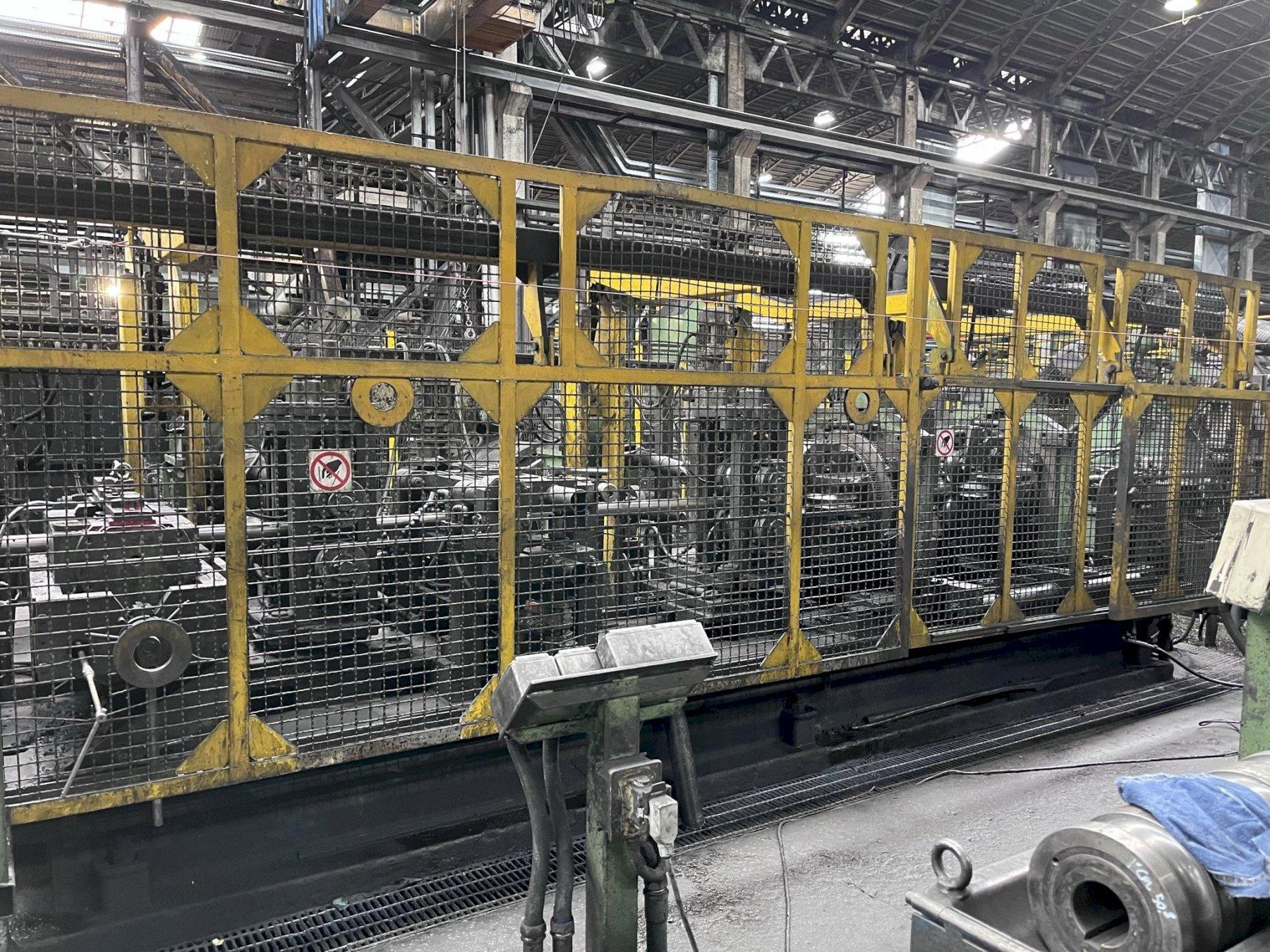

SIZING SECTION, OTO MILL STANDS
ALL STANDS MOTORIZED ADJUSTMENT
No of Vertical Stands………….2
Drive Motor……………………….41Kw, (ea) DC Volt
Diameter of shaft……………….3” (76mm)
No of Horizontal Stands……….1
Drive Motor………………………….41Kw, DC Volt
(2) OTO MILL Cutoff…………………………2

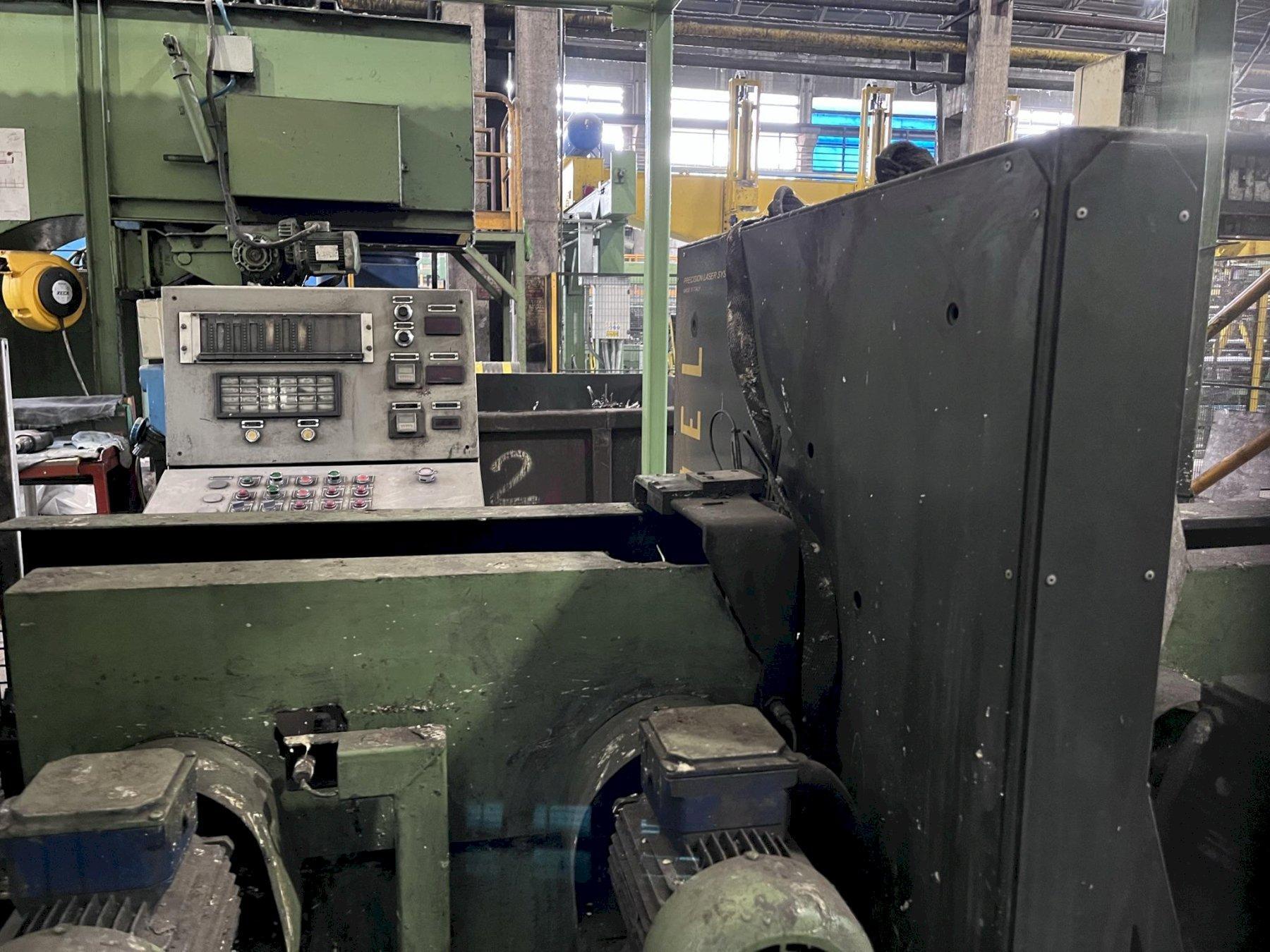

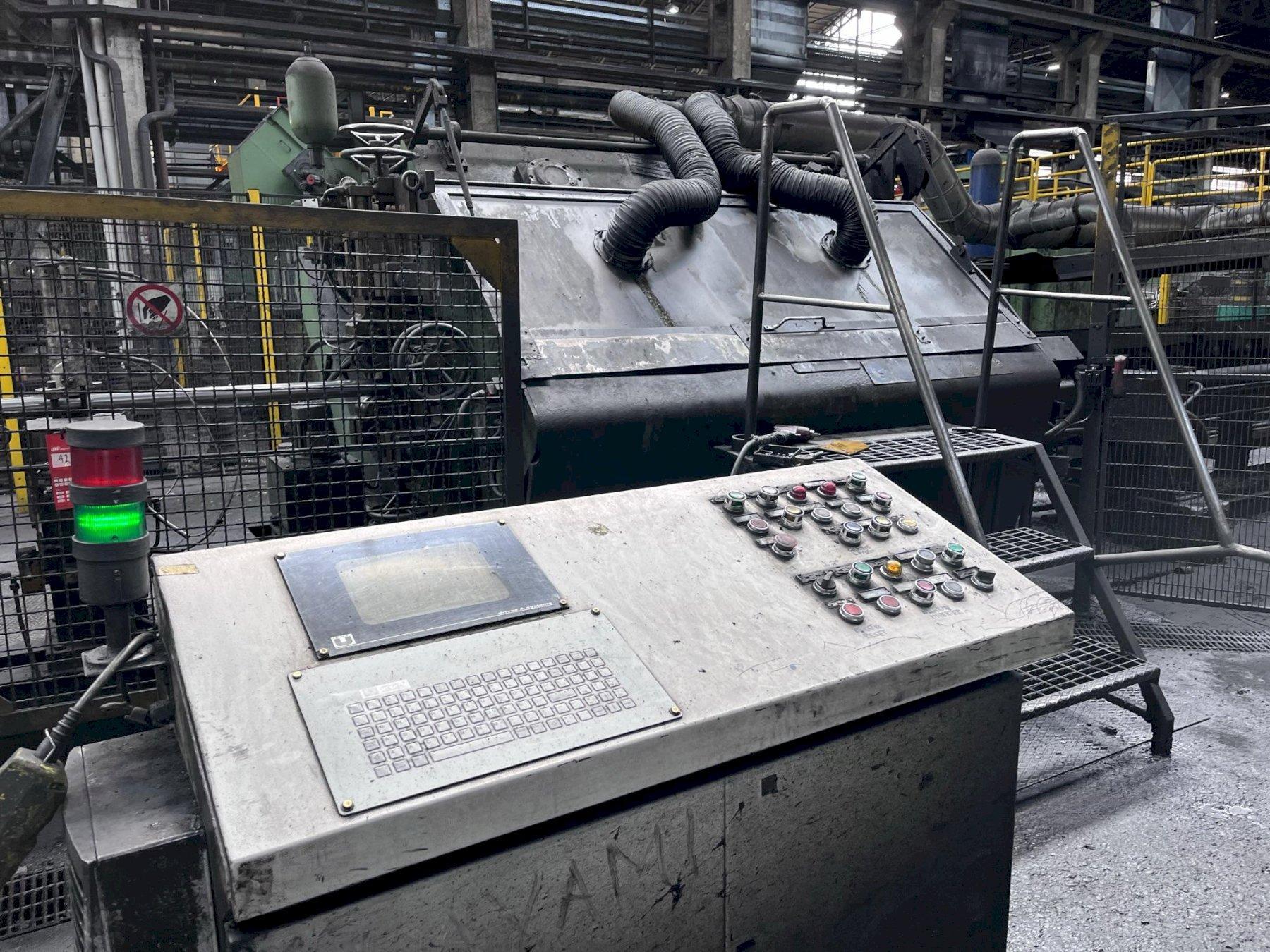

CUTOFF SECTION
THERMATOOL ALPHA HWFR-4004-49-45
DOUBLE CUT CUTOFF DIE
(2) Motors…………………………..95Kw ??
Cutoff Length………………………5’ – 46’ (1.5M – 14M)

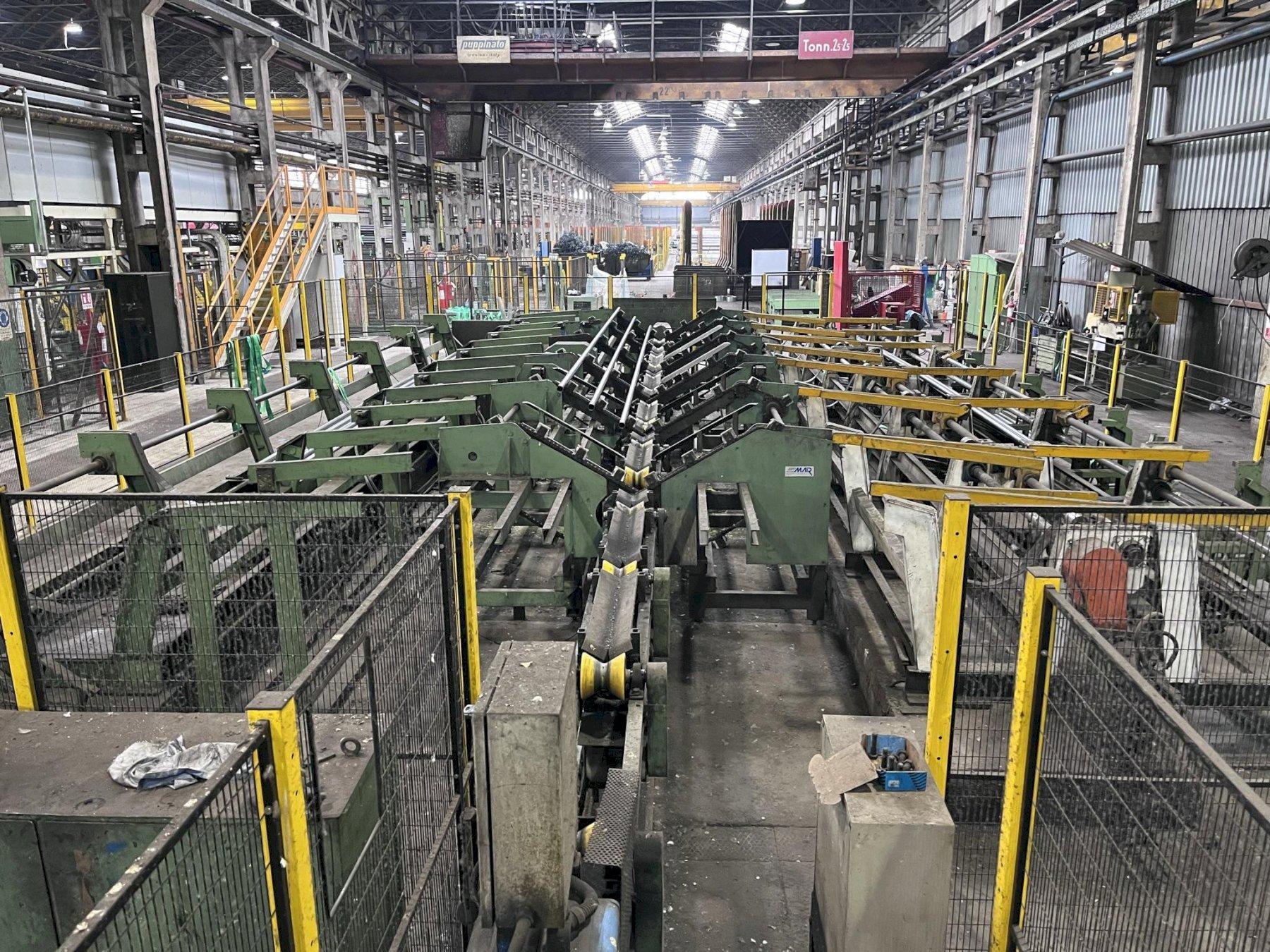

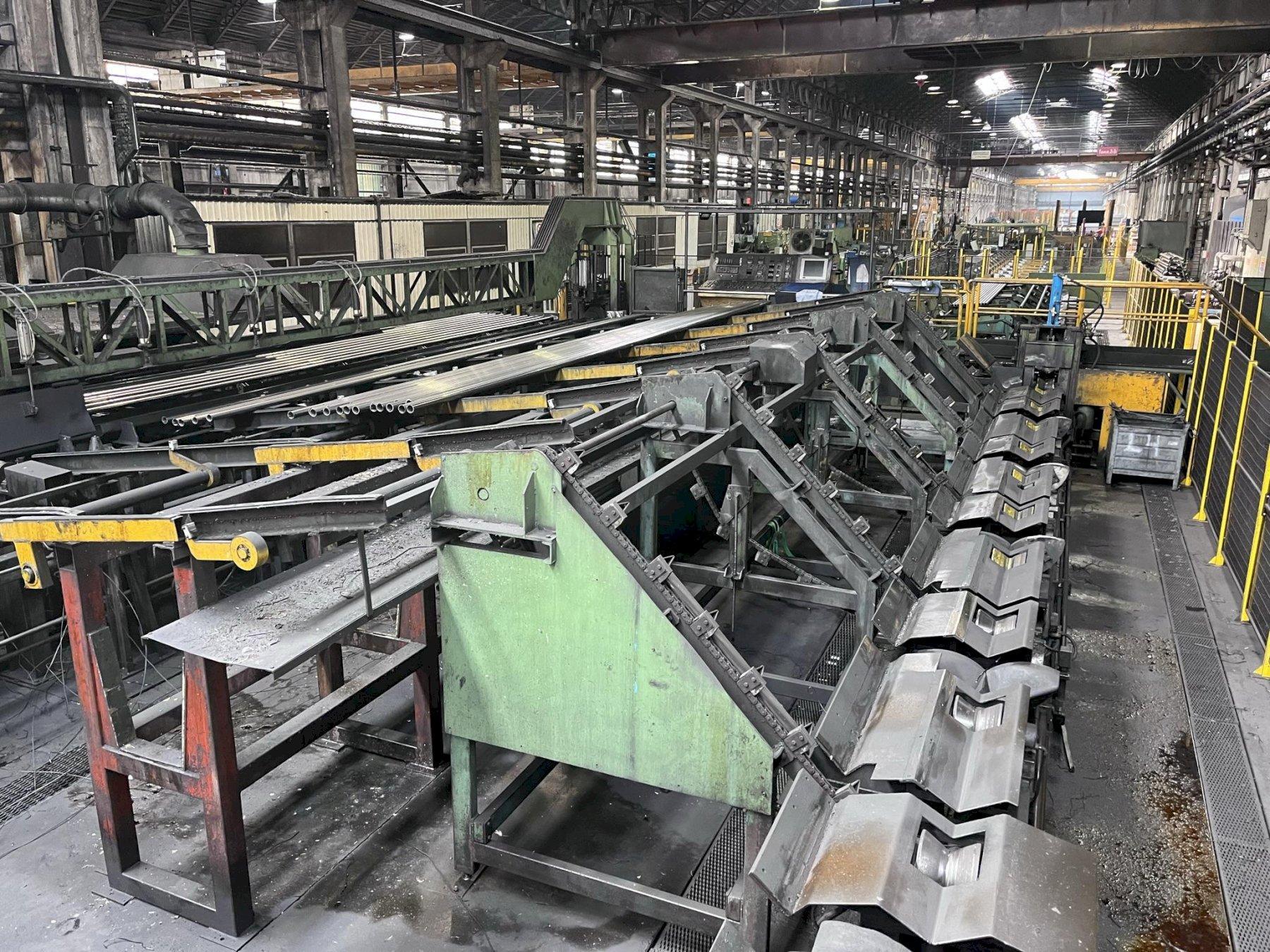

ROLLER CONVEYOR RUNOUT TRANSFER TABLE
SCARFED BEAD AIR BLAST BLOW OUT STATION
SCARFED BEAD WATER BLAST CLEAN OUT STATION
“LINDEMAN” SCRAP CHOPPER OF SCARFED BEAD
FINISHING LINE
SCARF AIR BLOW OUT STATION
SCART WATER CLEAN OUT STATION
CATRACCI 6 ROLL STRAIGHTENER
RESTELLINI CHAMFERING MACHINE, Double end
Length………………………………………….20’ – 40’ (6 – 12 M)
IN LINE TESTING
Eddy Current………………………………………….Foerster Defectomat, CND
Profile Test………………………Precision Laser Systems, Aeroel Laser Gauge, 150, 2 Axis
Demagnatizer
RUNOUT ………………………………………..14 M ?
MAIR PACKAGING LINE 1 Bundle………………………………Strapping
2 Bundles……………………………..for Further Transfer
MOTOR AND CONTROLS, SIEMENS S7 TOOLING To be provided
SPARES
All Spares, motors, fixtures, tools, dies, rolls included for complete operation.
(2) Spare Cutoff Double Cut Dies
(5) Spare Turksheads
(1) Spare Weld Box
|
