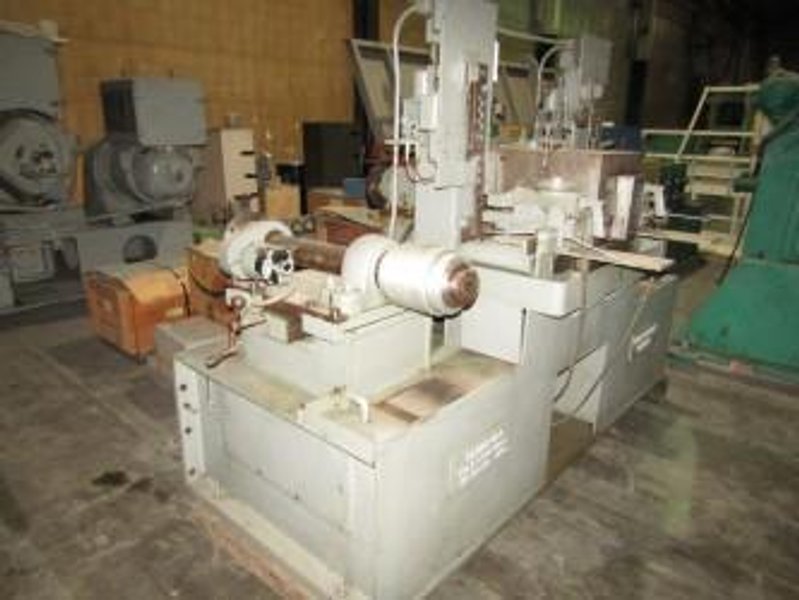

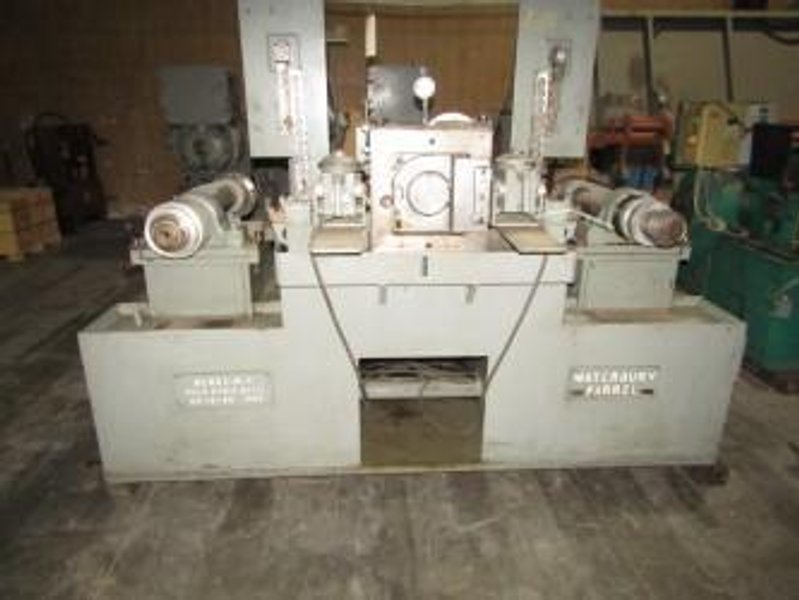

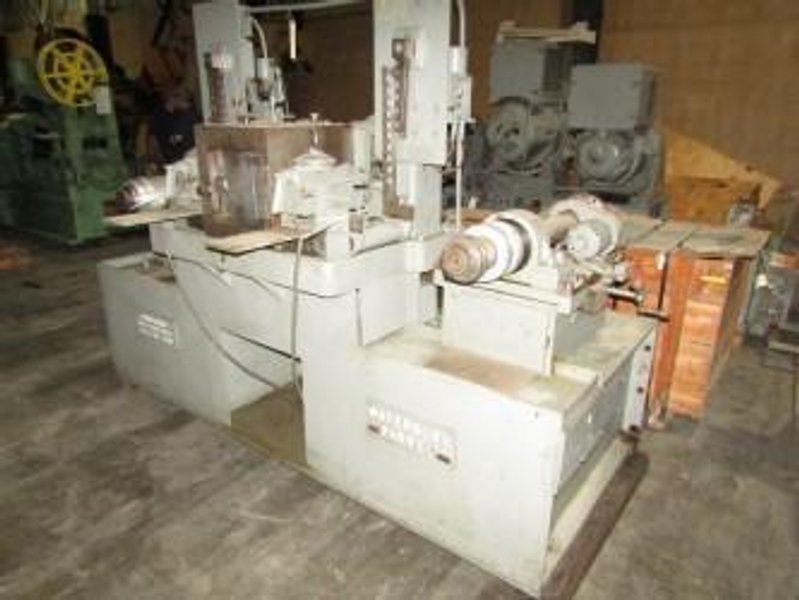

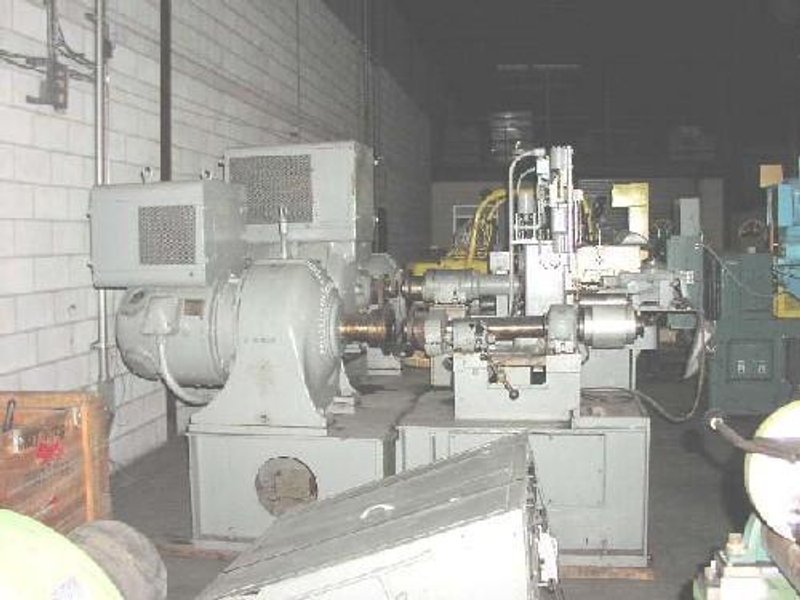

Manufacturer Waterbury Farrel Co.
Model ZR 15 - 8-1/2"
Type Saddle Type 1-2-3
Roll Size .468" (11.88mm) work roll
.937" (23.7998mm) Drive Rolls
Bearing Size: 2.537" (74.6mm)
Material Capacity
Thickness
Start .060"
Finish .001"
Width 8 1/2"
Mill Speed 150 FPM Full Tension
300 FPM Reduced Tension
Gauges - Thickness Pratt & Whitney Model 10A
Winders (2) Solid Block Type
Block Size 10" dia. x 9" face
8" dia. x 9" face
Coil Size 10" I.D. x 24" O.D.
8" I.D. x 26" O.D.
Coil Lift & Stripper Hand Strip Coil
Winder Tension 2000# max.
Electrical Data
Mill Drive Motor Reliance Type T DC, 20 HP,
230 V, 575-1200 RPM, 75 AMPS

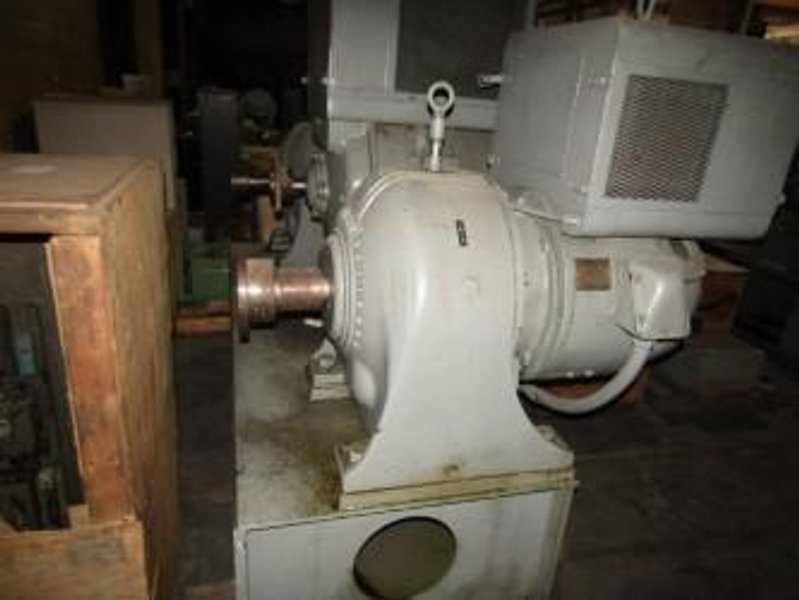

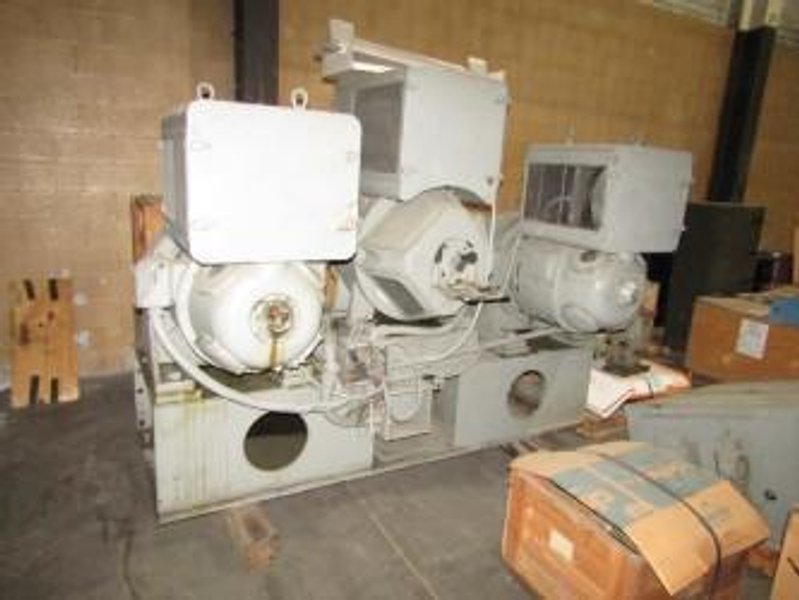

Winder Motors Reliance Gear Head Motors,
DC 20 HP, 230 V, 1150 RPM,
78 AMPS, Gear Head Modl.
3FD3X, Output RPM 75
Motors Equipped with Blowers
Approx. Mill Weight 22,000#
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
|
