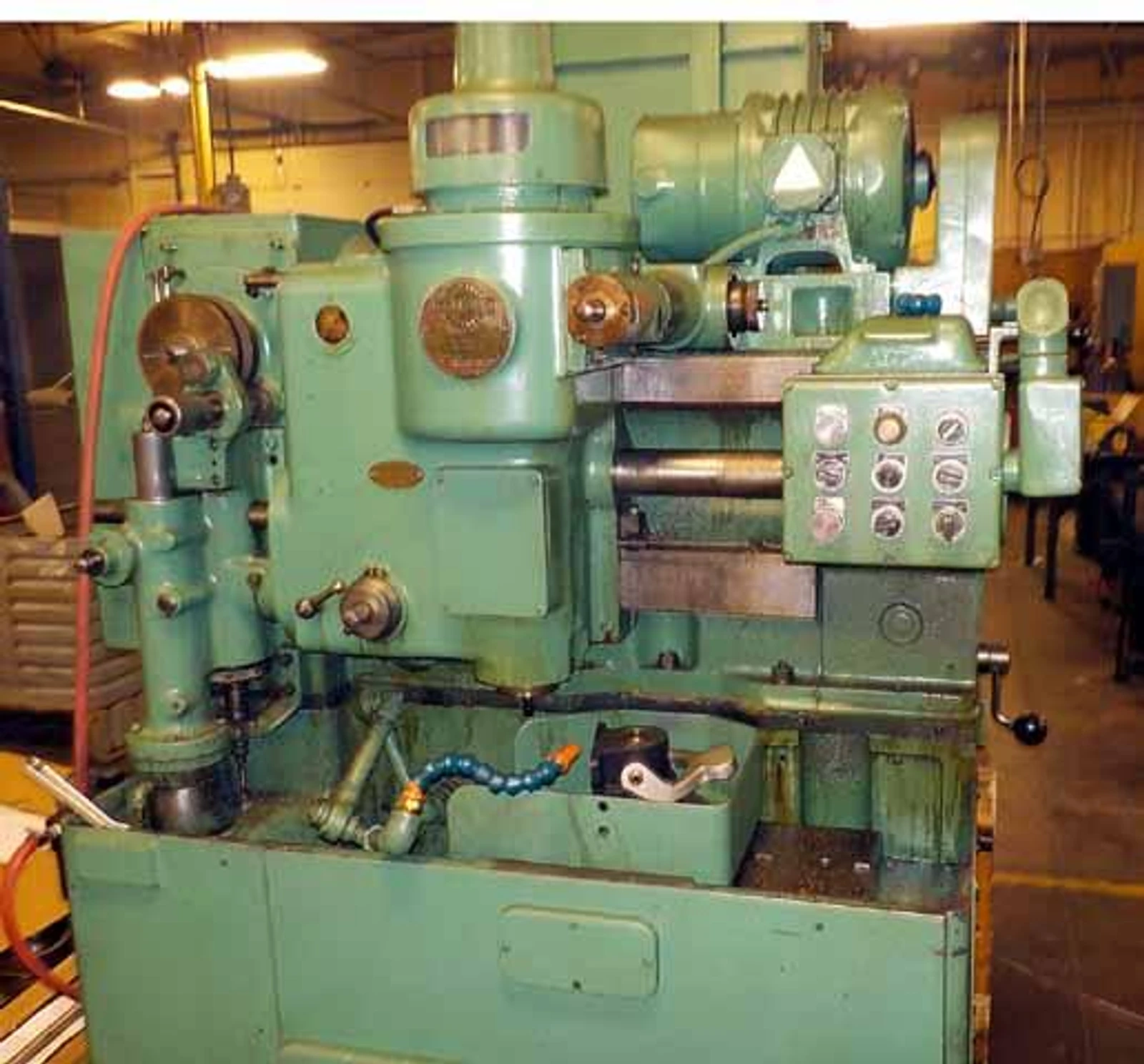

4GS, Fellows Model 4GS High Speed Gear Shaper
Brand
Category
Type
Model
4GS
Stock #
gh4gbx
Year
1957
Condition
Used
Location
Indiana
| Maximum Pitch Diameter External | 6" |
| Maximum Pitch Diameter Internal | 6" |
| Maximum Diametral Pitch Spur | 4 |
| Maximum Diametral Pitch Helical | 5 |
| Maximum Face Width External & Internal | 2" |
| Maximum Helix Angle w/Standard Guides (using 5" cutter) | 45° |
| Spindle Speed | 37-635 SPM |
| Approximate Dimensions | 56" LR x 44" FB x 82"H |
| Approximate Weight | 6,500 lbs |
|

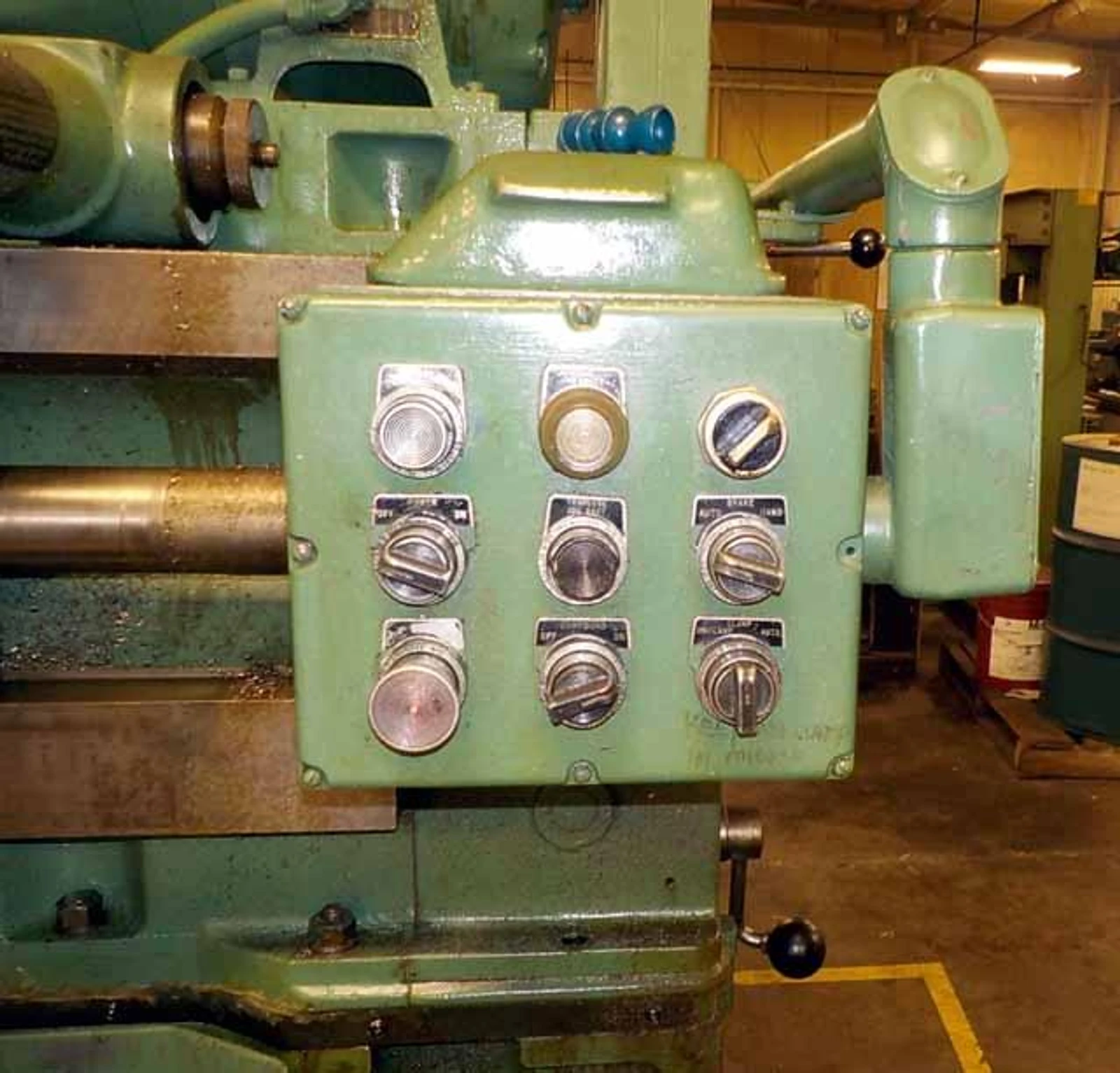

For External And Internal Spur And Helical Gears Splines Clutches Cams And Other Non-Involute Shapes. Motor Driven With 3 HP 3 Phase 60 Cycle 220 Volt Main Motor. ¾ HP Coolant Pump Motor. MD Lubrication System. Complete Electrical Controls.Straight Spur Guide. Manual Semi-Automatic And Fully Automatic Cycles. Coolant System Automatic Lubrication System. Change And Feed Gears.
This machine appears to be in good operating condition and can be inspected under power. |
|
